| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Processor socket | LGA1151 |
| Intel Core i3/i5/i7/i9 series | i3-6xxx,i3-7xxx,i5-6xxx,i5-7xxx,i7-6xxx,i7-7xxx |
| Memory | |
| Maximum internal memory | 64 GB |
| ECC |  |
| Non-ECC | |
| Supported memory clock speeds | 2133,2400 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Energy management | |
| Power source type | ATX |
| Networking | |
| Ethernet LAN | |
| Wake-on-LAN ready | |
| LAN controller | Intel® I219-V |
| Ethernet interface type | Gigabit Ethernet |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| CPU fan connector | |
| Number of COM connectors | 2 |
| ATX Power connector (24-pin) | |
| Chassis intrusion connector | |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | |
| TPM connector | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Supported storage drive interfaces | Serial ATA III |
| 12V power connector | |

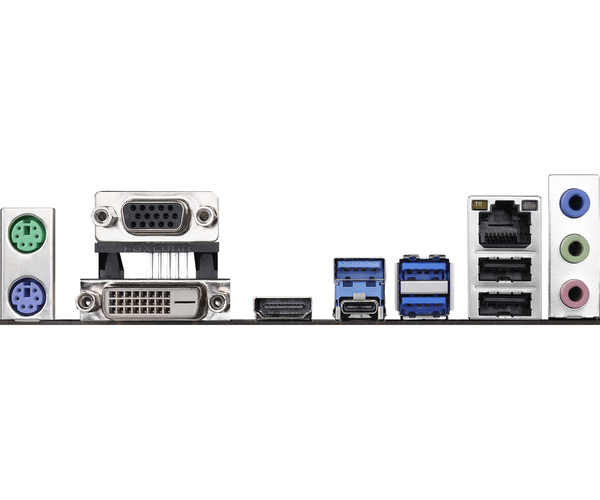

| Back panel I/O ports | |
| PS/2 ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Packaging content | |
| Cables included | SATA |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
| BIOS memory size | 16 Mbit |
| BIOS type | UEFI AMI |
| ACPI version | 6.0 |
| Clear CMOS jumper | |
| Graphics | |
| Maximum graphics card memory | 1024 MB |
| DirectX version | 12.0 |
| Processor special features | |
| Intel Extreme Memory Profile (XMP) | |
| Intel® Optane™ Memory Ready | |
| Features | |
| Certification | FCC, CE, WHQL, ErP/EuP ready |
| Motherboard chipset | Intel® B250 |
| Motherboard form factor | Micro ATX |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC892 |
| EAN | 4717677332513 |
| Warranty | 1 year |
| Source: Icecat.biz | |
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
RGB LED
Build your own colorful lighting system! Onboard LED and RGB LED header allows users to connect LED strip and create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!
PCI-E STEEL SLOTS
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Dual Ultra M.2 For SSD
Two of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
USB Type-C
A latest reversible USB Type-C design that fits the connector either way.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Creative Sound Blaster™ Cinema 3
Sound Blaster™ Cinema 3 is the latest software that is designed with SBX Pro Studio to deliver a holistic audio experience. Whether you're gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.
