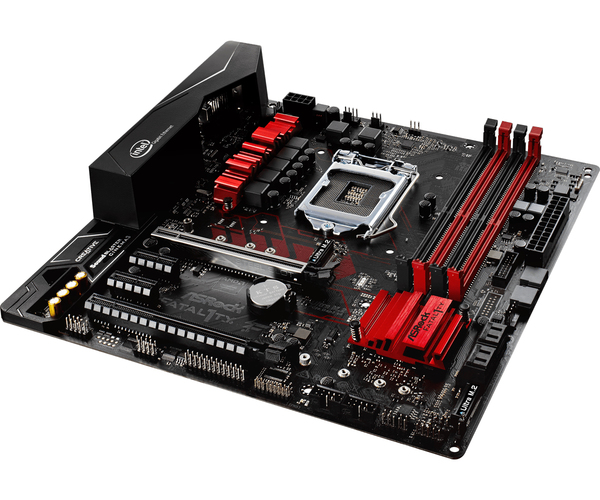

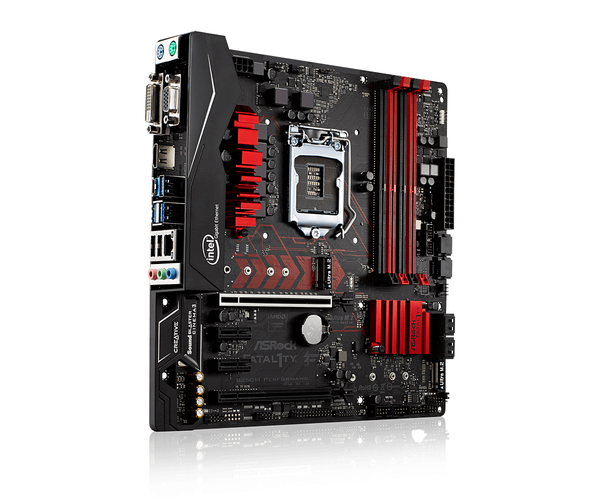

MB Intel 1151 ASRock B250M Perf. KBL

Manufacturer: ASROCK
ID: 90-MXB4R0-A0UAYZ
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Processor
Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Processor socketLGA1151
Intel Core i3/i5/i7/i9 seriesi3-6xxx,i3-7xxx,i5-6xxx,i5-7xxx,i7-6xxx,i7-7xxx
Memory
Maximum internal memory64 GB
ECCcheckmark
Non-ECCcheckmark
Supported memory clock speeds2133,2400 MHz
Supported memory typesDDR4-SDRAM
Memory channelsDual
Memory slots typeDIMM
Number of memory slots4
Weight & dimensions
Width244 mm
Depth244 mm
Energy management
Power source typeATX
Networking
Ethernet LANcheckmark
Wake-on-LAN readycheckmark
LAN controllerIntel® I219-V
Ethernet interface typeGigabit Ethernet
Internal I/O
USB 2.0 connectors2
CPU fan connectorcheckmark
Number of COM connectors2
ATX Power connector (24-pin)checkmark
Chassis intrusion connectorcheckmark
Number of chassis fan connectors2
Front panel audio connectorcheckmark
TPM connectorcheckmark
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Supported storage drive interfacesSerial ATA III
12V power connectorcheckmark
Back panel I/O ports
PS/2 ports quantity2
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports1
Headphone outputs1
Microphone incheckmark
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Packaging content
Cables includedSATA
Expansion slots
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots2
Number of M.2 (M) slots2
BIOS
BIOS memory size16 Mbit
BIOS typeUEFI AMI
ACPI version6.0
Clear CMOS jumpercheckmark
Graphics
Maximum graphics card memory1024 MB
DirectX version12.0
Processor special features
Intel Extreme Memory Profile (XMP)checkmark
Intel® Optane™ Memory Readycheckmark
Features
CertificationFCC, CE, WHQL, ErP/EuP ready
Motherboard chipsetIntel® B250
Motherboard form factorMicro ATX
Audio output channels7.1 channels
Windows operating systems supportedcheckmark
Motherboard chipset familyIntel
Audio chipRealtek ALC892
EAN4717677332513
Warranty1 year
Source: Icecat.biz

Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.

RGB LED
Build your own colorful lighting system! Onboard LED and RGB LED header allows users to connect LED strip and create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!

PCI-E STEEL SLOTS
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

Dual Ultra M.2 For SSD
Two of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.

USB Type-C
A latest reversible USB Type-C design that fits the connector either way.

Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Creative Sound Blaster™ Cinema 3
Sound Blaster™ Cinema 3 is the latest software that is designed with SBX Pro Studio to deliver a holistic audio experience. Whether you're gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.
