This product is end of life or currently not available.
Processor | |
Processor model | C3538 |
Processor manufacturer | Intel |
Processor lithography | 14 nm |
Processor family | Intel Atom |
Processor socket | BGA 1310 |
Stepping | B1 |
Processor cores | 4 |
Processor code | SR3L7 |
Processor threads | 4 |
PCI Express slots version | 3.0 |
Processor operating modes | 64-bit |
Processor boost frequency | 2.1 GHz |
Processor cache | 8 MB |
CPU configuration (max) | 1 |
Tcase | 87 °C |
Tjunction | 100 °C |
Processor frequency | 2.1 GHz |
Thermal Design Power (TDP) | 15 W |
Processor codename | Denverton |
Processor cache type | Smart Cache |
Maximum internal memory supported by processor | 256 GB |
ECC supported by processor | |
Processor package size | 34 x 28 mm |
Conflict-Free processor | |
Memory | |
Internal memory type | DDR4 |
Memory slots | 2 |
Maximum RAM supported | 32 GB |
Internal memory | 4 GB |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 4 |
eSATA ports quantity | 2 |
PCI Express x8 (Gen 3.x) slots | 1 |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
USB port | |
Weight & dimensions | |
Weight | 5.05 kg |
Height | 166 mm |
Width | 282 mm |
Depth | 243 mm |
Energy management | |
Power consumption (typical) | 56.86 W |
Number of power supply units | 1 |
Power consumption (sleep) | 25.76 W |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power supply location | Built-in |
Power supply unit (PSU) capacity | 250 W |
Power consumption (HDD standby) | 25.76 W |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 0 - 40 °C |
Networking | |
Supported network protocols | CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN) |
Ethernet LAN | |
Wake-on-LAN ready | |
Wi-Fi | |
Link aggregation | |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Storage | |
RAID levels | 0, 1, 5, 6, 10, JBOD |
Supported file systems | BTRFS, Fat, HFS+, NTFS, ext3, ext4 |
RAID support | |
Number of storage drives supported | 6 |
Storage drive sizes supported | 2.5,3.5" |
Storage drives installed | |
Maximum supported storage capacity | 72 TB |
Installed storage drive type | |
Hot-swap drive bays | |
Supported storage drive interfaces | Serial ATA |
Certificates | |
Certification | FCC CE BSMI EAC VCCI CCC RCM |
Operating system/software | |
Mac compatibility | |
Operating system installed | DiskStation Manager |
Windows operating systems supported | Windows 10, Windows 7 |
Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra |
Server operating systems supported | Windows Server 2016 |
Packaging content | |
Cables included | AC, LAN (RJ-45) |
Quick installation guide | |
Other features | |
Processor ARK ID | 97929 |
Design | |
Chassis type | Desktop |
Cable lock slot | |
LED indicators | |
Product colour | Black |
Number of fans | 2 fan(s) |
Cooling type | Active |
Fan diameter | 9.2 cm |
Cable lock slot type | Kensington |
Processor special features | |
Intel® Hyper Threading Technology (Intel® HT Technology) | |
Intel® Turbo Boost Technology | |
Intel® AES New Instructions (Intel® AES-NI) | |
Execute Disable Bit | |
Intel VT-x with Extended Page Tables (EPT) | |
Embedded options available | |
Intel® Secure Key | |
Intel® OS Guard | |
Intel QuickAssist Technology | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Maximum number of PCI Express lanes | 12 |
Intel Secure Boot | |
Intel Secure Key Technology version | 1.00 |
Intel Secure Boot Technology version | 1.00 |
Intel Virtualization Technology (VT-x) | |
Memory types supported by processor | DDR4-SDRAM |
Memory channels supported by processor | Dual |
Performance | |
Type | NAS |
Security algorithms | HTTPS, SSL/TLS |
Browser supported | Chrome, Firefox, Internet Explorer 10+, Safari 10+ |
Number of users | 2048 user(s) |
Noise level | 23.7 dB |
Web-based management | |
Access Control List (ACL) | |
Reset button | |
Multilingual support | |
On/off switch | |
S.M.A.R.T. support | |
Device class | Small & Medium Business |
Backup function | |
Backup features | Cloud, iSCSI LUN |
System log | |
EAN | 4711174722976 |
Warranty | 3 years |
Source: Icecat.biz |
User-oriented server with high-speed computing

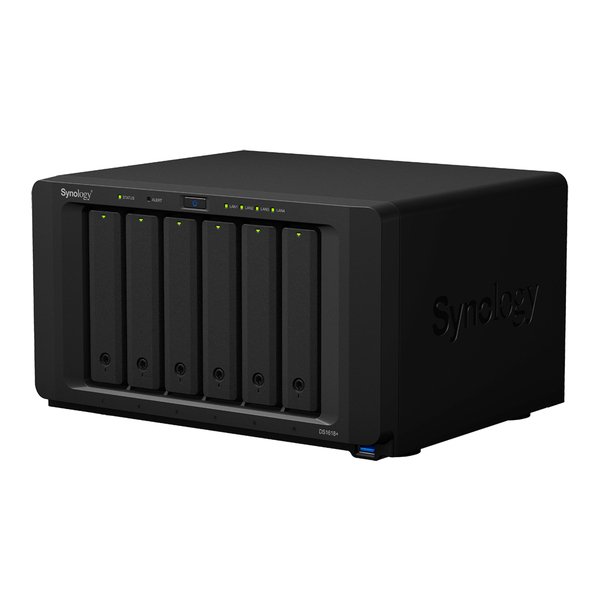

DS1618+ is a 6-bay NAS that provides storage scalability perfect for tech enthusiasts and small- to medium-sized businesses by effortlessly handling workloads. Further boost storage performance with the optional M.2 SSD cache or enhance network speeds by adding a 10 GbE NIC.
Supercharge your storage with speedy performance
DS1618+ comes with a PCIe expansion slot to support add-in cards. Install a dual M.2 SSD card for high-IOPS system caching or a 10GbE NIC for ultra-fast data transmission.
Engineered for reliability, backed by Synology
DS1618+ is designed to reliably store your data and is backed by Synology's three-year hardware warranty. An optional two-year extended warranty is available in select regions for up to five years of coverage.
Ultimate file management and sharing
File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, DS1618+ supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.
Real-time collaboration on your private cloud
Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.
Ultimate Backup Solution
DS1618+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Btrfs: Next generation storage efficiency
Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses:
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File or folder level data restoration makes data recovery fast and flexible
- Automatic file self-healing detects and recovers corrupted files without user intervention
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
