Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Weight & dimensions | |
| Weight | 955 g |
| Height | 169 mm |
| Width | 109 mm |
| Depth | 139 mm |
| Heatsink dimensions (W x D x H) | 59 x 133 x 158 mm |
| Heatsink weight | 670 g |
| Fan weight | 142 g |
| Energy management | |
| Power consumption (typical) | 2.52 W |
| Rated voltage | 12 V |
| Other features | |
| Current | 0.21 A |
| Performance | |
| Type | Cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3),LGA 1151 (Socket H4),LGA 1155 (Socket H2),LGA 1156 (Socket H),LGA 1366 (Socket B),LGA 2011-v3 (Socket R),LGA 2066,LGA 775 (Socket T),Socket 754,Socket 939,Socket AM2,Socket AM2+,Socket AM3,Socket AM3+,Socket AM4,Socket FM1,Socket FM2,Socket FM2+ |
| Suitable for | Processor |
| Maximum airflow | 53 cfm |
| Minimum airflow (imperial) | 14 cfm |
| Minimum air pressure | 0.2 mmH2O |
| Maximum air pressure | 1.93 mmH2O |
| Noise level (low speed) | 12 dB |
| Noise level (high speed) | 31 dB |
| Fan connector | 4-pin |
| Heat pipes diameter | 1 cm |
| Thermal Design Power (TDP) | 200 W |
| Rotational speed (max) | 1700 RPM |
| Rotational speed (min) | 500 RPM |
| Bearing type | Ball bearing |
| Fins material | Aluminium |
| Mean time to failure (MTTF) | 70000 h |
| EAN | 4719331550127 |
| Source: Icecat.biz | |

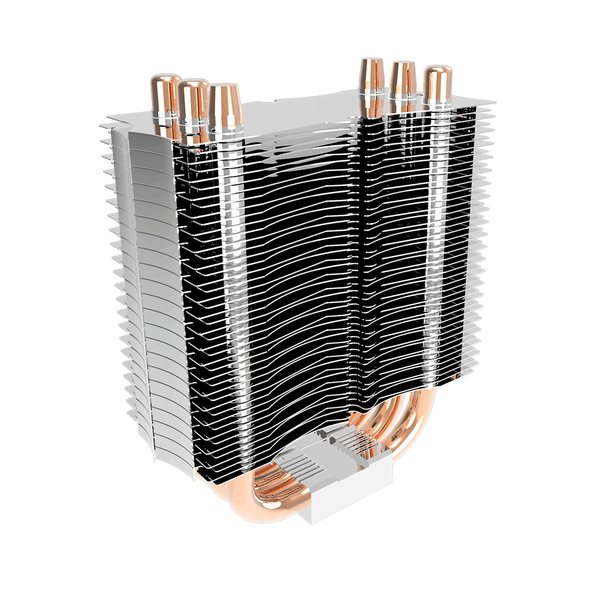

Attached 2 big 120mm PWM fans to each side of the heat-sink, will efficiently dissipate the heat from the CPU at a very low noise level. PWM function provides the accurate and efficient fan speed for the CPU, to optimize the noise reduction and the thermal performance. GIGABYTE patented blade fan design increases the airflow by 23%. And moreover, the 2 ball bearing structure will provide longer and more stable lifespan.
The 120mm dynamic adjusting fan provides the silent operation. The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow by 23% over the traditional fans.
The double ball bearing structure has better heat endurance and efficiency than sleeve structure. Hence it will provide longer life time.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through AORUS Graphics Engine.
- RGB fusion – 16.7M Customizable Color Lighting
- Dual 120mm 2 ball bearing (PWM) fans
- 3*10mm high performance copper heat-pipes
- Heat-Pipe direct touch technology
