Gigabyte B450M Aorus mATX - motherboard

Manufacturer: GIGABYTE
ID: B450 AORUS M
21390€ Show VAT 0% Show VAT 24%
Estimated delivery: 13.04 - 18.04
On order with ETA after 11.04.2024
Select your store
On order with ETA after 11.04.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 11.04.2024 Open today: 09:00 - 17:00 About this store
On order with ETA after 11.04.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 11.04.2024 Open today: 10:00 - 17:00 About this store
On order with ETA after 11.04.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 11.04.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 11.04.2024 Open today: 10:00 - 18:00 About this store
Multitronic warehouse store
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Mariehamn
iTronic Vaasa
Specifications
Description
Store availability
Delivery
Price development
Processor
Processor manufacturerAMD
Maximum number of SMP processors1
Compatible processor seriesAMD Athlon, AMD Ryzen 3, 2nd Generation AMD Ryzen™ 3, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, AMD Ryzen 7, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Processor socketAM4
Memory
Memory slots4
Maximum internal memory64 GB
ECCcheckmark
Non-ECCcheckmark
Supported memory clock speeds2133,2400,2667,2933,3200 MHz
Supported memory typesDDR4
Memory channelsDual-channel
Unbuffered memorycheckmark
Memory slots typeDIMM
Number of memory slots4
Weight & dimensions
Width244 mm
Depth244 mm
Networking
Ethernet LANcheckmark
Ethernet interface typeGigabit Ethernet
Internal I/O
USB 2.0 connectors2
S/PDIF out connectorcheckmark
CPU fan connectorcheckmark
ATX Power connector (24-pin)checkmark
Number of chassis fan connectors2
Front panel audio connectorcheckmark
TPM connectorcheckmark
EPS power connector (8-pin)checkmark
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Parallel connectorcheckmark
Serial port headers1
Front panel connectorcheckmark

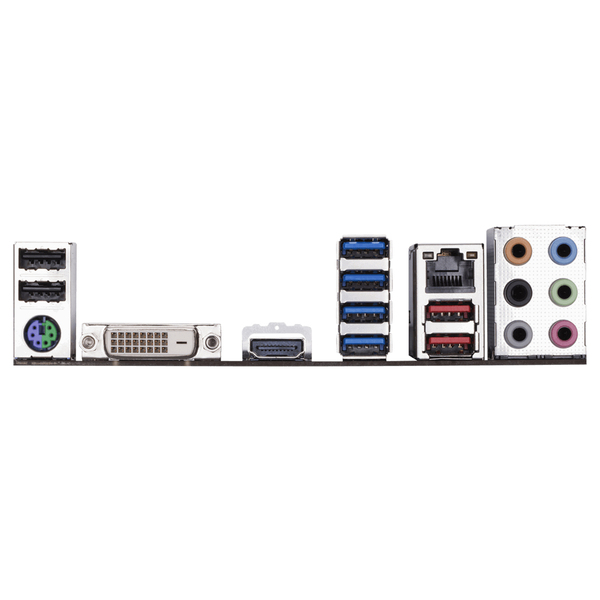

Back panel I/O ports
PS/2 ports quantity1
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
Headphone outputs1
Microphone incheckmark
DVI-D ports quantity1
HDMI ports quantity1
USB 3.0 (3.1 Gen 1) Type-A ports quantity4
USB 3.1 (3.1 Gen 2) Type-A ports quantity2
Storage controllers
RAID levels0,1,10
Number of HDDs supported6
Supported storage drive typesHDD & SSD
Packaging content
Bundled softwareNorton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Cables includedSATA
Manualcheckmark
Drivers includedcheckmark
Expansion slots
PCI Express x1 slots1
PCI Express x16 (Gen 3.x) slots2
Number of M.2 (M) slots1
BIOS
BIOS memory size32 Mbit
BIOS typeUEFI AMI
ACPI version5.0
Clear CMOS jumpercheckmark
Desktop Management Interface (DMI) version2.7
Other features
HDD size2.5"
Quick installation guidecheckmark
Graphics
Maximum graphics card memory16384 MB
Maximum resolution4096 x 2160 pixels
Parallel processing technology supportCrossFire
HDCPcheckmark
Processor special features
Intel Extreme Memory Profile (XMP)checkmark
Features
Motherboard chipsetAMD B450
Motherboard form factorMicro ATX
Audio output channels7.1 channels
Cooling typePassive
PC health monitoringFan, Temperature, Voltage
Windows operating systems supportedWindows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 7 Enterprise x64,Windows 7 Home Basic x64,Windows 7 Home Premium x64,Windows 7 Professional x64,Windows 7 Starter x64,Windows 7 Ultimate x64,Windows 7 x64
Power source typeATX
Motherboard chipset familyAMD
Component forPC
Audio chipRealtek ALC892
EAN5706998874160
Warranty1 year

AMD introduces the latest Ryzen™ 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400-series motherboards perfectly fit the latest AMD Ryzen™ 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen™ 2000 series processors.

AMD StoreMI technology
GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:
- Making the PC experience fast, smooth and easy
- Optimizing computer responsiveness from system boot to application launch
- Offering SSD performance with HDD capacity at an affordable cost
- Quickly accessing key files by automatically learning users' computing behaviors

Hybrid Digital PWM + Lower RDS(on) MOSFETs
AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS(on) MOSFETs design to support the 2nd Gen AMD Ryzen™ processors by offering incredible precision in developing power of the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Fast Onboard Storage with NVMe
PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
GIGABYTE' M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.

Native USB 3.1 Gen2
AMD 400-series chipset provides native USB 3.1 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.1 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and USB3.1 Gen1.

Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

RGB Fusion with Digital LEDs Support
With AORUS Motherboards, RGB Fusion is even better with Digital LEDs. RGB Fusion offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.

Supports RGBW & UV Light Strips
Independently Programmable Onboard Pin Header for RGBW/UV LED Strips
Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colors.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Fan Curve
Customize fan curves based on specific temperatures with the intuitive graphical UI.

Interoperable Sensors and Fans
Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Solid Pin Power Connectors
Make Good Connection and Significantly Lower the Wires Capacity
AORUS 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

TriDef ® SmartCam | Custom Stream Modding
To facilitate being the full streaming solution each AORUS motherboard includes TriDef ® SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.

Save the power as easy as one click
CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel ® HD Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
