Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
Floppy disk drive connector | ![]() |
Motherboard power connector | 20+4 pin ATX |
Floppy drive power connector | 1 |
Number of SATA power connectors | 8 |
Peripheral (Molex) power connectors (4-pin) | 6 |
ATX power connector (20+4 pin) | ![]() |
CPU power connector (4+4 pin) | ![]() |
PCI Express power connectors (6+2 pin) | 4 |
Motherboard power cable length | 61 cm |
SATA power cable length | 760 mm |
CPU power cable length | 65 cm |
Peripheral (Molex) power cable length | 760 mm |
PCI Express power cable length | 72 cm |
Weight & dimensions | |
Weight | 2.21 kg |
Height | 86 mm |
Width | 150 mm |
Depth | 160 mm |
Energy management | |
Input current | 6 - 12 A |
Nominal power | 850W |
Efficiency | 90% |
Hold time | 14 ms |
Power protection features | Over power,Over voltage,Short circuit,Under voltage,Overheating |
Power Factor Correction (PFC) type | Active |

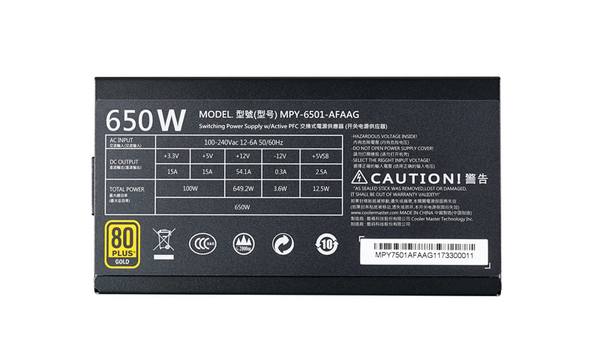

Combined power (+3.3V) | 100 W |
Combined power (+12V) | 649.2 W |
Combined power (+5V) | 100 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 12.5 W |
Max output current (+3.3V) | 15 A |
Max output current (+12V) | 54.1 A |
Max output current (+5V) | 15 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 2.5 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 650 W |
Power Good signal delay range | 100 - 500 ms |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 °C |
Packaging data | |
Package weight | 2.51 kg |
Package depth | 310 mm |
Package height | 120 mm |
Package width | 194 mm |
Design | |
Product colour | Black |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Performance | |
Certification | CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
Mean time between failures (MTBF) | 100000 h |
Purpose | PC |
Bearing technology | LDB |
ATX version | 2.31 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Logistics data | |
Products per pallet | 16 pc(s) |
Master (outer) case height | 22 cm |
Master (outer) case width | 32.5 cm |
Master (outer) case length | 62 cm |
Products per master (outer) case | 5 pc(s) |
EAN | 4719512069745 |

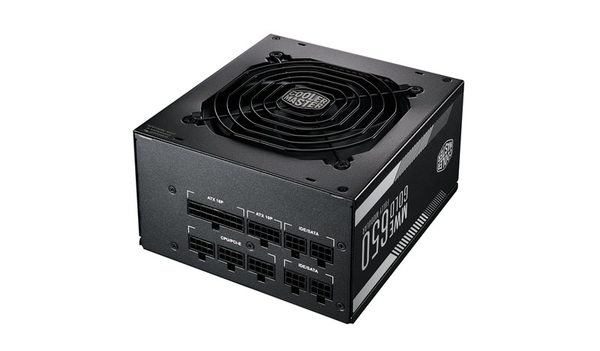

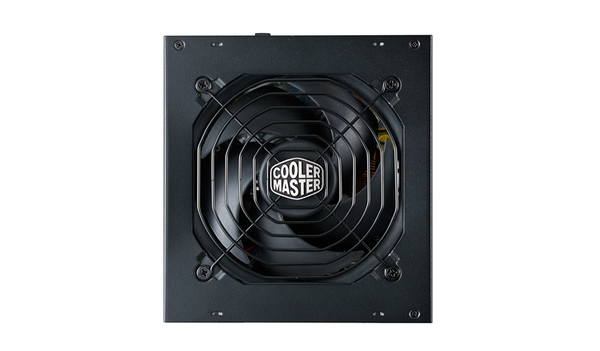

MWE GOLD 650 FULLY MODULAR
Behold the 80 Plus Gold rated, fully modular MWE Gold. This power supply unit delivers consistent 90% efficiency, low temperatures, and quiet operation. High quality, heat resistant components have been used to achieve gold level performance at temperatures up to 45°C. The Silencio fan and exclusive LDB bearing provides nearly silent cooling at no loss to system performance and a longer lifespan. Flat cables improve airflow by reducing cable bulk and a single +12V line ensures all components are fed the same stable output regardless of which cable you use. Be bold, power with gold.

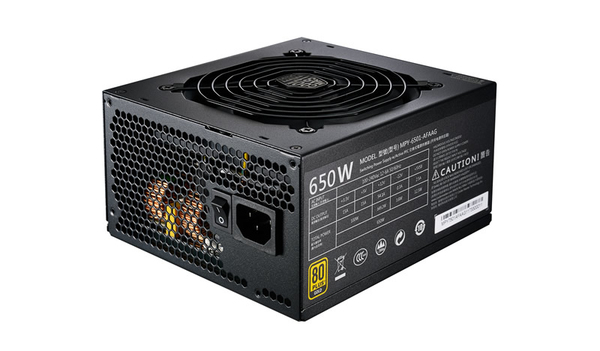

80 PLUS GOLD CERTIFIED
This certification guarantees a typical efficiency of 90% under normal operating conditions.

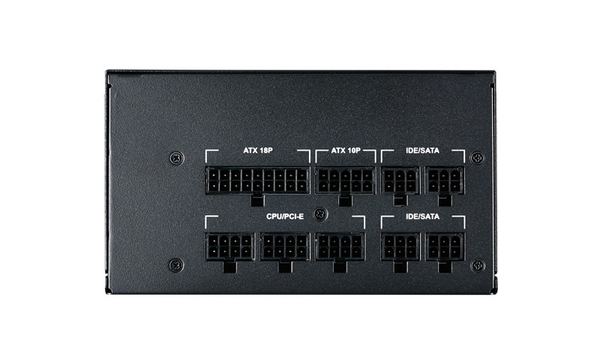

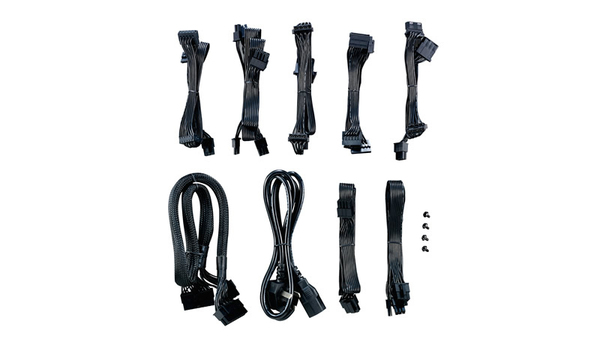

FULLY MODULAR CABLES
Fully customizable cabling reduces clutter, increases airflow, and improves overall thermal performance.

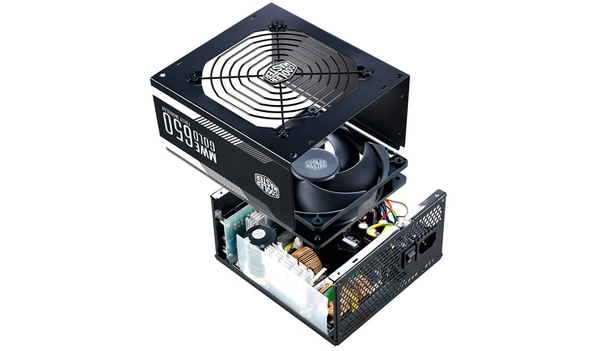

ADVANCED CIRCUITRY
The MWE Gold's full-bridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable voltage outputs.
5 YEAR WARRANTY
This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.

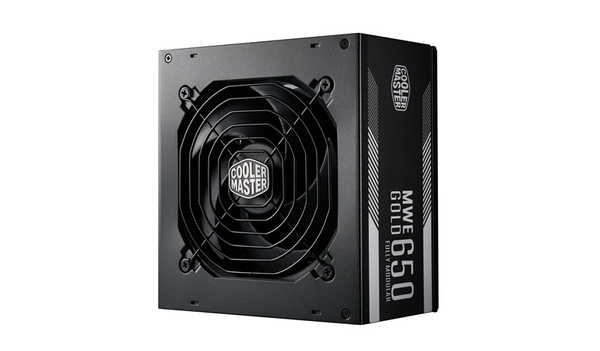

SEALED LDB FAN BEARING
The sealed LDB bearing has been combined with Silencio fan technology for quiet cooling
with a longer lifespan.
PSU Calculator
Need help choosing the right power supply for your system? Try out our easy to use, comprehensive PSU calculator.
