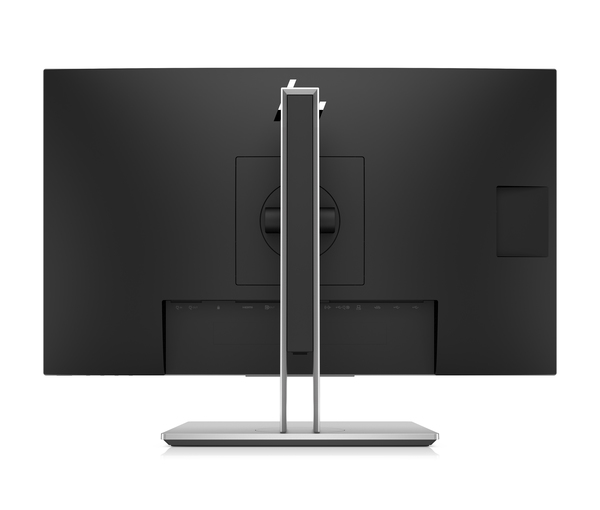

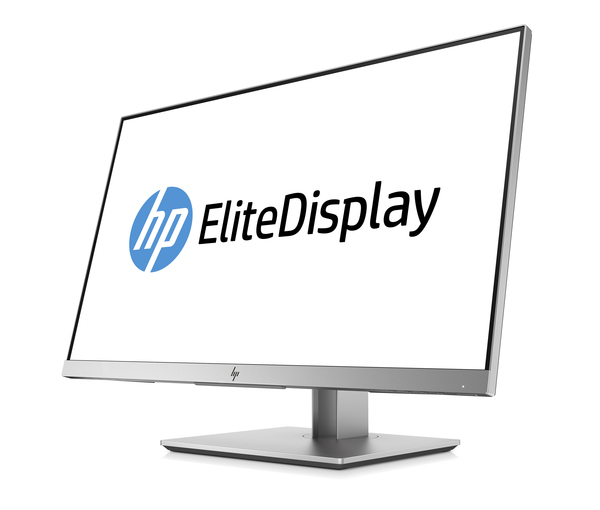

HP 23.8" EliteDisplay E243d, Full HD, IPS - monitor

Manufacturer: HP INC
ID: 1TJ76AA#ABB
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Display
Pixel pitch0.2745 x 0.2745 mm
Contrast ratio (typical)1000:1
Horizontal scan range30 - 80 kHz
Viewing angle, horizontal178°
Viewing angle, vertical178°
Aspect ratio16:9
Vertical scan range50 - 60 Hz
Viewable size, horizontal52.7 cm
Viewable size, vertical29.6 cm
Display diagonal60.3 cm (23.8")
Response time5 ms
Colour depth8 bit
Display resolution1920 x 1080 pixels
Display diagonal (metric)60.33 cm
Supported graphics resolutions640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1440 x 900 (WXGA+),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Supported video modes1080p
HDCPcheckmark
Contrast ratio (dynamic)5000000:1
Backlight typeLED
Maximum refresh rate60 Hz
3Dcross
Display technologyLED
Native aspect ratio16:9
HD typeFull HD
Pixel density92.56 ppi
Panel typeIPS
Display surfaceMatt
Screen shapeFlat
sRGB coverage (typical)94%
NTSC coverage (typical)72%
Ports & interfaces
Audio inputY
Audio outputY
DVI portcross
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4
DisplayPorts quantity1
DisplayPort version1.2
Headphone outcheckmark
Built-in USB hubcheckmark
USB hub version3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports2
USB Type-A downstream ports quantity4
Weight & dimensions
Weight3.58 kg
Height321.9 mm
Width538.8 mm
Depth45.4 mm
Width (with stand)538.8 mm
Height (with stand)477.1 mm
Depth (with stand)205 mm
Height (max)47.2 cm
Bezel width (side)1.36 mm
Bezel width (top)1.36 mm
Bezel width (bottom)1.86 cm
Weight (with stand)6.1 kg
Energy management
Power consumption (typical)30 W
Power consumption (standby)0.5 W
Energy efficiency classB
External power adaptercheckmark
Annual energy consumption42 kWh
AC input frequency50/60 Hz
AC input voltage120 - 230 V
Power consumption (max)155 W
Operational conditions
Operating altitude0 - 5000 m
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)5 - 35 °C
Storage relative humidity (H-H)5 - 95%
Non-operating altitude5000 - 12192 m
Packaging data
Package weight9.59 kg
AC adapter includedcheckmark
Package depth400 mm
Package height273 mm
Package width620 mm
Manualcheckmark
USB cable length1.8 m
Power cable length1.83 m
Stand includedcheckmark
Certificates
CertificationCSA, UL, VCCI, BSMI, NOM, TUV S, WHQL, CB, CCC, PSB, FCC, ISO 9241-307, KCC, WEEE, MEPS, KC, EAC, ISC, low halogen, ICE, CEL Grade 3

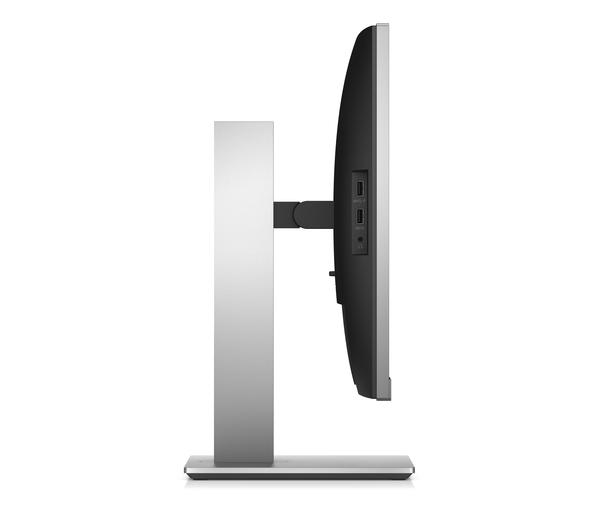

Ergonomics
Plug and Playcheckmark
Cable lock slotcheckmark
Height adjustment15 cm
Swivel angle range0 - 45°
Tilt angle range-5 - 23°
Pivotcheckmark
On Screen Display (OSD)checkmark
Panel mounting interface100 x 100 mm
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Portuguese
On/off switchcheckmark
Swivellingcheckmark
Number of OSD languages10
Pivot angle0 - 90°
Tilt adjustmentcheckmark
Cable lock slot typeKensington
VESA mountingcheckmark
Packaging content
Cables includedDisplayPort, USB Type-C
Other features
DisplayLED
Design
Mean time between failures (MTBF)30000 h
Product colourBlack
Heavy metals freeHg (mercury)
Market positioningBusiness
Feet colourBlack
Multimedia
Built-in microphonecheckmark
TV tuner integratedcross
Built-in cameracheckmark
EAN190781822288
Warranty1 year

Touch down to an instant workspace

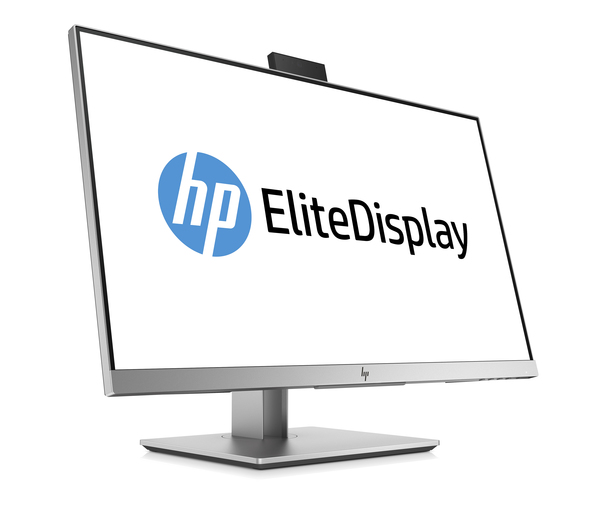

Make the most of your desk with streamlined USB-C™[1], network, and accessory connectivity, plus a pop-up HD webcam, with the HP EliteDisplay E243d 23.8-inch Docking Monitor, our most advanced 23.8" docking display.

- Create a command center from a display and built-in docking station. Power your notebook and send and receive video over driverless USB-C™.[1] Connect your wired network through the RJ-45.
- Reveal more of your work and support virtually seamless tiling with a 60.45 cm (23.8")diagonal IPS FHD screen and 3-sided micro-edge bezel. Daisy chain a second display[2] from one PC with DisplayPort™.
- Experience a virtually seamless dual-display setup with 3-sided micro-edge bezels when you daisy chain a second display from a single USB-C™ connection on your PC.[5]
