EH512, FULLHD, DLP, 1920 x 1080, 5000 ansi lumen, 5000h, 15000:1, 2Y warranty

Manufacturer: OPTOMA
ID: E1P1A1QWE1Z1
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Display
Built-in displaycross

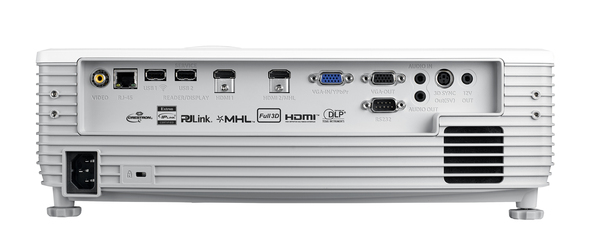

Ports & interfaces
Serial interface typeRS-232
USB 2.0 ports quantity2
DVI portcross
VGA (D-Sub) ports quantity2
Composite video in1
PC Audio incheckmark
AC (power) incheckmark
HDMI ports quantity2
HDMI version1.4a
PC Audio outcheckmark
12V triggercheckmark
Mobile High-Definition Link (MHL)checkmark
HDMI connector typeFull-size
Lens system
Zoom capabilitycheckmark
Aperture range (F-F)2.5 - 3.25
Focal length range20.91 - 32.62 mm
Offset99%
Throw ratio1.41 - 2.24:1
Zoom ratio1.6:1
Zoom typeManual
Vertical lens shift range0 - 17%
Weight & dimensions
Weight4.6 kg
Height132 mm
Width369 mm
Depth295 mm
Energy management
Power consumption (typical)310 W
Power sourceAC
Power consumption (standby)0.5 W
AC input frequency50 - 60 Hz
AC input voltage100-240 V
Power consumption (max)390 W
Operational conditions
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 85%
Operating temperature (T-T)5 - 40 °C
Networking
Ethernet LANcheckmark
Ethernet LAN (RJ-45) ports1
Wi-Ficross
Smart TVcross
Projector
Contrast ratio (typical)15000:1
Horizontal scan range15.375 - 91.146 kHz
Vertical scan range24 - 85 Hz
Projection distance1.3 - 9.4 m
Projection technologyDLP
Projector brightness5000 ANSI lumens
Uniformity85%
Screen size compatibility665.5 - 7647.9 mm (26.2 - 301.1")
Keystone correction, vertical-20 - 20°
Keystone correction, horizontal-20 - 20°
Contrast ratio (dynamic)15000:1
Matrix size1.65 cm (0.65")
Matrix typeDMD
Native aspect ratio16:9
Supported aspect ratios4:3,16:9
Projector native resolution1080p (1920x1080)
Video
Analog signal format systemNTSC 3.58,NTSC 4.43,NTSC J,NTSC M,PAL 4.43,PAL B,PAL D,PAL G,PAL H,PAL I,PAL L,PAL M,PAL N,SECAM 4.25/4.4,SECAM B,SECAM D,SECAM G,SECAM K,SECAM K1,SECAM L
Full HDcheckmark
Supported graphics resolutions640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1600 x 1200 (UXGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Supported video modes480i,480p,576i,576p,720p,1080i,1080p
3Dcheckmark
Storage
Card reader integratedcross
Packaging content
Remote control includedcheckmark
Cables includedAC
Manualcheckmark
Batteries includedcheckmark
Other features
RS-232 ports1
Design
Cable lock slotcheckmark
Product colourWhite
Ceiling mounting supportedcheckmark
Market positioningPresentation
Product typeDesktop projector
Cable lock slot typeKensington
Features
Noise level30 dB
On Screen Display (OSD)checkmark
On Screen Display (OSD) languagesArabic, Czech, Danish, German, Dutch, English, Spanish, Farsi, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Turkish
Number of OSD languages21
Password protectioncheckmark
Multimedia
Number of built-in speakers2
RMS rated power20 W
Built-in speaker(s)checkmark
Light source
Lamps quantity1 lamp(s)
EAN5055387661127
Warranty3 years
Source: Icecat.biz

Bright projection with installation flexibility and control

Experience brilliant 1080p projection with the 5,000 lumen Optoma EH512. Its 15,000:1 contrast ratio, 1.6x zoom, vertical lens shift, keystone correction and full RS-232C control provide installation flexibility ideal for large classrooms, lecture halls, museums and houses of worship.

A PC-free image viewer and document reader display office documents, PDFs and images from USB storage devices. HDCast Pro connectivity provides wireless screen mirroring with Android, Mac OS and Windows devices.

LAN display supports up to 4 simultaneous computers while USB display mirrors Android and iOS devices. Robust input options include HDMI, VGA and analog for easy connectivity to current and legacy video sources.

DLP Technology
DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

HDCast Pro – Wireless Display and Document Casting
Screen mirror Android, Windows and Mac devices wirelessly; Cast images and documents from Android, iOS, Windows and Mac devices or use USB Display to screen mirror Android and iOS devices.

PC-free USB Image and Document Viewer
Integrated PC-free image and document viewer provide direct viewing of office documents, PDFs, images and presentations from any USB storage device.

Vertical Lens Shift
Vertical lens shift simplifies installations by shifting the image up and down without image distorsion to provide a wider range of projector placement possibilities, making it easier to position the projector in a room.

+12v Trigger
Easily trigger a motorized screen to lower or raise when the projector is powered on or off.

AMX Compatibility
Easily communicate with AMX control systems for simple integration.

Creston Roomview® – NETWORK CONTROL Roomview®
Software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.

RS-232 Control
Take control of the projector using HEX or ASCII commands via RS-232 cable.
