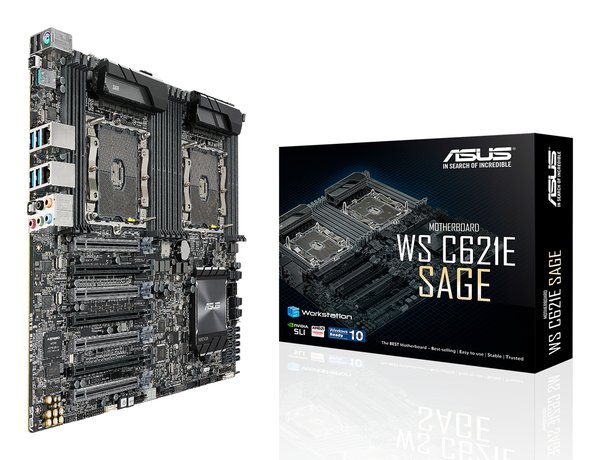

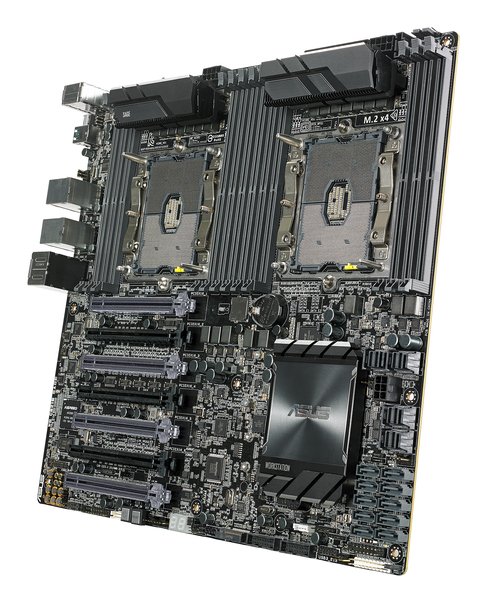

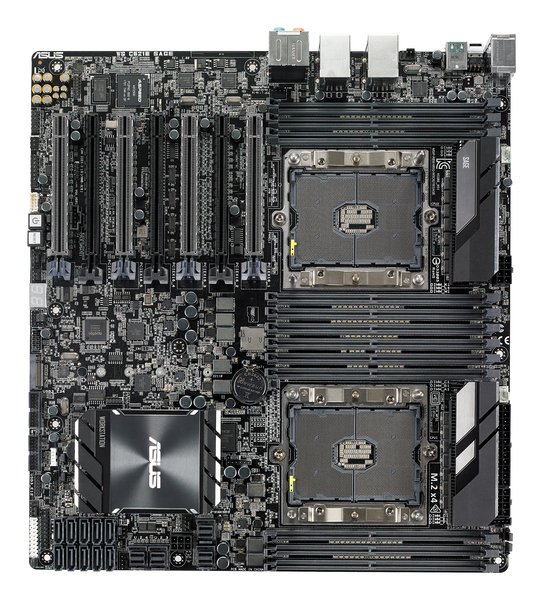

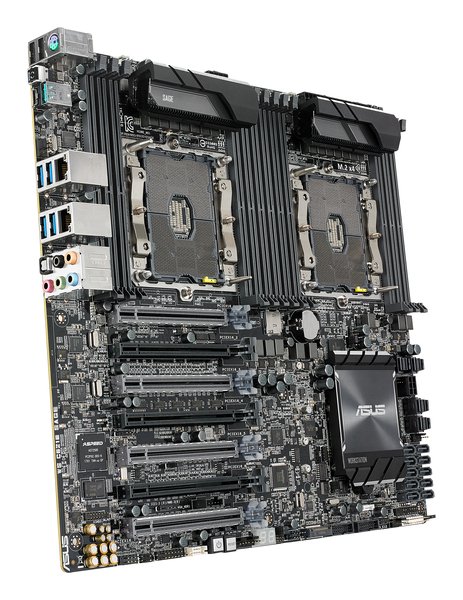

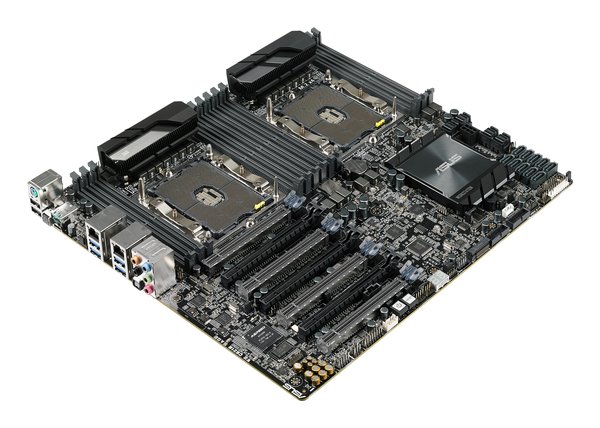

Asus WS C621E SAGE Socket P ATX Motherboard

The ASUS WS C621E SAGE is an ATX motherboard engineered for workstation and server applications requiring substantial processing power. It is constructed on the Intel C621 chipset and features dual Socket P (LGA 3647) mounts, enabling the installation of two Intel Xeon processors. The board includes 12 DIMM slots that support up to 768 GB of DDR4 ECC memory, providing the capacity necessary for large datasets and complex computational tasks. Its power delivery subsystem is designed to provide stable voltage to dual CPUs under sustained heavy workloads.

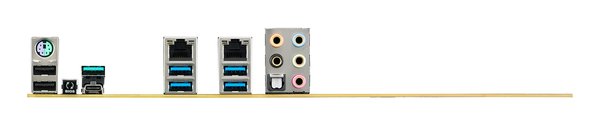

For storage and expansion, this motherboard offers a versatile set of interfaces, including M.2, U.2, and ten SATA III ports with RAID 0, 1, 5, and 10 support for data redundancy and performance. It provides seven PCIe 3.0 x16 slots, allowing for multi-GPU configurations or the installation of various high-bandwidth expansion cards. Connectivity includes dual Gigabit Ethernet ports for reliable network access, along with a comprehensive selection of USB ports on the rear I/O panel. Audio is handled by a Realtek S1220A chipset, which provides 8-channel high-definition audio output.

• Supports dual Intel Xeon processors with Socket P
• Features the Intel C621 workstation chipset
• Accommodates up to 768 GB of DDR4 ECC memory
• Provides 12 DIMM memory slots
• Offers M.2, U.2, and 10 SATA III storage connectors
• Includes seven PCIe 3.0 x16 expansion slots
• Equipped with dual Gigabit Ethernet LAN ports
• Utilizes a standard ATX form factor
• Supports RAID 0, 1, 5, and 10 configurations
• Features a Realtek S1220A 8-channel audio codec
