Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon® |
| Processor socket | LGA 1151 |
| Memory | |
| Maximum internal memory | 64 GB |
| ECC |  |
| Non-ECC | |
| Supported memory clock speeds | 2400,2666 MHz |
| Supported memory types | DDR4 |
| Memory channels | Dual-channel |
| Unbuffered memory | |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 2666 MHz |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Networking | |
| Ethernet LAN | |
| Bluetooth |  |
| LAN controller | Intel® I210-AT, Intel I219LM |
| Wi-Fi | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | |
| TPM connector | |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | |

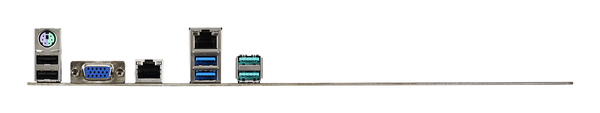

| Back panel I/O ports | |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| eSATA ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Storage controllers | |
| RAID support | |
| Expansion slots | |
| PCI slots | 2 |
| PCI Express x16 slots | 1 |
| PCI Express x8 slots | 1 |
| PCI Express x1 slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
| Clear CMOS button | |
| Graphics | |
| Graphics card | AST2510 |
| Features | |
| Motherboard chipset | Intel C242 |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Motherboard | |
| Motherboard form factor | ATX |
| EAN | 4712900951868 |
| Warranty | 3 years |

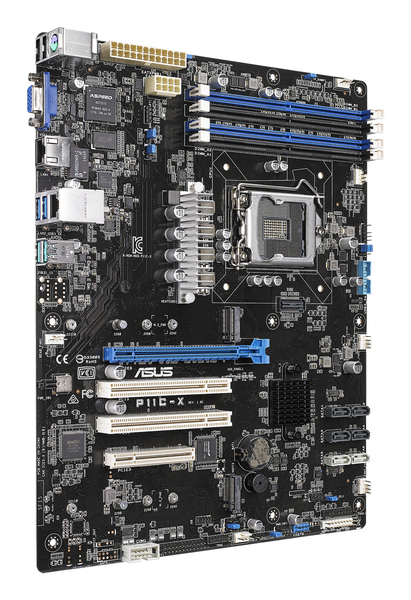

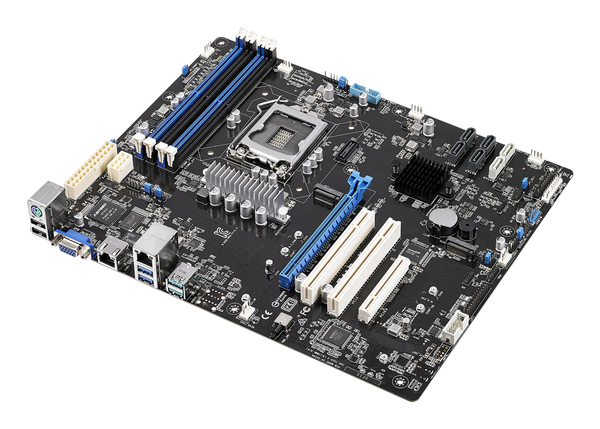

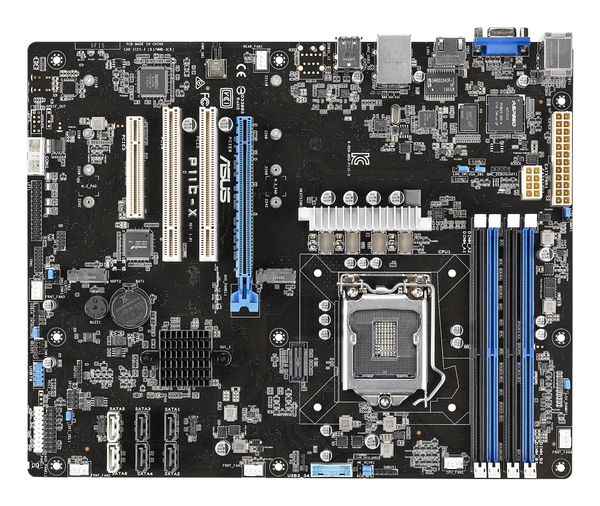

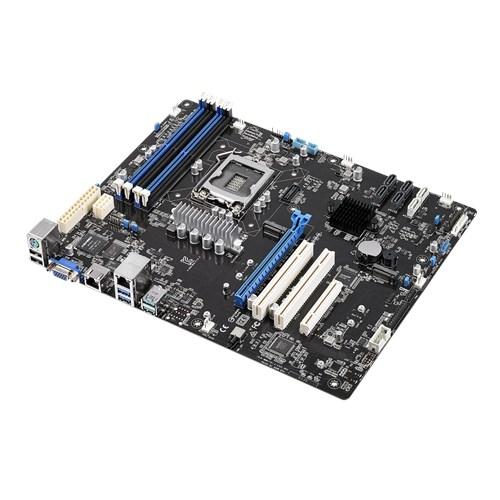

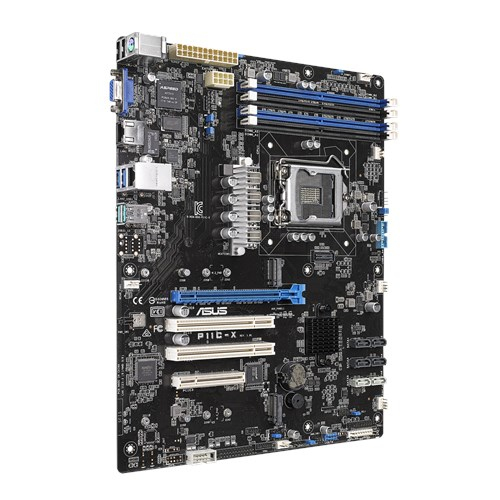

The ASUS P11C-X is a server motherboard designed around the Intel C242 chipset, providing a stable foundation for server and workstation applications. It utilizes the LGA 1151 socket, offering compatibility with a range of processors including the Intel Xeon, Core i3, Pentium, and Celeron series. This ATX form factor board is engineered for reliability in professional environments, featuring a layout that accommodates standard chassis builds and provides essential connectivity for sustained operation.
Memory and storage capabilities are handled by four DIMM slots supporting up to 64 GB of dual-channel DDR4 RAM, with compatibility for both ECC and non-ECC modules to suit data integrity needs. For storage, the board includes two M.2 slots and six SATA III ports, with RAID functionality available for data redundancy or increased performance. Network connectivity is provided by dual integrated Intel Gigabit LAN ports, ensuring reliable throughput for data-intensive tasks and server roles.
Key Features:- Supports Intel Xeon, Core i3, Pentium, and Celeron processors
- Features an LGA 1151 processor socket
- Built on the Intel C242 chipset
- Standard ATX form factor for broad case compatibility
- Accommodates up to 64 GB of DDR4 memory
- Includes four dual-channel DIMM slots
- Provides two M.2 slots and six SATA III ports
- Equipped with dual 1GbE LAN ports
- Offers one PCIe 3.0 x16 and one PCIe 3.0 x1 slot
- Utilizes 24-pin ATX and 8-pin EPS power connectors
- Features one CPU fan and six chassis fan connectors
- Includes two USB 3.2 Gen 2 and two USB 3.2 Gen 1 ports on the rear panel
