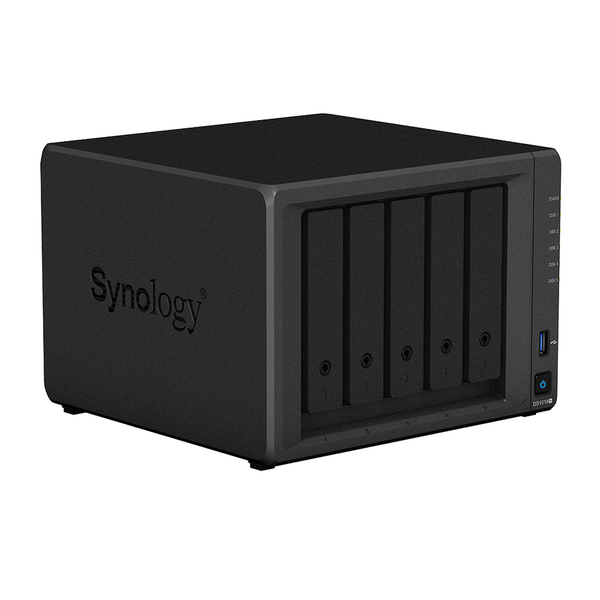

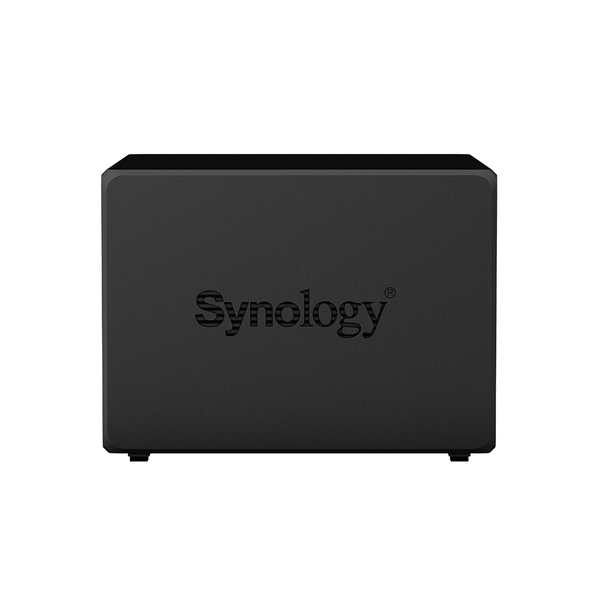

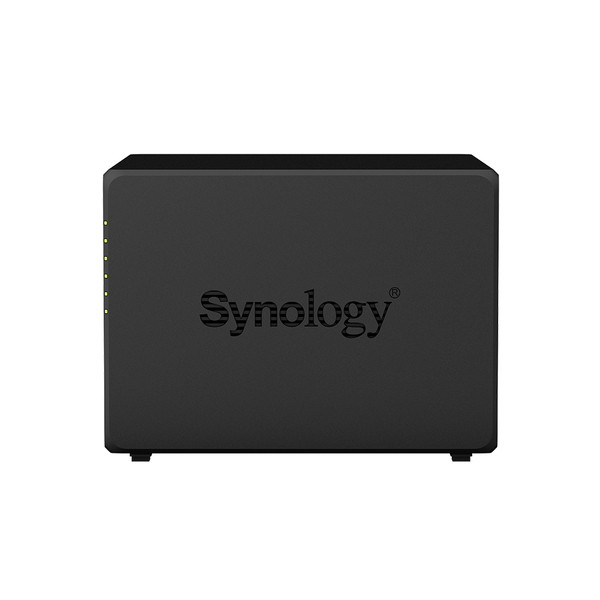

Synology DS1019+ 5-Bay quad-core CPU, 8GB memory

Manufacturer: SYNOLOGY
ID: DS1019+
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Processor
Processor modelJ3455
Processor lithography14 nm
Processor familyIntel Celeron
Processor socketBGA 1296
SteppingB1
Processor cores4
Processor codeSR2Z9
Processor threads4
PCI Express slots version2.0
Processor operating modes64-bit
Processor boost frequency2.30 GHz
Processor cache2 MB
CPU configuration (max)1
Tjunction105 °C
PCI Express configurations1x2+2x1,4x1
Processor frequency1.50 GHz
Thermal Design Power (TDP)10 W
Processor codenameApollo Lake
Processor cache typeSmart Cache
Maximum internal memory supported by processor8 GB
ECC supported by processorcross
Processor package size24 x 31 mm
Conflict-Free processorcheckmark
Processor ARK ID95594
Memory
Internal memory typeDDR3
Memory slots2
Maximum RAM supported8 GB
Internal memory8 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports2
eSATA ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB portcheckmark
Weight & dimensions
Weight2.54 kg
Height166 mm
Width230 mm
Depth223 mm
Energy management
Power consumption (typical)38.59 W
Number of power supply units1
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Power supply locationBuilt-in
Power supply unit (PSU) capacity120 W
Power consumption (HDD standby)13.32 W
Operational conditions
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Networking
Supported network protocolsCalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
Ethernet LANcheckmark
Wake-on-LAN readycheckmark
Wi-Ficross
Link aggregationcheckmark
Ethernet LAN data rates10,100,1000 Mbit/s
iSCSI supportcheckmark
Storage
RAID levels0,1,5,6,10,JBOD
Supported file systemsBTRFS,FAT,HFS+,NTFS,ext3,ext4
RAID supportcheckmark
Number of storage drives supported5
Storage drive sizes supported2.5,3.5"
Storage drives installedcross
Installed storage drive typecross
Supported storage drive typesHDD,SSD
Hot-swap drive bayscheckmark
Supported storage drive interfacesSerial ATA
Online RAID migrationcheckmark
Online RAID expansioncheckmark
Certificates
CertificationEAC
VCCI
CCC
RCM
FCC
CE
BSMI
RoHS compliancecheckmark
Operating system/software
Operating system installedDiskStation Manager
Windows operating systems supportedWindows 10,Windows 7
Mac operating systems supportedMac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave
Server operating systems supportedWindows Server 2016
Packaging content
Cables includedAC,LAN (RJ-45)
Quick installation guidecheckmark
Design
Chassis typeTower
Cable lock slotcheckmark
LED indicatorsHDD,Power,Status
Product colourBlack
Number of fans2 fan(s)
Cooling typeActive
Fan diameter9.2 cm
Cable lock slot typeKensington
Graphics
On-board graphics card modelIntel® HD Graphics 500
On-board graphics card base frequency250 MHz
On-board graphics card burst frequency750 MHz
Maximum on-board graphics card memory8 GB
Number of displays supported (on-board graphics)3
Processor special features
Intel® Identity Protection Technology (Intel® IPT)checkmark
Intel® Anti-Theft Technology (Intel® AT)cross
Intel® Smart Response Technologycross
Intel Smart Connect Technologycross
Intel® Hyper Threading Technology (Intel® HT Technology)cross
Intel® Turbo Boost Technologycross
Intel® Quick Sync Video Technologycheckmark
Intel® InTru™ 3D Technologycross
Intel® Wireless Display (Intel® WiDi)cross
Intel® Clear Video HD Technology (Intel® CVT HD)checkmark
Intel® Insider™cross
Intel® AES New Instructions (Intel® AES-NI)checkmark
Enhanced Intel SpeedStep Technologycheckmark
Execute Disable Bitcheckmark
Idle Statescheckmark
Thermal Monitoring Technologiescheckmark
Intel Trusted Execution Technologycross
Intel Enhanced Halt Statecheckmark
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)checkmark
Intel VT-x with Extended Page Tables (EPT)checkmark
Embedded options availablecross
Intel Rapid Storage Technologycross
Intel® High Definition Audio (Intel® HD Audio)checkmark
Intel® Small Business Advantage (Intel® SBA)cross
Intel® Secure Keycheckmark
Intel 64checkmark
Intel Stable Image Platform Program (SIPP)cross
Intel® OS Guardcross
UARTcheckmark
Intel Virtualization Technology for Directed I/O (VT-d)checkmark
Number of execution units12
Maximum number of PCI Express lanes6
Intel Secure Bootcheckmark
Intel Clear Video Technologycheckmark
Intel Virtualization Technology (VT-x)checkmark
Memory types supported by processorDDR3L,LPDDR3-SDRAM,LPDDR4-SDRAM
Memory channels supported by processorDual
Performance
TypeNAS
Security algorithmsHTTPS,SSH,SSL/TLS
Browser supportedChrome, Firefox, Internet Explorer 10+, Safari 10+
Noise level20.8 dB
Web-based managementcheckmark
Access Control List (ACL)checkmark
Reset buttoncheckmark
Multilingual supportcheckmark
On/off switchcheckmark
S.M.A.R.T. supportcheckmark
Device classSmall & Medium Business
Backup functioncheckmark
Backup featuresCloud,iSCSI LUN
Hot sparecheckmark
EAN4711174723140
Warranty3 years
Source: Icecat.biz

Versatile Storage in a Compact Desktop Chassis
Capable of transcoding up to 2-channel, 4K video simultaneously, DS1019+ provides a remarkable video streaming experience for advanced home users. Its versatile built-in applications including collaboration, file sharing, data backup and recovery also fulfill SOHO users’ various needs, accelerate office productivity, it is even ready for virtualization deployment.

A Perfect Mixture of Scalability and Performance
DS1019+ comes with dual native M.2 NVMe SSD slots, allowing you to build NVMe SSD cache without occupying any of the drive trays. You can also scale up to 10 drives with one DX517 expansion unit, seamlessly expanding your storage capacity.

Ultimate Backup Solution
DS1019+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.

4K Multimedia Server
Access and stream your 4K media content anytime and anywhere. DS1019+ supports 4K H.264/H.265 online transcoding via Video Station and DS video, allowing 4K videos to be converted and played on the fly on other computers, smartphones, and media players that originally do not support Ultra HD formats.
Btrfs: Next generation storage efficiency
Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses:
lexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
File or folder level data restoration makes data recovery fast and flexible
Automatic file self-healing detects and recovers corrupted files without user intervention

- Quad-core 1.5GHz, burst up to 2.3GHz
- 2 x 4GB DDR3L memory module pre-installed
- Up to 10 drives with one DX517
- Over 225 MB/s reading and writing in encrypted
