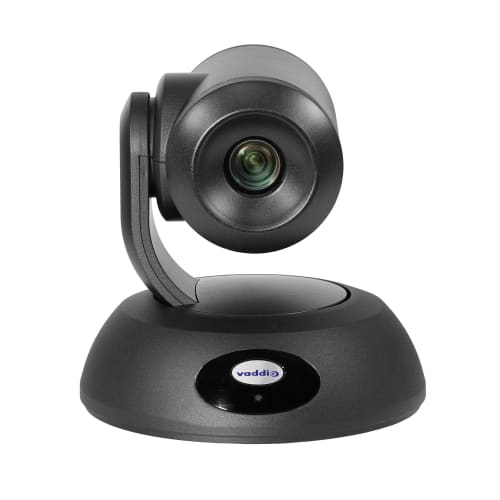

Vaddio RoboSHOT 12E HDBT OneLINK HDMI for Polycom Codecs (black)
Manufacturer: VADDIO
ID: 999-95450-501
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Display | |
| Built-in display | ![]() |
| Audio | |
| Audio formats supported | RTSP |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Weight & dimensions | |
| Weight | 2.2 kg |
| Camera dimensions (WxDxH) | 179.1 x 171.5 x 176.3 mm |
| Energy management | |
| Current | 1.36 A |
| DC input voltage | 48 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Networking | |
| Ethernet LAN | ![]() |
| Web-based management | ![]() |
| Cable standard | Cat5e |
| Video | |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Video formats supported | H.264 |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Camera | |
| Megapixel (approx.) | 8.57 MP |
| Optical zoom | 12x |
| White balance | Auto, Manual, One push |
| Sensor type | CMOS |
| Minimum illumination | 1 lx |
| Focus adjustment | Auto/Manual |
| Effective sensor resolution | 8.51 MP |
| Image sensor size | 1/2.5" |
| Camera control algorithm | Tri-synchronous motion |
| Tele end viewing angle (normal mode) | 4.1° |
| Wide end viewing angle (normal mode) | 70.2° |
| Gain control type | Auto/Manual |
| Aperture number of steps | 1.6 |
| Number of camera presets | 17 |
| Recommended luminance | 100 lx |
| Packaging content | |
| Remote control included | ![]() |
| Cables included | AC |
| Camera included | ![]() |
| User guide | ![]() |
| Mounting kit | ![]() |
| Wall mounting kit | ![]() |
| External interface module included | ![]() |
| Camera control unit included | ![]() |
| Performance | |
| Wall mountable | ![]() |
| Product colour | Black |
| Tilt angle range | -30 - 90° |
| Pan range | -160 - 160° |
| PTZ control | ![]() |
| Camera cable length (max) | 100 m |
| Product type | Group video conferencing system |
| Tilt speed range | 0.35 - 120 °/sec |
| Pan speed range | 0.35 - 120 °/sec |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Interface module | |
| Interface module DC input port | ![]() |
| Interface module IR output port | ![]() |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Interface module RJ-45 ports quantity | 2 |
| 1 | |
| EAN | |
| Source: Icecat.biz | |
Introducing the RoboSHOT Elite Series – Vaddio’s next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.
The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.
Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.
RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.
The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.
Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.
