Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 17 |
| SFP module slots quantity | 1 |
| Weight & dimensions | |
| Weight | 2.67 kg |
| Height | 44 mm |
| Width | 440 mm |
| Depth | 220.8 mm |
| Energy management | |
| Power consumption (typical) | 20 W |
| Input current | 4 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 250 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Networking | |
| Full duplex |  |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Auto MDI/MDI-X | |
| 10G support |  |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Store-and-forward | |
| Forwarding rate | 26.784 Mpps |
| Packet buffer memory | 4.1 MB |
| Packaging data | |
| Package weight | 3.53 kg |
| Management features | |
| Switch type | Unmanaged |
| Design | |
| Product colour | Blue |
| Housing material | Metal |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 230 W |
| Power over Ethernet (PoE) power per port | 30 W |
| EAN | 6954273691103 |
| Warranty | 3 years |
| Source: Icecat.biz | |

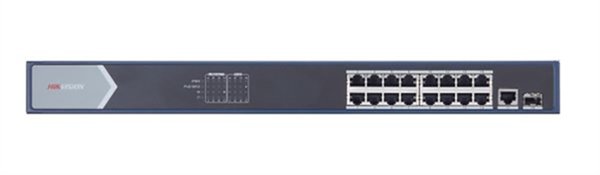

DS-3E0518P-E switches are layer 2 Gigabit PoE unmanaged switches, providing 16 Gigabit PoE ports, one 10/100/1000 Mbps RJ45 port, and one 10/100/1000 Mbps SFP fiber optical port. The switches provide advanced PoE technology and connect other devices with high performance. Meanwhile, all Gigabit ports guarantee stable transmission of data.
- 16 × gigabit PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit SFP fiber optical port
- IEEE 802.3at/af standard
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- PoE port with 6 KV surge protection
- PoE output power management
- Gigabit network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
