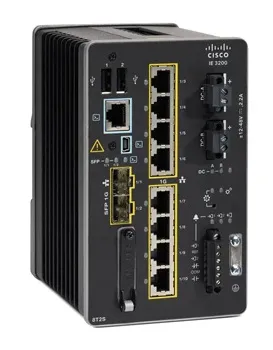

Cisco Catalyst IE3200 Rugged Series IE-3200-8T2S-E - Managed Switch, Black

The Cisco Catalyst IE3200 Rugged Series Managed Switch is a fixed-configuration Layer 2/Layer 3 device designed for industrial environments. It provides eight Gigabit Ethernet copper access ports for local device connections and two Gigabit SFP slots for fiber uplinks. As it is not rack-mountable, it is intended for control cabinets and factory floors rather than standard data centres. The switch uses an 8,000-entry MAC address table to track connected devices across network topologies. Administrators can use its static IP routing capabilities to segment traffic between subnets without requiring an external router.

The switch features a DIN-rail form factor for integration into existing automation panels. This non-PoE model operates on a DC power source via a dedicated input, with a typical power consumption of 23 W. Operators can configure the device via a web-based interface or a local RS-232 console port. Security and traffic management are handled via access control lists, DHCP snooping, and ARP inspection. Broadcast and multicast traffic are regulated using broadcast storm control and IGMP snooping to ensure stable data delivery across the local area network.

• Support for up to 256 active VLANs, including Voice VLAN functionality for traffic isolation.
• Quality of Service (QoS) with 8 scheduling queues per port to manage bandwidth allocation.
• Hardware specifications include 2,000 MB of DRAM and 1,500 MB of flash memory.
• Mean time between failures (MTBF) of 641,150 hours.
• Network authentication compatibility for HWTACACS+, RADIUS, and IEEE 802.1x protocols.
