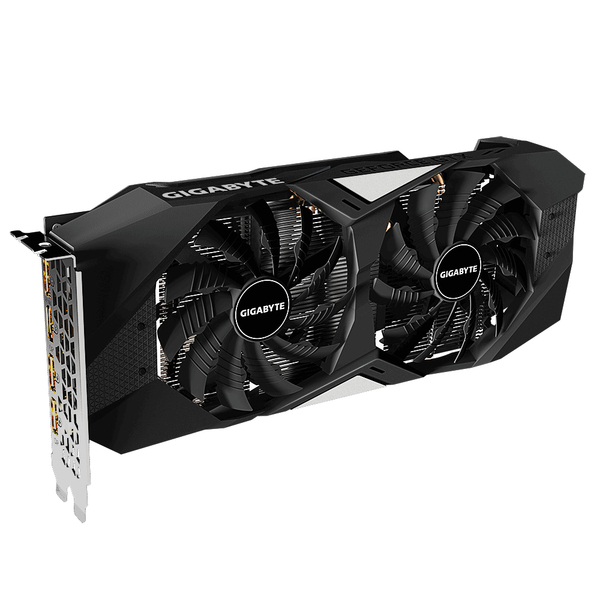

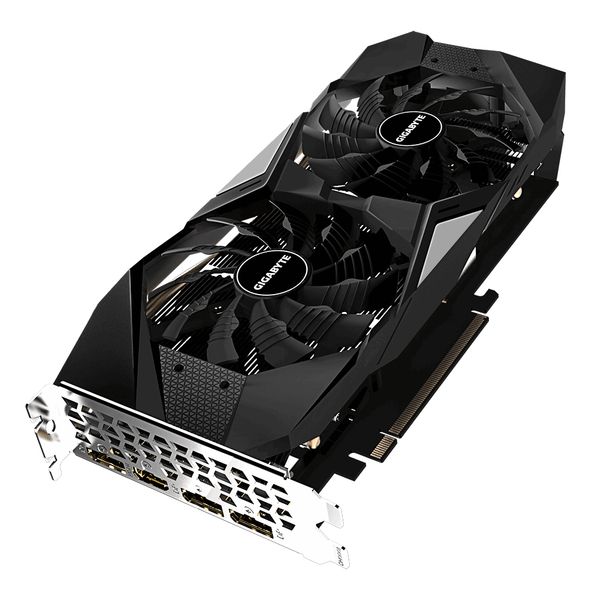

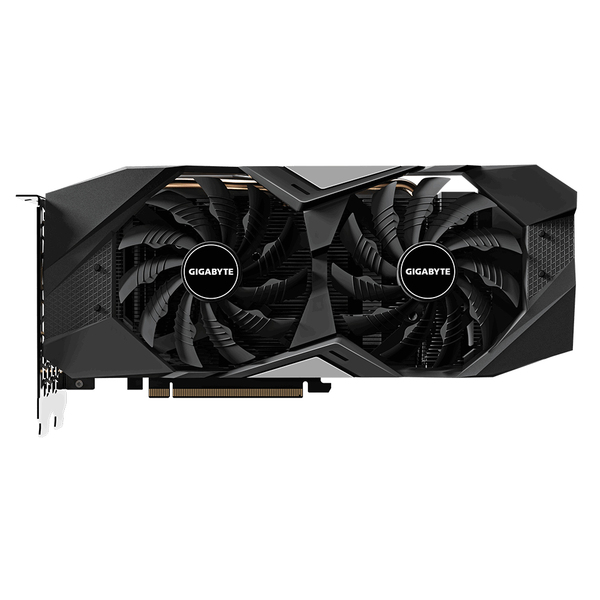

Gigabyte GeForce RTX 2060 SUPER WindForce OC 8GB - Graphics card
This product is end of life or currently not available.
Processor | |
Processor frequency | 1680 MHz |
Graphics processor | GeForce RTX 2060 SUPER |
Maximum resolution | 7680 x 4320 pixels |
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
CUDA | |
CUDA cores | 2176 |
Graphics processor family | NVIDIA |
FireStream | |
Memory | |
Memory type | GDDR6 |
Graphics card memory type | GDDR6 |
Memory bus | 256 bit |
Memory clock speed | 14000 MHz |
Memory bandwidth (max) | 448 GB/s |
Discrete graphics adapter memory | 8 GB |
System requirements | |
Windows operating systems supported | Windows 10 |
Ports & interfaces | |
Interface type | PCI-E 3.0 x 16 |
HDMI ports quantity | 1 |
HDMI version | 2.0b |
DisplayPorts quantity | 3 |
DisplayPort version | 1.4 |
Weight & dimensions | |
Height | 121 mm |
Width | 265 mm |
Depth | 40 mm |
Energy management | |
Minimum system power supply | 550 W |
Supplementary power connectors | 1x 8-pin |
Packaging data | |
Package type | Box |
Design | |
Form factor | Full-Height/Full-Length (FH/FL) |
Number of slots | 2 |
Product colour | Black |
Number of fans | 2 fan(s) |
Cooling type | Active |
Performance | |
TV tuner integrated | |
DirectX version | 12 |
OpenGL version | 4.5 |
Dual Link DVI | |
HDCP | |
PhysX | |
NVIDIA G-SYNC | |
Virtual Reality (VR) ready | |
NVIDIA Ansel | |
EAN | 4719331304942 |
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 4 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

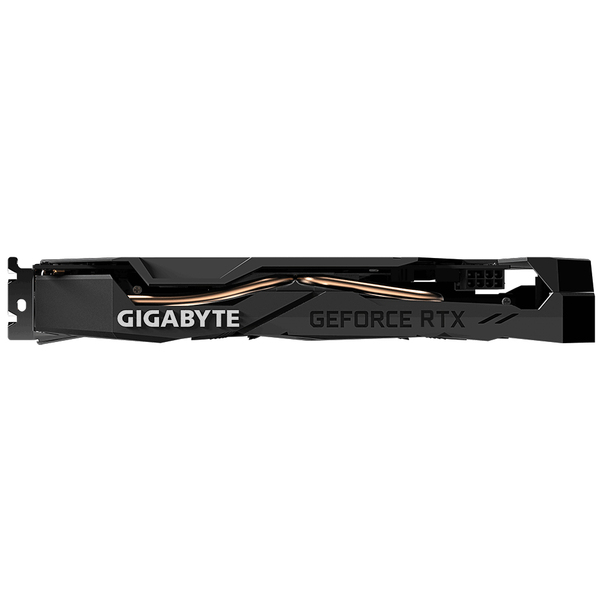

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 6+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. (Reference card is 5+2 power phase)

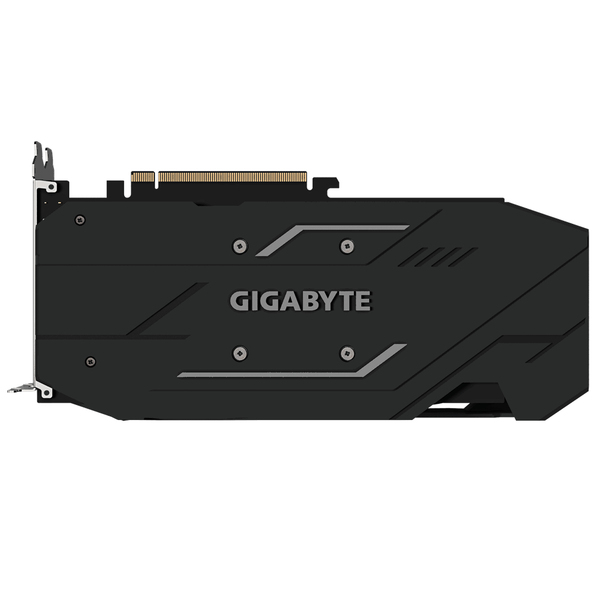

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
POWER INDICATORS
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
