ATEN HDMI HDBaseT Receiver W/Audio De-embedding

Manufacturer: ATEN
ID: VE2812R-AT-G
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Ethernet LANcheckmark
Video out1
Connectivity technologyWired
Audio output2
DC-in jackcheckmark
Digital audio coaxial out2
HDMI version1.4
Number of HDMI outputs1
Remote (IR) input1
RJ-45 input ports1
RS-232 input ports1
3.5 mm (1/8-inch) outcheckmark
HDBaseT portcheckmark
Weight & dimensions
Weight720 g
Height29 mm
Width101 mm
Depth136 mm
Energy management
External power adaptercheckmark
Power consumption (receiver) (max)4.98 W
Operating voltage (receiver)5 V
Operational conditions
Operating relative humidity (H-H)0 - 80%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Packaging data
Package weight740 g
Package depth239 mm
Package height160 mm
Package width59 mm
Packaging content
AC adapter includedcheckmark
Features
TypeAV receiver
Plug and Playcheckmark
MaterialMetal
LED indicatorscheckmark
Maximum resolution4096 x 2160 pixels
Product colourBlack
Impedance100 Ω
Bandwidth340 MHz
Firmware upgradeablecheckmark
Supported graphics resolutions1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Supported video modes1080p
HDCPcheckmark
3Dcheckmark
Electrostatic Discharge (ESD) protection15 kV
Baud rate19.2 Kbit/s
Cable types supportedCat5e, Cat6
Maximum transfer distance100 m
Consumer Electronics Control (CEC) supportcheckmark
Logistics data
Master (outer) case height175 mm
Master (outer) case width250 mm
Master (outer) case gross weight4.8 kg
Master (outer) case length325 mm
Products per master (outer) case5 pc(s)
Master (outer) case net weight3.6 kg
EAN4719264648786
Warranty2 years
Source: Icecat.biz

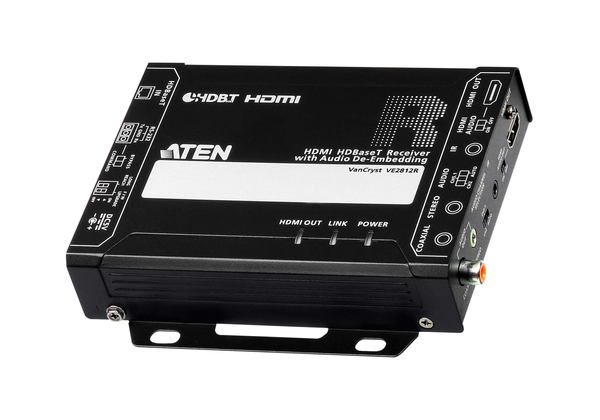

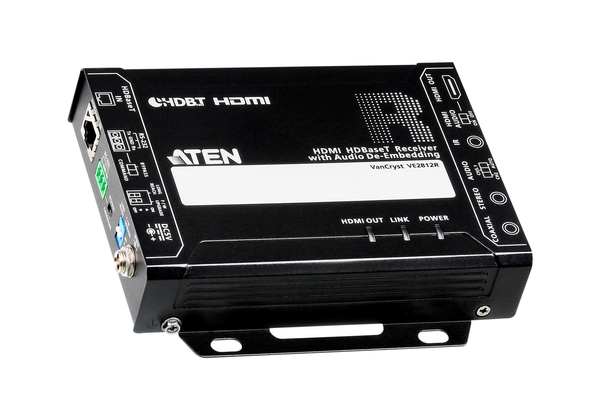

The VE2812R is a high-quality HDMI HDBaseT Receiver featuring audio de-embedding function. Powered by HDBaseT™ technology, the VE2812R can receive 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.With HDBaseT Long Reach Mode enabled, it can deliver HDMI signals up to a maximum range of 150 meters @ 1080p.
1x VE2812R HDMI HDBaseT Receiver with Audio De-Embedding
1x RS-232 Terminal Block
4x Foot Pads
1x 0AD6-1F05-26EG Power Adapter
1x User Instructions
