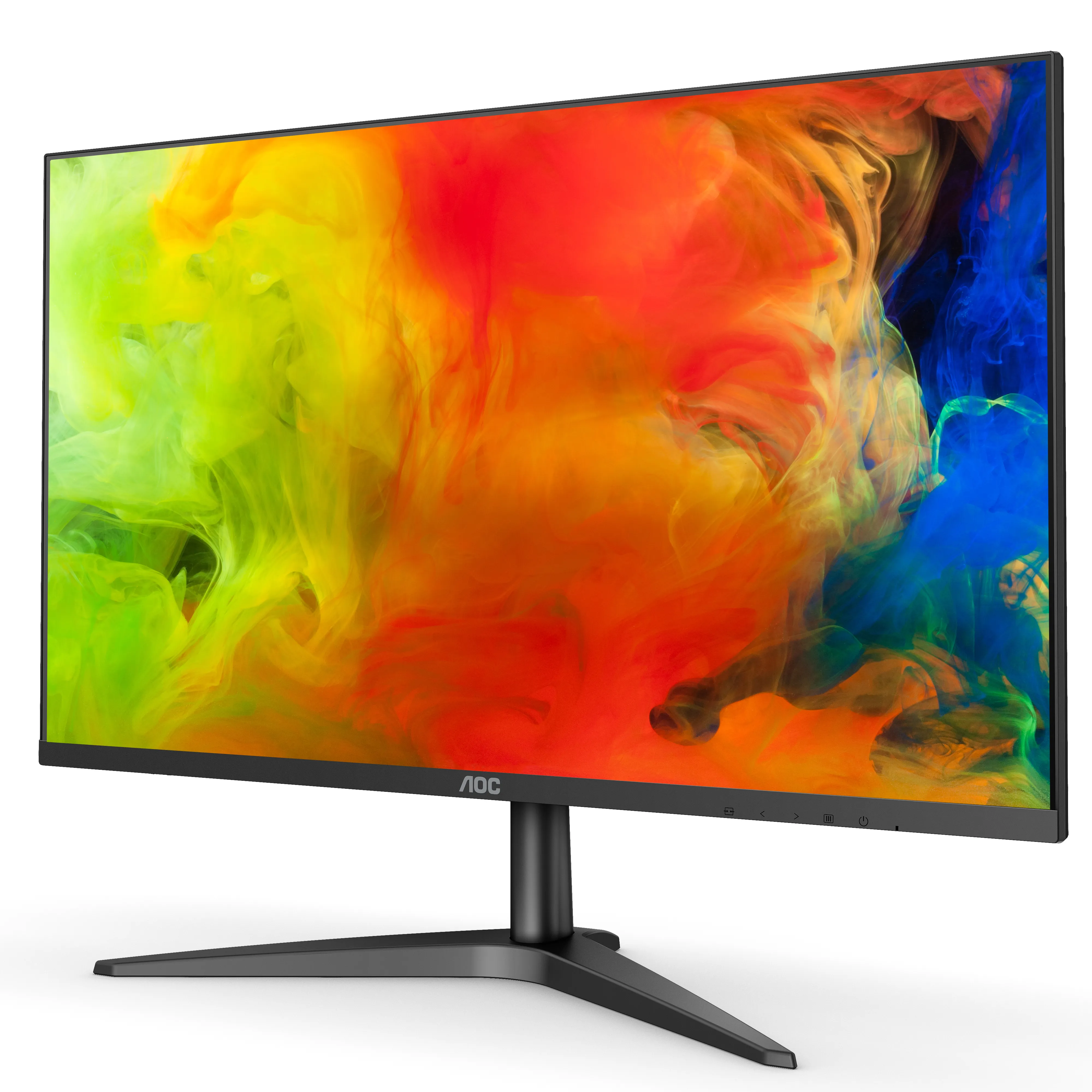

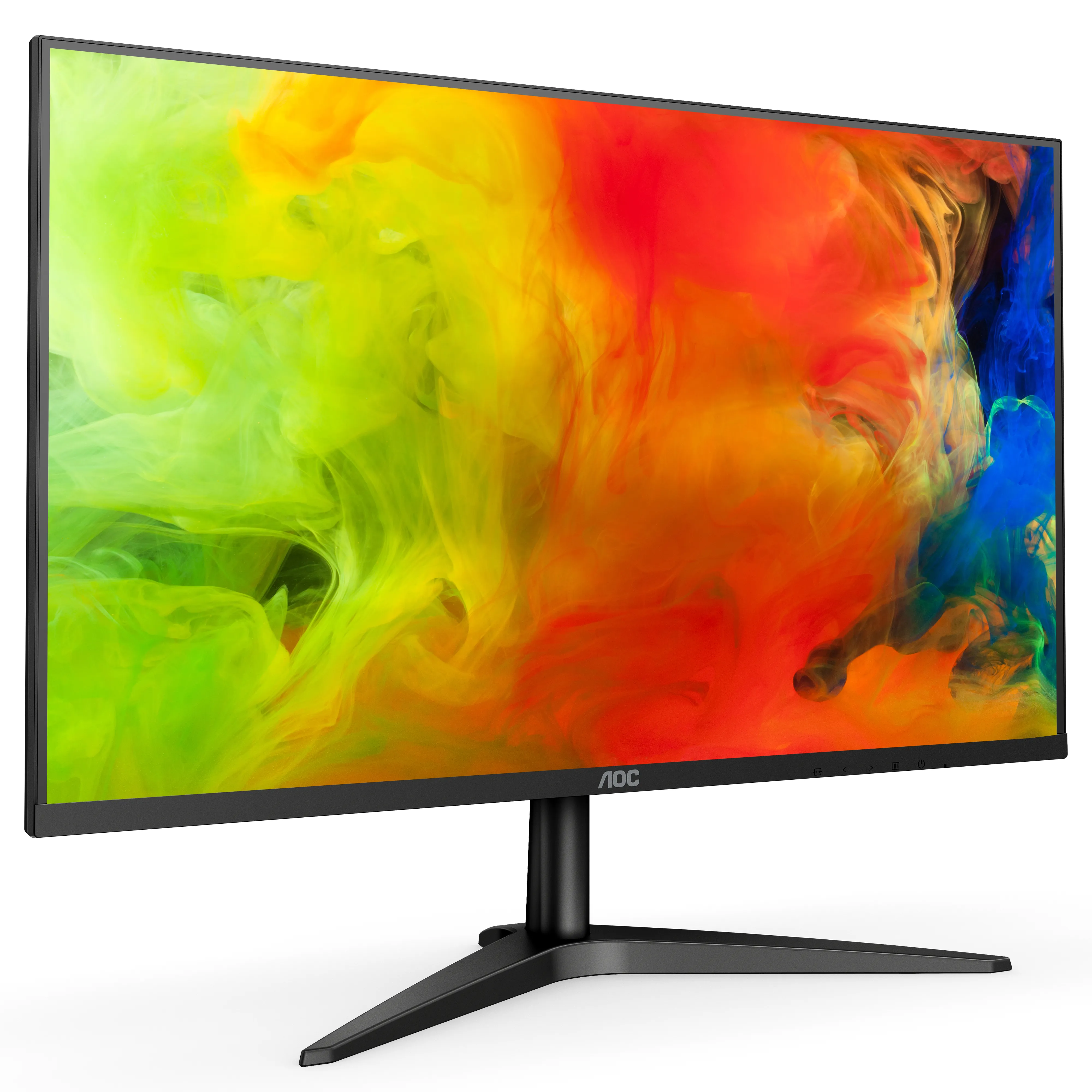

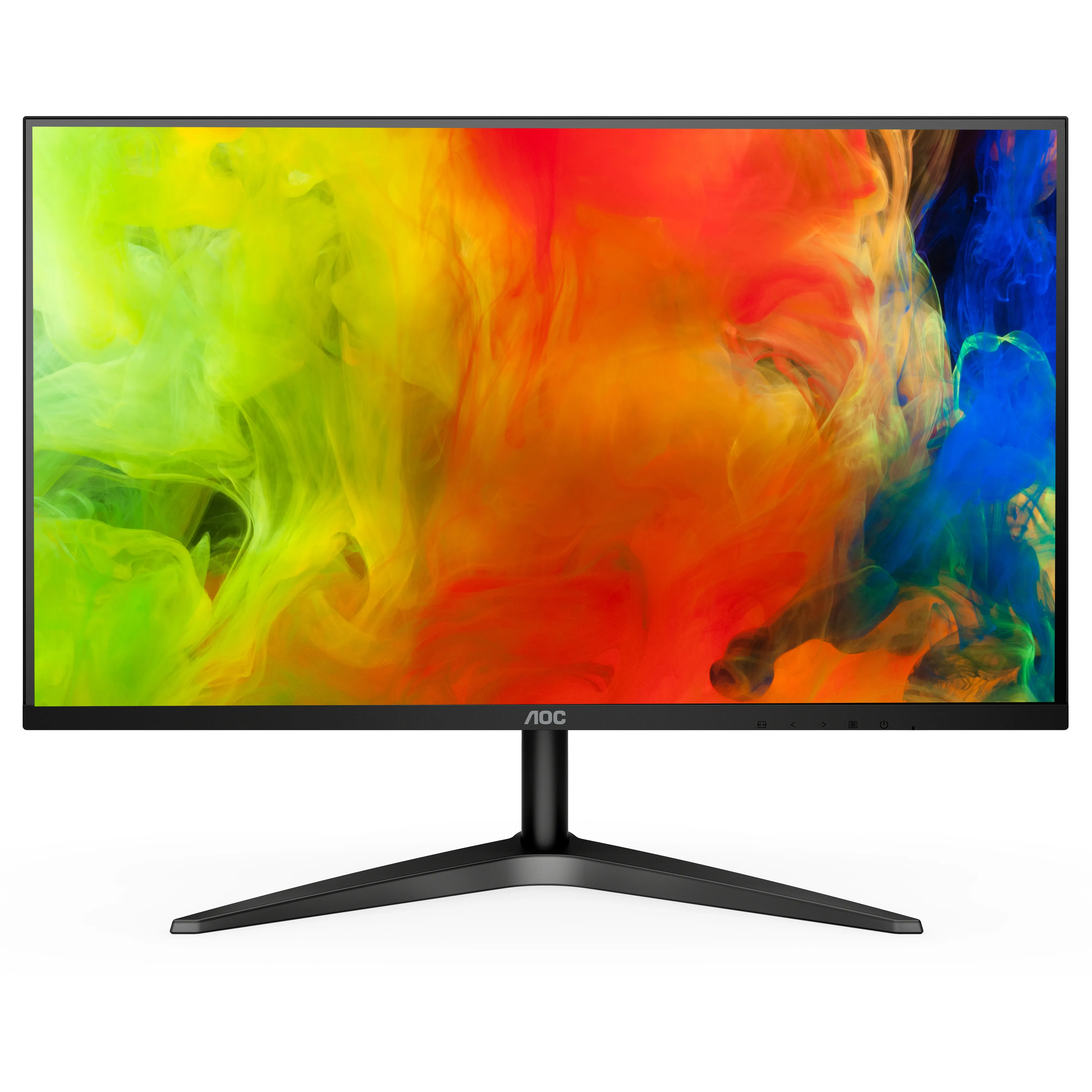

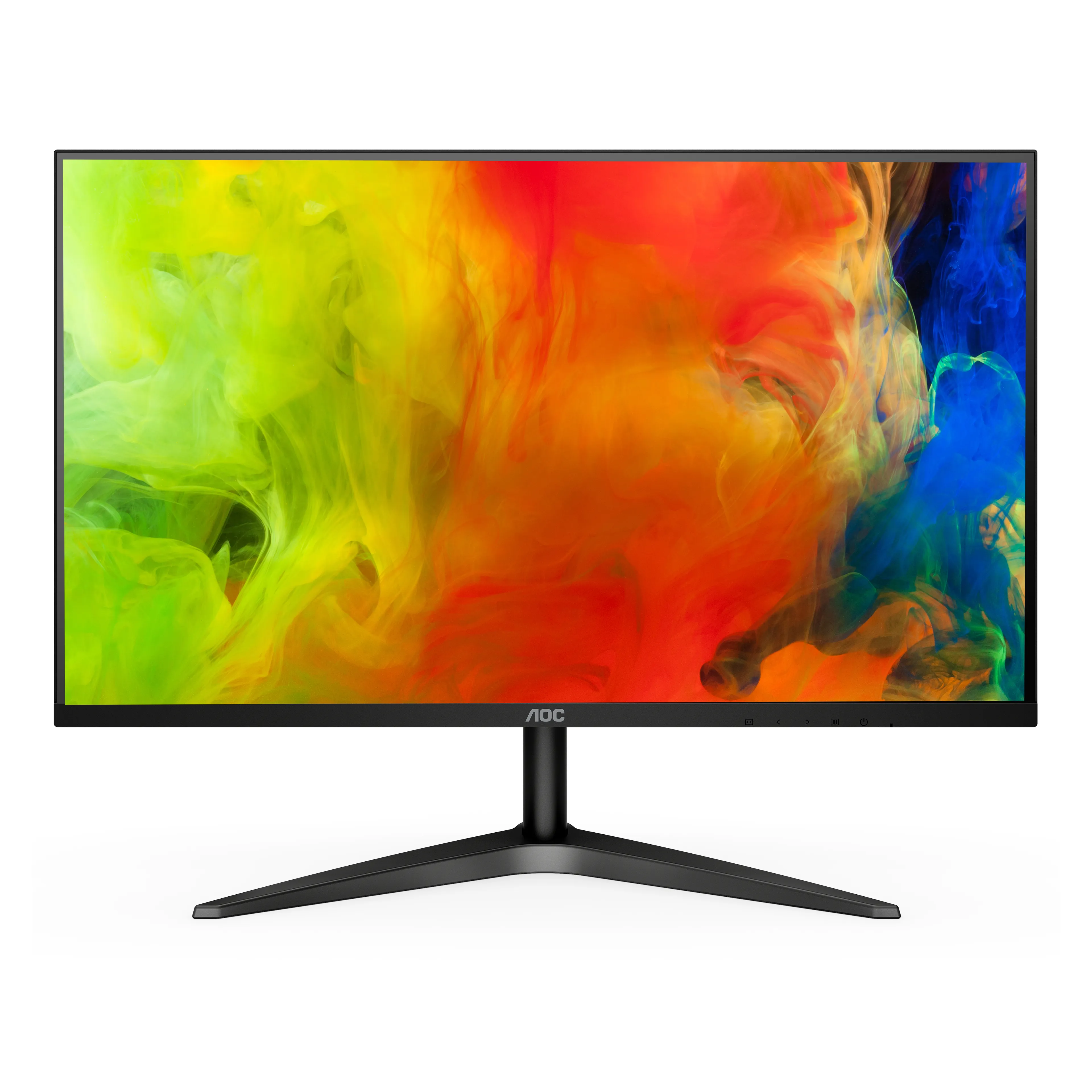

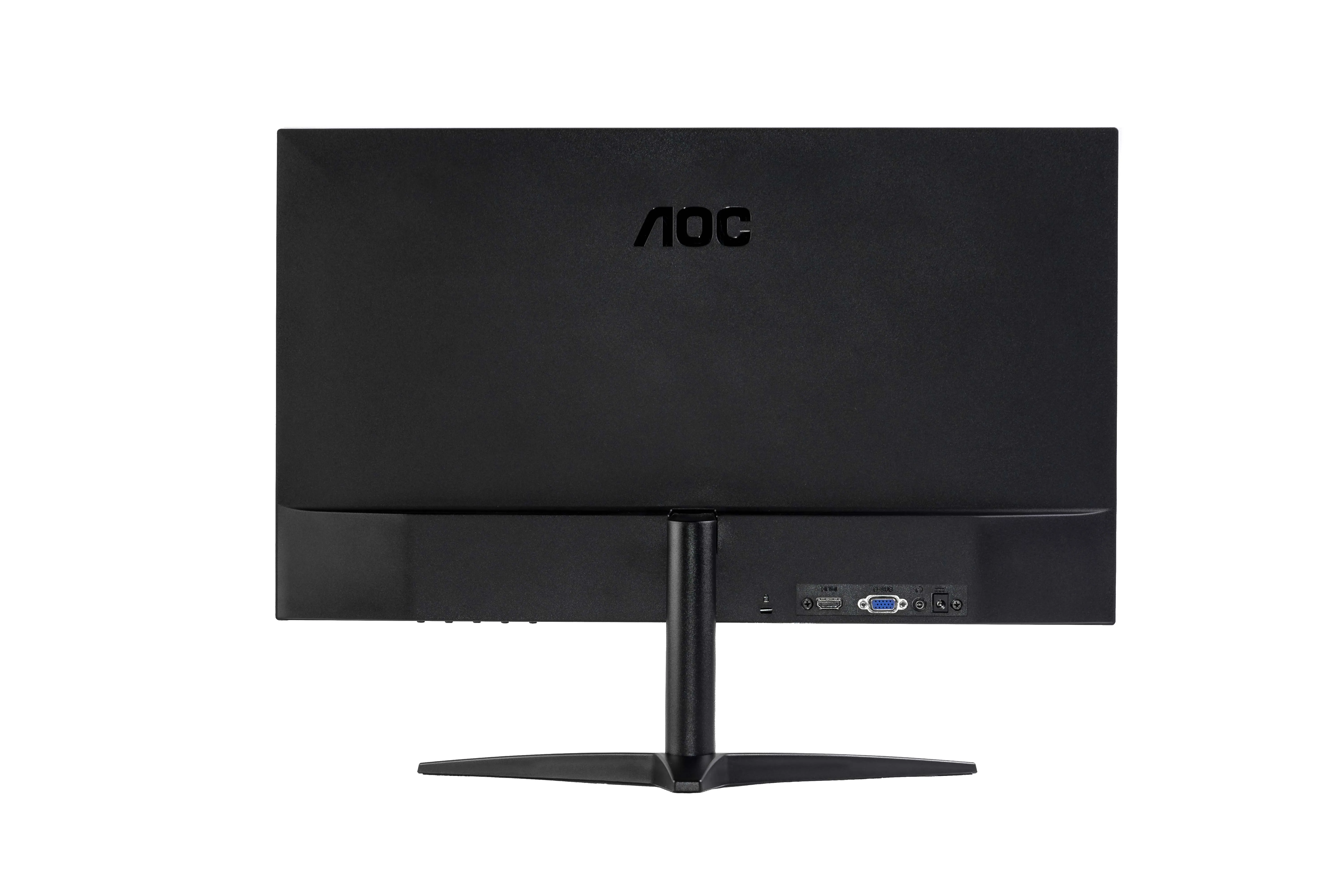

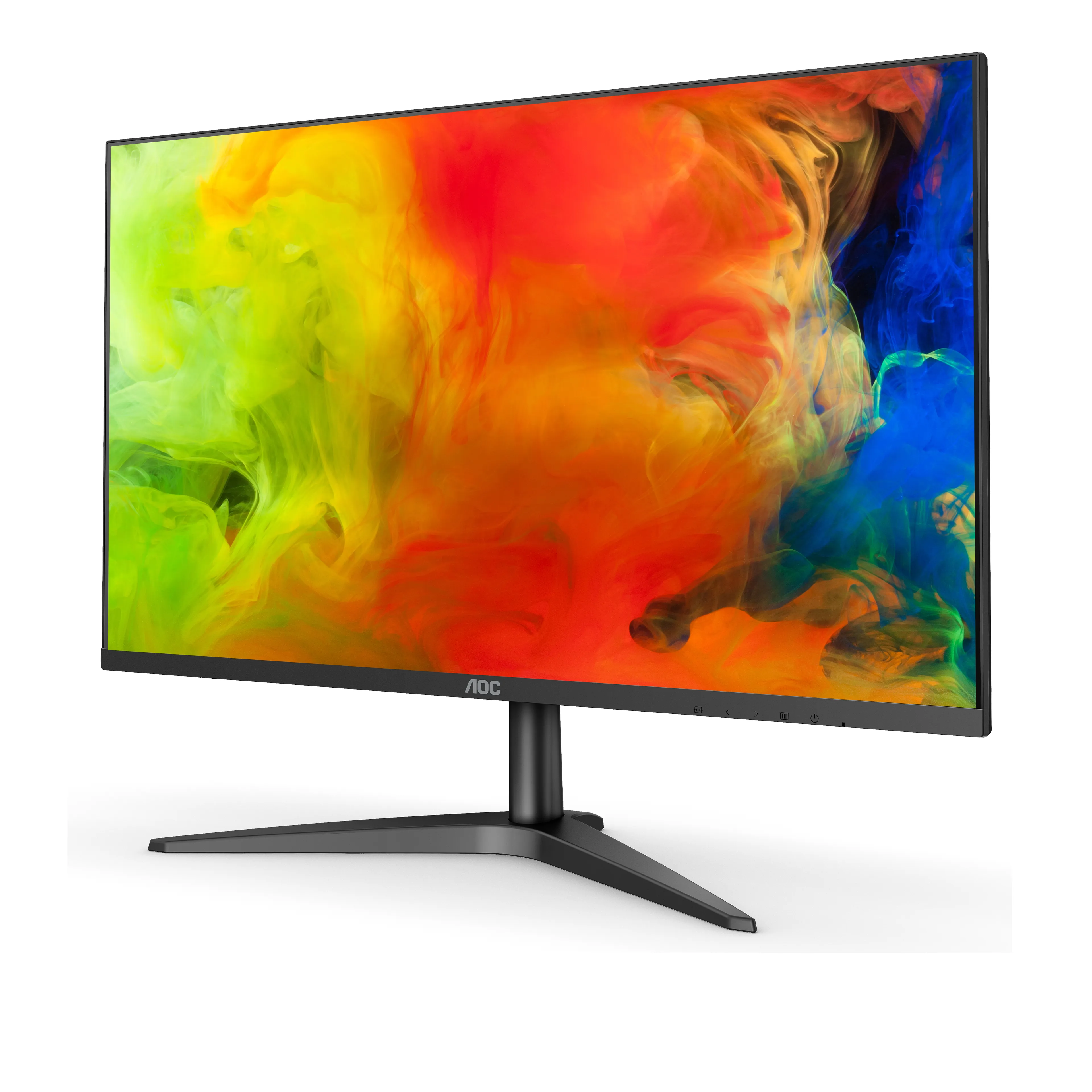

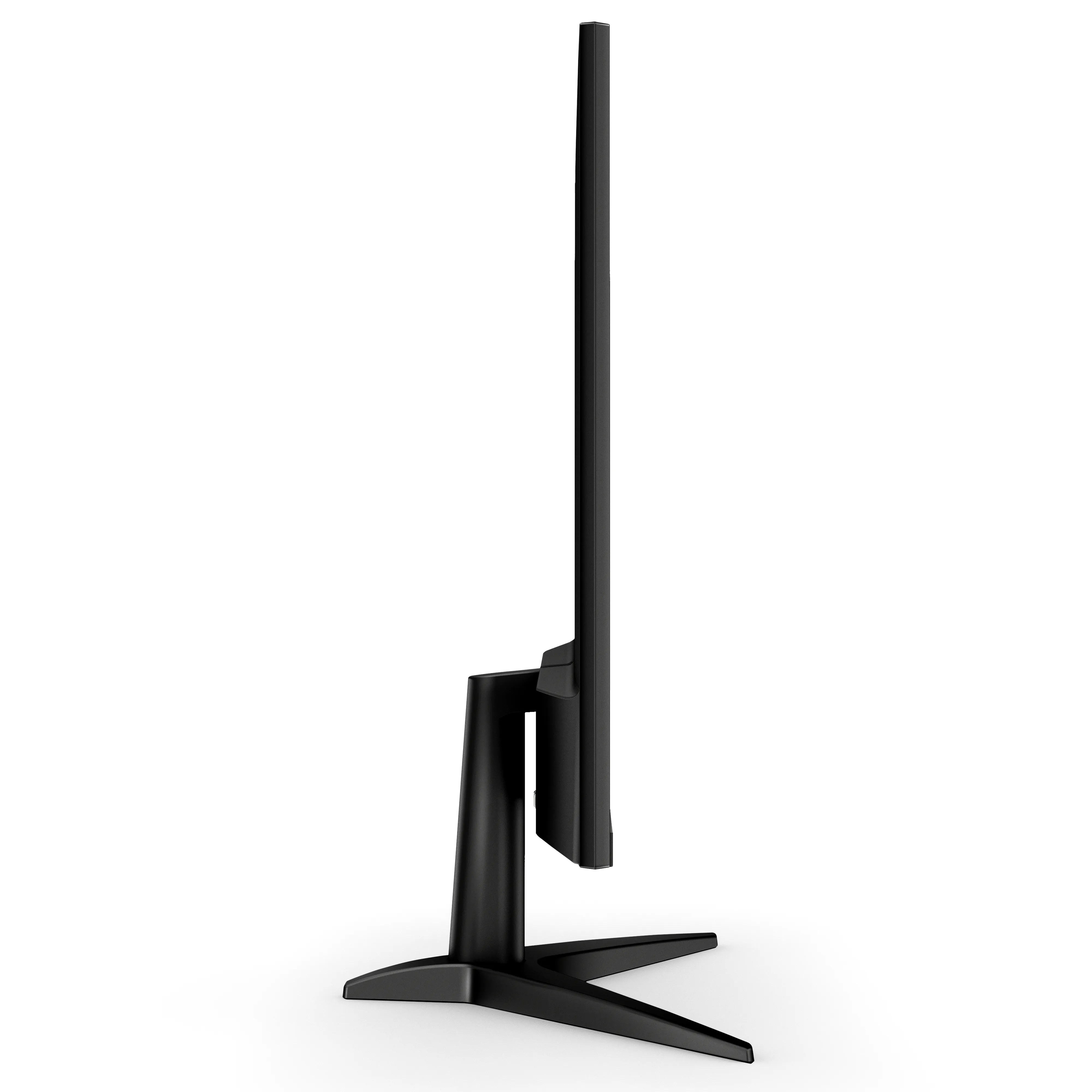

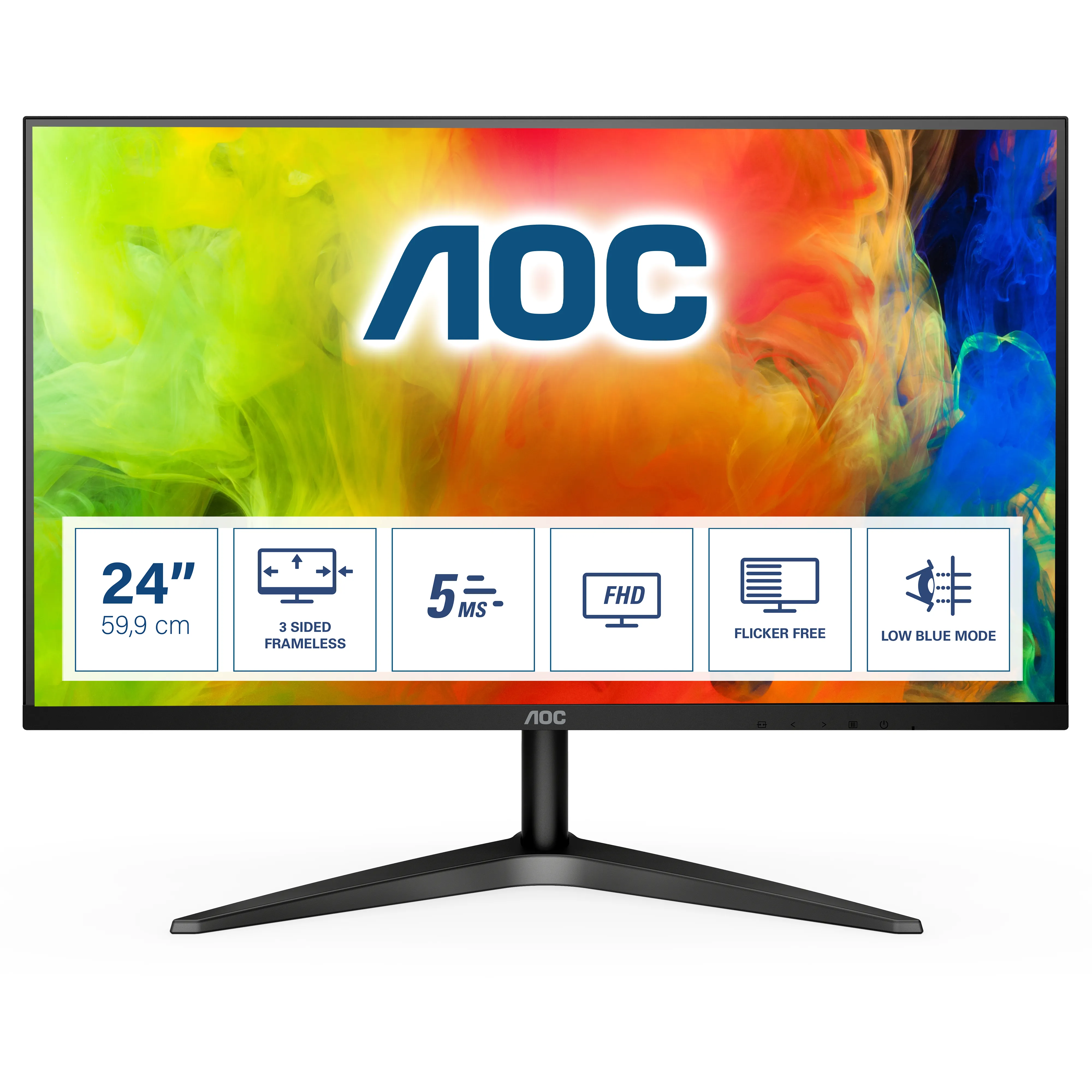

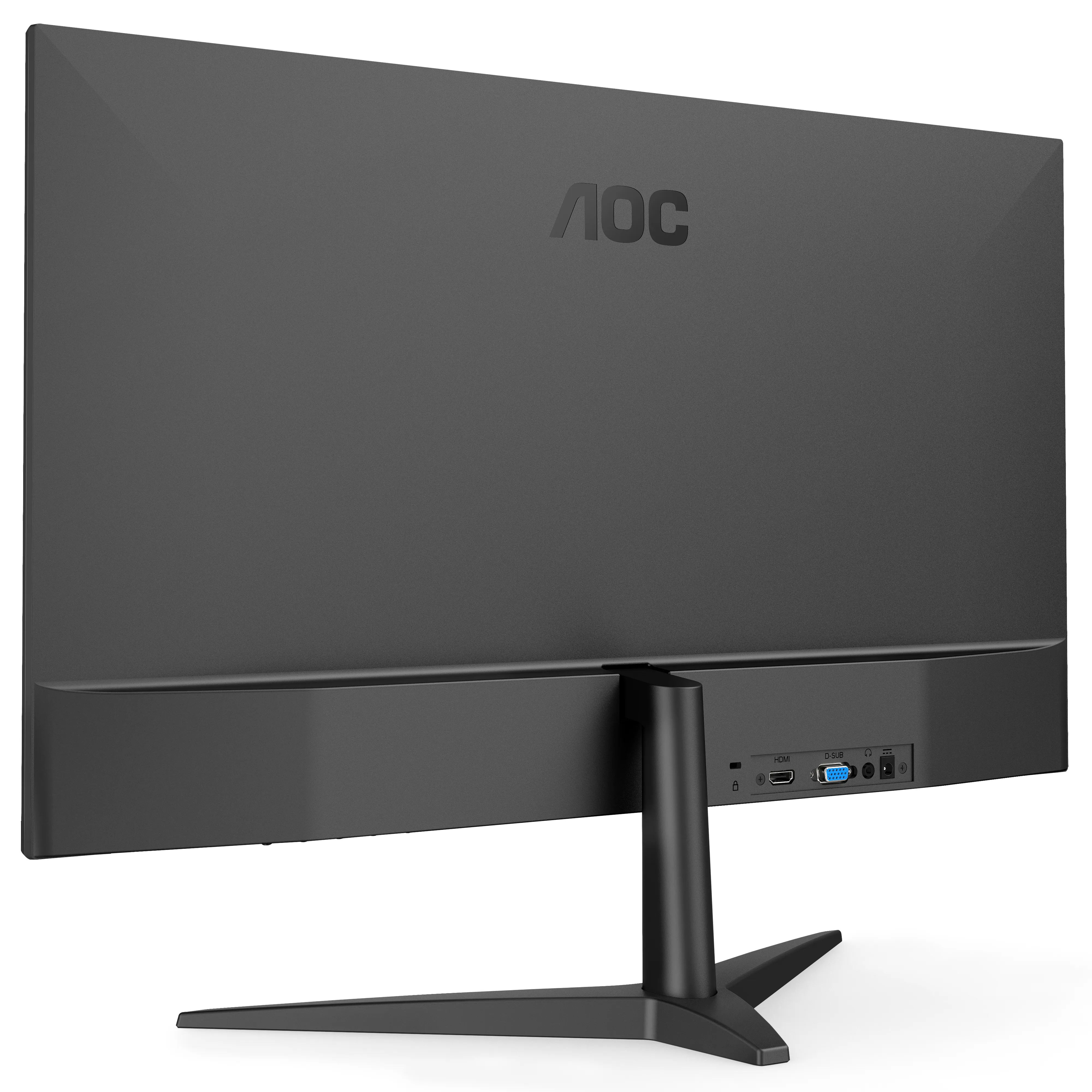

AOC 23.6" 24B1H, Full HD, MVA - monitor

Display
Pixel pitch	0.2715 x 0.2715 mm
Contrast ratio (typical)	3000:1
Horizontal scan range	30 - 83 kHz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Aspect ratio	16:9
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	52.1 cm
Viewable size, vertical	29.3 cm
Display diagonal	59.9 cm (23.6")
Response time	5 ms
Display resolution	1920 x 1080 pixels
Digital horizontal frequency	30 - 83 kHz
Display diagonal (metric)	59.944 cm
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Touchscreen
Contrast ratio (dynamic)	20000000:1
LED backlight
Backlight type	W-LED
Maximum refresh rate	60 Hz
3D
Display technology	LED
Anti-glare screen
Native aspect ratio	16:9
HD type	Full HD
Pixel density	94 ppi
Panel type	MVA
Display surface	Matt
Screen shape	Flat
Display number of colours	16.7 million colours
Surface hardness	3H
sRGB coverage (typical)	100%
Adobe RGB coverage	76%
NTSC coverage (typical)	72%
Display brightness (typical)	250 cd/m²
Response time measurement type	GTG (Gray to Gray)

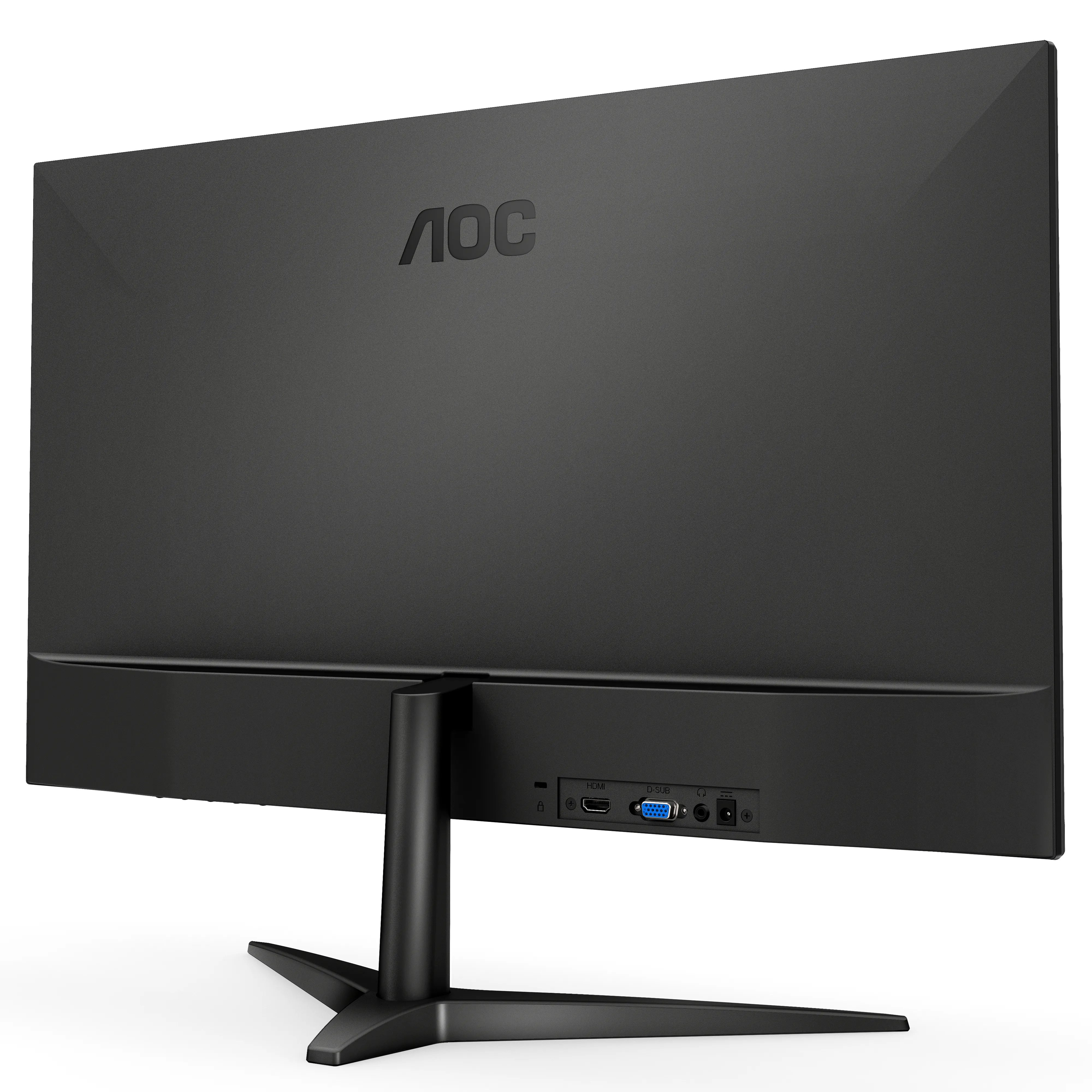

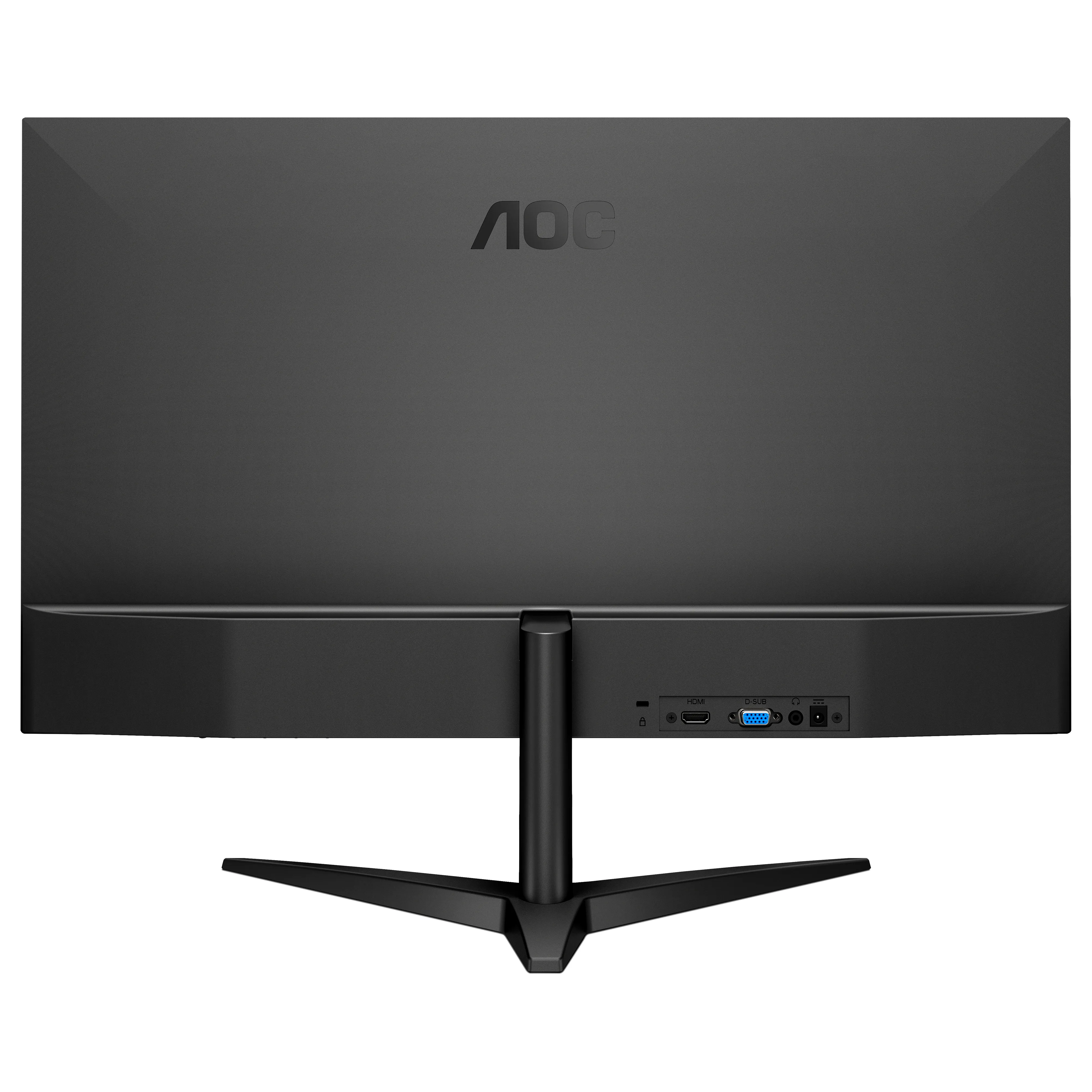

Ports & interfaces
Headphone outputs	1
DVI port
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
Headphone connectivity	3.5 mm
HDMI version	1.4
HDMI
DisplayPorts quantity	0
Headphone out
Built-in USB hub
Weight & dimensions
Width (with stand)	540.1 mm
Height (with stand)	417.4 mm
Depth (with stand)	186.8 mm
Weight (without stand)	2.3 kg
Height (without stand)	540.1 mm
Width (without stand)	318.1 mm
Depth (without stand)	34 mm
Weight (with stand)	2.6 kg
Energy management
Power consumption (typical)	22 W
Power supply type	External
Power consumption (off)	0.5 W
Power consumption (standby)	0.5 W
External power adapter
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Energy efficiency scale	A to G
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	18 kWh
European Product Registry for Energy Labelling (EPREL) code	388959
Operational conditions
Operating altitude	0 - 5000 m
Operating relative humidity (H-H)	10 - 85%
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93%
Non-operating altitude	5000 - 12192 m
Packaging data
Package weight	4.2 kg
Package depth	131 mm
Package height	492 mm
Package width	614 mm
Package type	Box
Ergonomics
Plug and Play
Cable lock slot
Height adjustment
Tilt angle range	-5 - 23°
Pivot

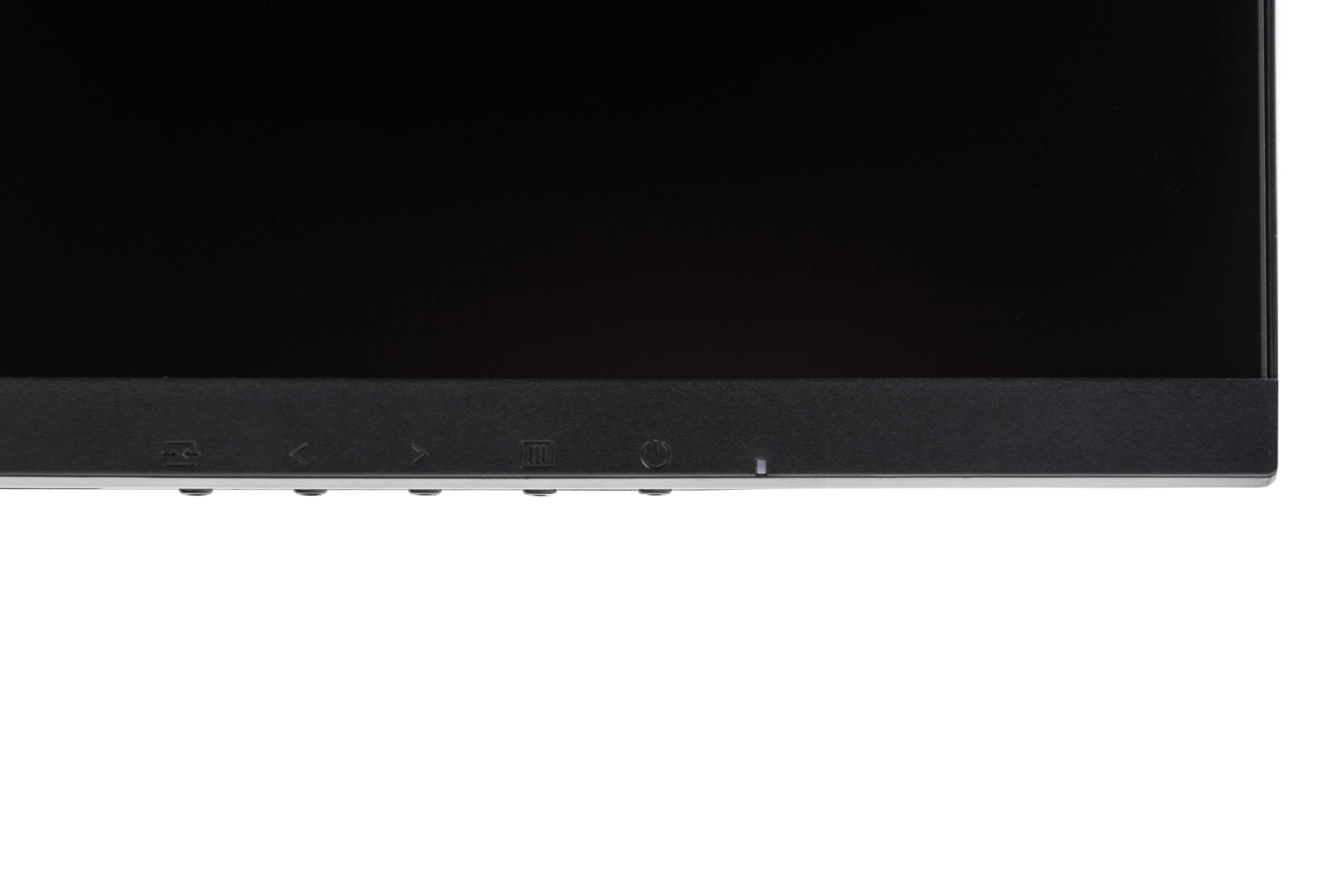

On Screen Display (OSD)
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian
Number of OSD languages	16
Tilt adjustment
Cable lock slot type	Kensington
VESA mounting
Packaging content
Cables included	AC, HDMI
Power cable length	1.5 m
Stand included
HDMI cable length	1.5 m
Other features
Certification	WEEE, CB, TUV-GS-Mark, ISO 9241-307,EAC, FCC, Microsoft WHQL
Mean time between failures (MTBF)	50000 h
TV tuner integrated
Heavy metals free	Hg (mercury)
On/off switch
Recyclable packaging material	100%
Light effects
Exterior finish type	Textured
Bezel thickness type	Frameless
Warranty period	3 year(s)
Compliance certificates	CE
Design
Product colour	Black
Market positioning	Home
Detachable stand
Feet colour	Black
Front bezel colour	Black
Frameless design
Performance
NVIDIA G-SYNC
Flicker-free technology
Low Blue Light technology
Multimedia
Built-in microphone
Built-in speaker(s)
Built-in camera
Logistics data
Harmonized System (HS) code	85285210
Sustainability
Doesn't contain	Mercury
EAN	4038986146364
Source: Icecat.biz

Slim, 3-sides borderless 24" Full HD VA display with super high contrast
Equipped with a VA panel, the 24B1H delivers a staggering 3000:1 static contrast ratio with deep, inky blacks. Its sleek 23.6" panel at 1080p resolution is 3-sides borderless and has an ultra-slim profile of just 12.5 mm that lets you focus on the display practically from every angle (178/178).
