Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Weight & dimensions | |
| Weight | 1.71 kg |
| Radiator width | 40.2 cm |
| Radiator depth | 2.7 cm |
| Radiator height | 12 cm |
| Tube length | 46.5 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Energy management | |
| Pump voltage | 12 V |
| Pump current | 2 mA |
| Fan voltage | 12 V |
| Fan current | 0.15 A |
| Fan power consumption | 1.8 W |
| Pump power consumption | 2.4 W |
| Packaging content | |
| Package type | Box |
| Mounting kit |  |
| Design | |
| Number of fans | 3 fan(s) |
| Fan connector | 4-pin |
| Radiator material | Aluminium |
| Illumination LED | |
| Performance | |
| Type | All-in-one liquid cooler |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Suitable location | Processor |
| Minimum airflow (imperial) | 64.4 cfm |
| Pump motor speed | 2550 RPM |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 500 RPM |
| Quantity per pack | 1 pc(s) |
| Fan noise level (min) | 32.1 dB |
| Pump noise level | 17.8 dB |
| Pulse-width modulation (PWM) support | |
| Pump connector | 3-pin |
| Fan static pressure | 2.33 mmH2O |
| EAN | 6933412726869 |
| Source: Icecat.biz | |

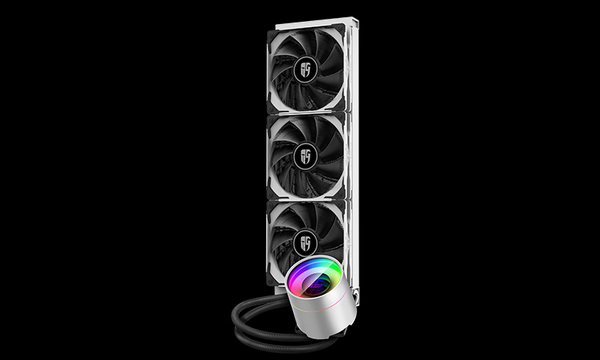

25% more skived fins on the back side of the copper base, the heat absorption area extensively increased.
Flow route optimized to reduce operation noise and energy loss.
3 specially tuned TF120 S fans are included (in matching the radiator's properties).
Customizable Logo, exciting DIY experience.
Ultra large copper base, extensive compatibility (including TR4).
5V Addressable RGB, adjustable through the motherboard, or included the controller.
| Radiator Dimensions | 402×120×27 mm |
| Radiator Material | Aluminum |
| Net Weight | 1705 g |
| Tube length | 465 mm |
| Pump Dimensions | 86×75×71 mm |
| Pump Speed | 2550 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.2 A |
| Pump Power Consumption | 2.4 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~1800 RPM±10% |
| Fan Airflow | 64.4 CFM |
| Fan Air Pressure | 2.33 mmAq |
| Fan Noise | ≤32.1 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.15 A |
| Fan Power Consumption | 1.8 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.25 W（PUMP） |
