Lenovo Legion T530. Intel Core i5-9400F, 16GB RAM, 512GB M.2 SSD, GeForce RTX 6GB, Win 10 Home
This product is end of life or currently not available.
Processor | |
Processor model | i5-9400F |
Number of processors installed | 1 |
Processor manufacturer | Intel |
Processor lithography | 14 nm |
Processor family | Intel Core i5 |
Processor socket | LGA 1151 |
Processor cores | 6 |
System bus rate | 8 GT/s |
Processor threads | 6 |
PCI Express slots version | 3.0 |
Processor operating modes | 64-bit |
Processor boost frequency | 4.10 GHz |
Graphics processor family | NVIDIA |
Processor cache | 9 MB |
Tjunction | 100 °C |
Bus type | DMI3 |
PCI Express configurations | 1x8+2x4,1x16,2x8 |
Processor frequency | 2.90 GHz |
Thermal Design Power (TDP) | 65 W |
Processor codename | Coffee Lake |
Maximum number of PCI Express lanes | 16 |
Processor cache type | Smart Cache |
Maximum internal memory supported by processor | 128 GB |
Memory types supported by processor | DDR4-SDRAM |
Memory clock speeds supported by processor | 2666 MHz |
Memory bandwidth supported by processor (max) | 41.6 GB/s |
Memory | |
Internal memory type | DDR4 |
Memory slots | 2x DIMM |
Maximum internal memory | 32 GB |
Memory clock speed | 2666 MHz |
Memory channels | Dual-channel |
Memory layout (slots x size) | 2 x 8 GB |
Internal memory | 16 GB |
Optical drive | |
Optical drive type | N |
Ports & interfaces | |
USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
Headphone outputs | 1 |
Microphone in | |
HDMI ports quantity | 1 |
Combo headphone/mic port | |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.1 (3.1 Gen 2) Type-A ports quantity | 2 |
Weight & dimensions | |
Weight | 12 kg |
Height | 440 mm |
Width | 184.5 mm |
Depth | 456 mm |
Energy management | |
Power supply | 350 W |
Networking | |
Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
Cabling technology | 10/100/1000Base-T(X) |
Bluetooth version | 4.1 |
Ethernet LAN | |
Antenna type | 2x2 |
Bluetooth | |
Wi-Fi | |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Storage | |
Total storage capacity | 512 GB |
Number of HDDs installed | 1 |
Number of SSDs installed | 1 |
Storage media | M.2 |
Number of storage drives installed | 1 |
Operating system/software | |
Operating system installed | Windows 10 Home |
Operating system architecture | 64-bit |
Packaging content | |
Mouse included | |
Keyboard included | |
Design | |
Chassis type | Tower |
Product colour | Black |
Placement supported | Vertical |
Volume | 28 L |
Housing material | Metal |
Graphics | |
On-board graphics card model | Not available |
Discrete graphics card model | NVIDIA GeForce RTX 2060 |
Number of discrete graphics adapters | 1 |
Discrete graphics adapter memory | 6 GB |
Discrete graphics adapter | |
Processor special features | |
Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
Intel® Identity Protection Technology (Intel® IPT) | |
Intel® Hyper Threading Technology (Intel® HT Technology) | |
Intel® Turbo Boost Technology | 2.0 |
Intel® AES New Instructions (Intel® AES-NI) | |
Enhanced Intel SpeedStep Technology | |
Execute Disable Bit | |
Idle States | |
Thermal Monitoring Technologies | |
Intel Trusted Execution Technology | |
Scalability | 1S |
CPU configuration (max) | 1 |
Intel Enhanced Halt State | |
Intel VT-x with Extended Page Tables (EPT) | |
Embedded options available | |
Intel TSX-NI | |
Intel® Secure Key | |
Thermal solution specification | PCG 2015C |
Intel 64 | |
Intel Stable Image Platform Program (SIPP) | |
Intel® OS Guard | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel Software Guard Extensions (Intel SGX) | |
Intel Identity Protection Technology version | 1.00 |
Intel Secure Key Technology version | 1.00 |
Intel Virtualization Technology (VT-x) | |
Intel Stable Image Platform Program (SIPP) version | 0.00 |
Intel TSX-NI version | 0.00 |
Processor package size | 37.5 x 37.5 mm |
Processor ARK ID | 190883 |
Performance | |
Motherboard chipset | Intel B360 |
Audio system | High Definition Audio |
Password protection type | Power on, Supervisor |
Market positioning | Gaming |
Product type | PC |
Password protection | |
Audio chip | Realtek ALC233 |
EAN | 0193638663249 |
Warranty | 2 years |
The gaming tower, refined
Ready to see tower gaming mastered? Meet the Legion T530 Tower, featuring a bold new look that houses the latest Intel® gaming processors, discrete graphics, DDR4 memory, PCIe SSD storage, and dual-channel cooling—all with external red system lighting.
An evolution of style
Perfecting the gaming tower, the 28L Lenovo Legion T530 Tower was designed with a stylish exterior to its powerful components. A refined front grill accents its Raven Black chassis, rounded out by full red system lighting. Truly a breathtaking gaming PC, the Legion T530 brings you an evolved design that’s a feast for the eyes.
Designed for what's next
The Legion T530 features 8th Gen Intel® Core™ processors. This enhanced platform gives you the processing power needed for high settings and smooth gameplay with your favourite titles.
Gaming, perfected
The Legion T530 offers up to the NVIDIA® GeForce® GTX 1060 graphics card, which is loaded with innovative new gaming technologies—making it the perfect choice for the latest high-definition games. Powered by NVIDIA Pascal™—the most advanced GPU architecture ever created—the GeForce GTX 1060 delivers brilliant performance for your favourite titles, opening the door to virtual reality and beyond.
Re-engineered, inside…
Rocking a dual-channel thermal system, our Legion T530 was engineered from the ground up to combat heat, delivering cooler system temperatures, reduced fan noise, and improved performance. Dedicated thermal channels for both your GPU and CPU deliver top-tier system performance the likes of which you’ve never seen.
...and out

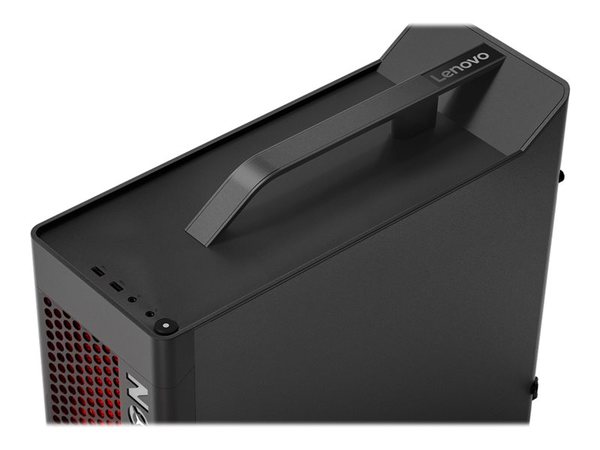

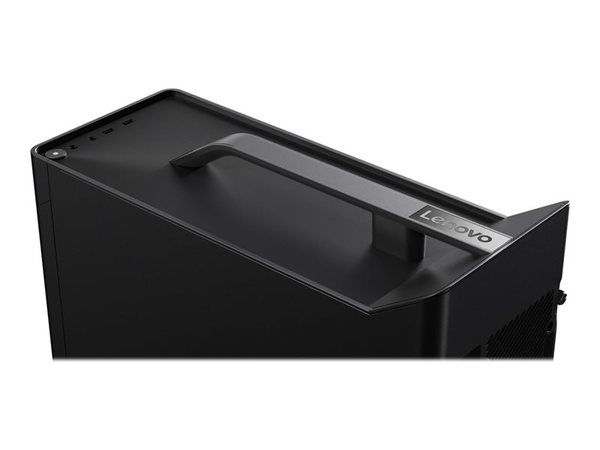

In addition to its epic gaming performance, the Legion T530 comes with all the tools you need for easy updates. And by that, we mean no tools, because you won’t need them. This tower has an integrated upgrade handle, making it easy to install new hardware when the time comes, without the need for special tools. Integrated cable management makes maintenance even easier. Game the way you want—now and in the future.
Moving audio with Dolby Atmos®
Dolby Atmos® creates an amazing headphone experience with breathtaking, moving audio that flows above and around you. You’ll feel like you’re inside the action as sound comes alive with richness and depth, and seems to move in three-dimensional space. Immersive and emotive, Dolby Atmos is sound you can feel—sound that creates a powerfully moving entertainment experience.
