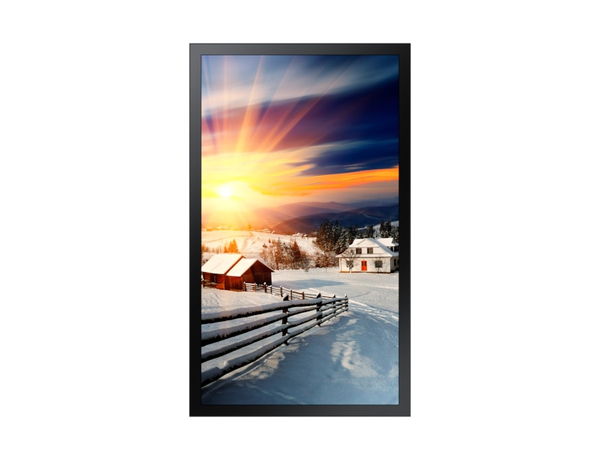

SAMSUNG 85" OH85N-S UHD 3000 NITS 24/7 OUTDOOR HIGH BRIGHTNESS SOC
Display | |
Pixel pitch | 0.4875 x 0.4875 mm |
Contrast ratio (typical) | 3000:1 |
Horizontal scan range | 15 - 135 kHz |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Vertical scan range | 24 - 75 Hz |
Display diagonal | 2.16 m (85") |
Display brightness | 3000 cd/m² |
Response time | 8 ms |
Display resolution | 4K 3840 x 2160 pixels |
Display technology | VA |
HD type | 4K Ultra HD |
Colour saturation | 72% |
Audio | |
Built-in speaker(s) | ![]() |
Ports & interfaces | |
Ethernet LAN | ![]() |
Ethernet LAN (RJ-45) ports | 1 |
DVI port | ![]() |
Wi-Fi | ![]() |
HDMI ports quantity | 2 |
RS-232 interface | ![]() |
DisplayPorts quantity | 1 |
PC Audio out | ![]() |
DisplayPorts in | 1 |
USB ports quantity | 1 |
USB port | ![]() |
2 | |
Weight & dimensions | |
Weight | 163 kg |
Height | 1185 mm |
Width | 2004 mm |
Depth | 120 mm |
Energy management | |
Power consumption (typical) | 1800 W |
Power consumption (sleep) | 0.5 W |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Energy efficiency scale | A+++ to D |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 80% |
Operating temperature (T-T) | -30 - 50 °C |
Packaging data | |
Package weight | 185.5 kg |
Package depth | 495 mm |
Package height | 1383 mm |
Package width | 2175 mm |
Other features | |
Annual energy consumption | 876 kWh |
Glass protection | ![]() |
Energy efficiency class (old) | D |
Design | |
Product colour | Black |
Placement supported | Indoor/outdoor |
Product design | Digital signage flat panel |
Bezel width (side) | 6.2 cm |
Bezel width (top) | 6.2 cm |
Bezel width (bottom) | 6.2 cm |
VESA mounting | ![]() |
Orientation | Vertical |
Performance | |
Purpose | Universal |
International Protection (IP) code | IP56 |
Operating hours (hours/days) | 24/7 |
Computer system | |
Operating system installed | Tizen |
Computer system | ![]() |
Computer system type | System on Chip (SoC) |
EAN | 8801643520847 |
Warranty | 3 years |
Source: Icecat.biz |
Large displays optimized for DOOH
The OHN series has elevated the typical outdoor advertising experience with its bold and engaging content delivery for any bus stop or street billboard. The OHN series will make any business standout from the crowd with its immersive and high-quality images and content.
Unsurpassable visibility day and night
The OHN series allows for exceptional, consistent content delivery with 3,000nit brightness and 24/7 performance. With a built-in dimming sensor, the display automatically adjusts the brightness based on the external lighting environment, saving display operating expenses and power consumption.
Easy-to-use management software
The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the display’s overall performance, allows for painless content management and ensures seamless transition and playback.
Built strong to endure impacts
The OHN series provides advanced safety through tempered Magic Protection Glass. It features durability that is IK10-rated, further proving its robust level of strength that can endure physical impact.
Resistant to outdoor elements
The OHN series is verified to perform in outdoor settings. IP56-rated protection ensures the OHN series will withstand physical impact as well as dust, humidity or other outdoor elements that could affect the display.
