Vaddio EasyIP Ecosystem Base Kit (White) - (Camera (white) + Decoder + Switch)
Manufacturer: VADDIO
ID: 999-30201-001W
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Audio | |
| Noise reduction | ![]() |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Weight & dimensions | |
| Weight | 1.26 kg |
| Height | 44 mm |
| Width | 213 mm |
| Depth | 152 mm |
| Camera weight | 1.36 kg |
| Camera dimensions (WxDxH) | 155 x 145 x 163 mm |
| Interface module dimensions (W x D x H) | 439.4 x 209.6 x 44.5 mm |
| Interface module weight | 2.81 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Networking | |
| Ethernet LAN | ![]() |
| Video | |
| Aspect ratio | 3:2, 4:3, 16:9 |
| Resolution at capture speed | 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps |
| Supported video modes | 720p, 1080i, 1080p |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Camera | |
| Megapixel (approx.) | 2.38 MP |
| Aperture range (F-F) | 1.8 - 3.4 |
| White balance | Auto, Manual, One push |
| Focal length range | 3.8 - 38 mm |
| Sensor type | CMOS |
| Minimum illumination | 100 lx |
| Back Light Compensation (BLC) | ![]() |
| Wide Dynamic Range (WDR) | ![]() |
| Horizontal field of view | 67° |
| Effective sensor resolution | 2.14 MP |
| Image sensor size | 1/2.8" |
| Optical zoom (normal mode) | 10x |
| Aperture number of steps | 16 |
| Number of camera presets | 16 |
| Packaging content | |
| Cables included | AC, LAN (RJ-45), USB |
| Mounting kit | ![]() |
| Packaging content | EasyIP 10 Camera (black or white) Thin Profile Wall Mount with mounting hardware Vaddio IR Remote Commander EasyIP Switch Rack mount kit (for mounting the EasyIP Switch) EasyIP Decoder Half-Rack mounting kit (for mounting the EasyIP Decoder into a full rack space) 10 ft (3.05m) cat-5e snagless Cable, black 3 ft (0.91 m) cat-5e cable 6 ft (1.8 m) USB 3.0 cable 1 qty 4-position phoenix-style connector Power cord (for EasyIP Switch) Quick-Start Guides |
| Performance | |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Product colour | Black, White |
| Tilt angle range | -30 - 90° |
| Pan range | -165 - 165° |
| Pan speed | 90 °/sec |
| Tilt speed | 90 °/sec |
| PTZ control | ![]() |
| Product type | Group video conferencing system |
| Features | |
| Telepresence | ![]() |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Interface module | |
| Interface module RJ-45 ports quantity | 16 |
| EAN | 0840077505813 |
| Source: Icecat.biz | |
The EasyIP Ecosystem is an AV-over-IP conferencing system in a box. It delivers professional-quality conference feeds for UC soft clients and simplifies the BYOD conferencing experience by moving videoconferencing onto the network.
This networked videoconferencing system allows you to use up to four PTZ cameras in your meeting room, without needing a video switch. It’s a simple AV-over-IP solution for extended and networked conferencing in meeting rooms, boardrooms and training rooms alike.

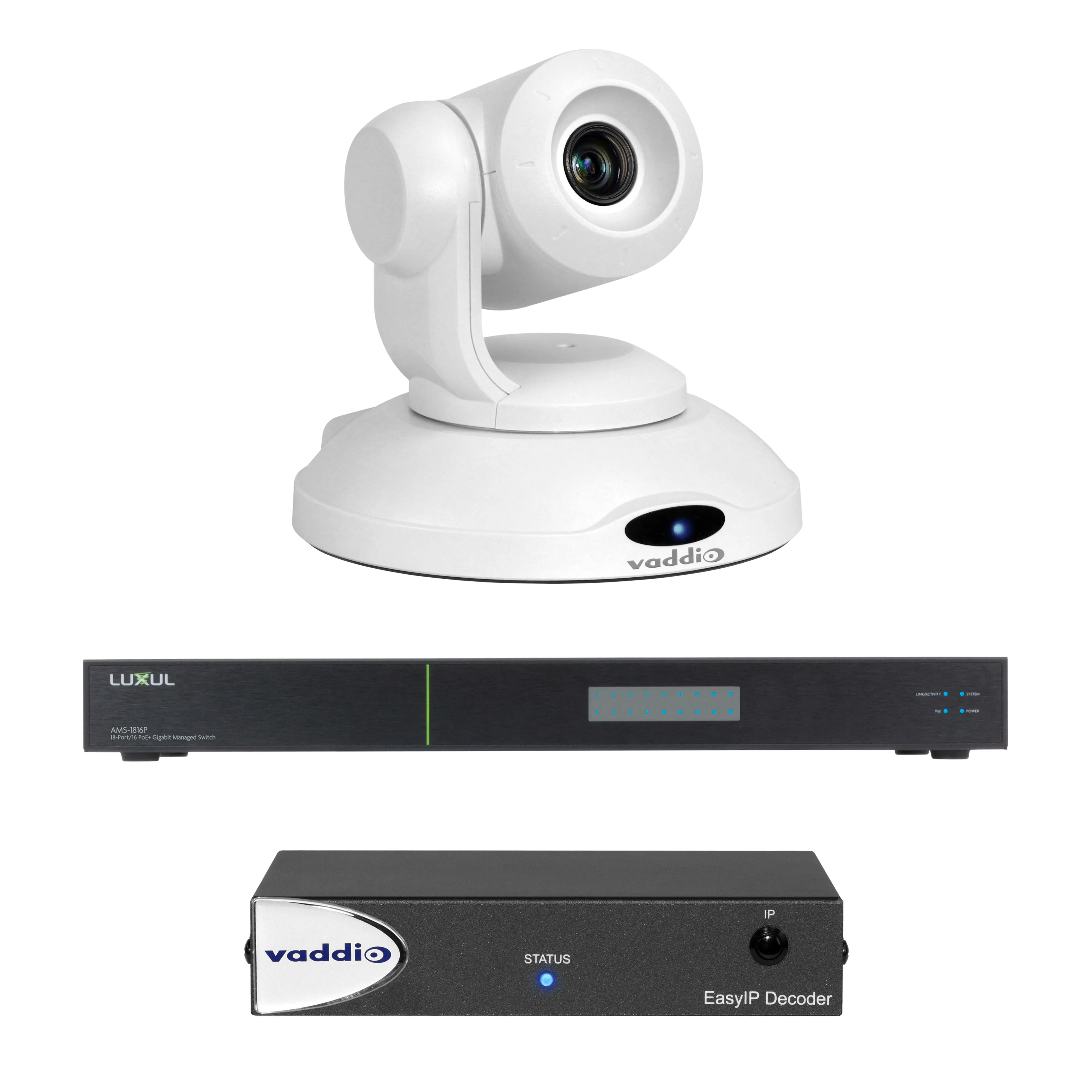

The Base Kit includes everything you need to get started with AV-over-IP conferencing in one easy-to-order bundle including one EasyIP Camera, one EasyIP Decoder and one Luxul AMS-1208p Switch.
The EasyIP Base Kit includes everything you need to get started with AV-over-IP conferencing in one easy-to-order bundle.
This Package Includes:
- EasyIP 10 Camera (black or white)

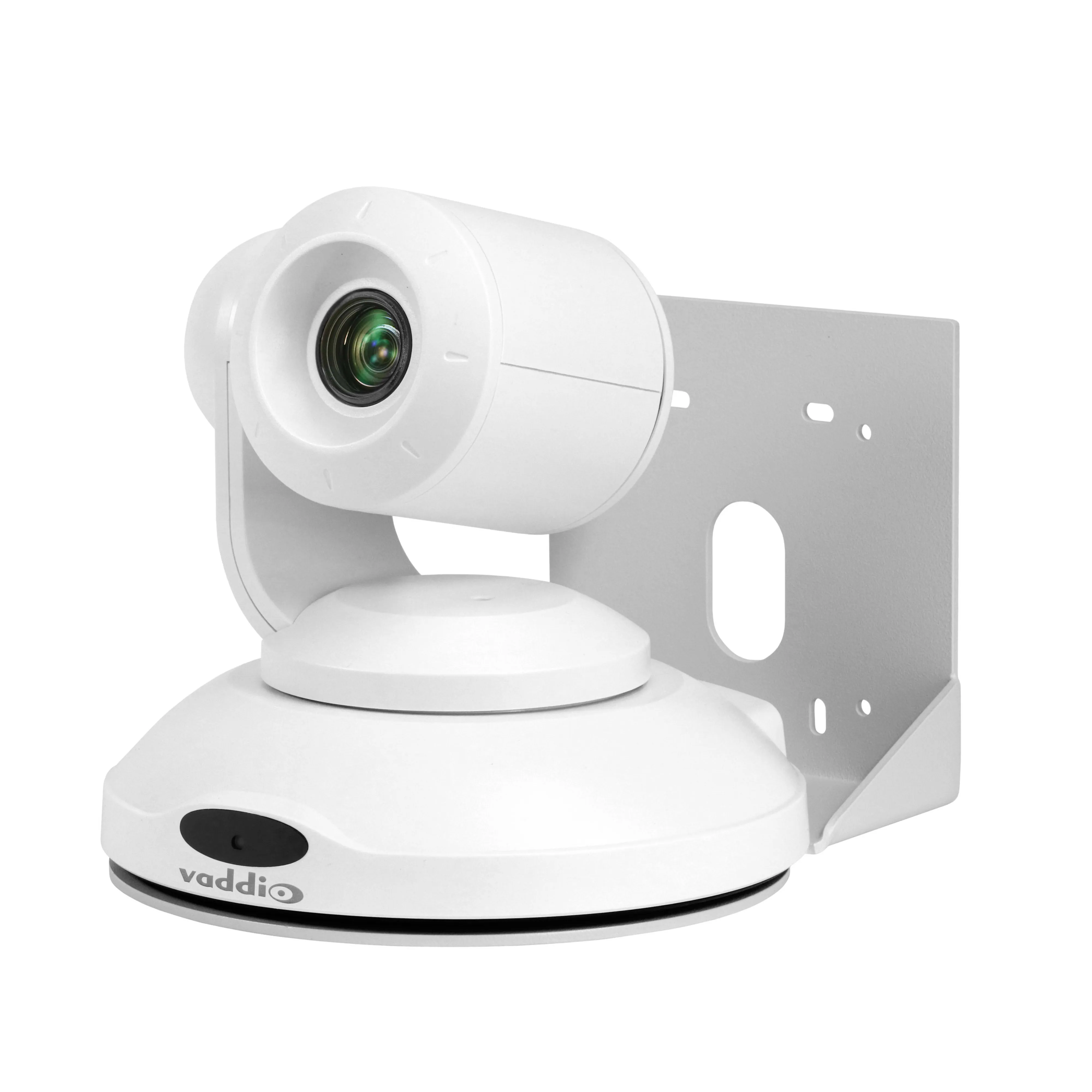

- Thin Profile Wall Mount with mounting hardware
- Vaddio IR Remote Commander
- EasyIP Switch
- Rack mount kit (for mounting the EasyIP Switch)
- EasyIP Decoder
- Half-Rack mounting kit (for mounting the EasyIP Decoder into a full rack space)
- 10 ft (3.05m) cat-5e snagless Cable, black
- 3 ft (0.91 m) cat-5e cable
- 6 ft (1.8 m) USB 3.0 cable
- 1 qty 4-position phoenix-style connector
- Power cord (for EasyIP Switch)
- Quick-Start Guides
This networked videoconferencing system allows you to use up to four PTZ cameras in your meeting room, without needing a video switch. It’s a simple AV-over-IP solution for extended and networked conferencing in meeting rooms, boardrooms and training rooms alike.
The Base Kit includes everything you need to get started with AV-over-IP conferencing in one easy-to-order bundle including one EasyIP Camera, one EasyIP Decoder and one Luxul AMS-1208p Switch.
The EasyIP Base Kit includes everything you need to get started with AV-over-IP conferencing in one easy-to-order bundle.
This Package Includes:
- EasyIP 10 Camera (black or white)
- Thin Profile Wall Mount with mounting hardware
- Vaddio IR Remote Commander
- EasyIP Switch
- Rack mount kit (for mounting the EasyIP Switch)
- EasyIP Decoder
- Half-Rack mounting kit (for mounting the EasyIP Decoder into a full rack space)
- 10 ft (3.05m) cat-5e snagless Cable, black
- 3 ft (0.91 m) cat-5e cable
- 6 ft (1.8 m) USB 3.0 cable
- 1 qty 4-position phoenix-style connector
- Power cord (for EasyIP Switch)
- Quick-Start Guides
