| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| AC outlets quantity | 5 AC outlet(s) |
| RS-232 ports | 1 |
| Power plug | Terminal |
| AC outlet types | C19 coupler, Terminal |
| USB port |  |
| Weight & dimensions | |
| Weight | 84 kg |
| Height | 260 mm |
| Width | 440 mm |
| Depth | 700 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging data | |
| Bundled software | Intelligent Power Software suite |
| Rack mount kit | |
| Management card included | |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 20 min |
| Hot-swap battery | |
| Automatic battery test | |
| Other features | |
| Interface | USB, RS232 |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Design | |
| Certification | IEC/EN 62040-1, UL 1778, IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 (Performance), CE, CB report (TUV) |
| Safety | IEC/EN 62040-1, UL 1778 |
| Form factor | Rackmount/Tower |
| LED indicators | |
| Product colour | Black |
| Rack capacity | 6U |
| Display type | LCD |
| Features | |
| Output power capacity | 8 kVA |
| Noise level | 48 dB |
| Input frequency | 40/70 Hz |
| Efficiency | 0.95% |
| Output power | 7200 W |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Crest factor | 3:1 |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 176 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Waveform | Pure sine |
| UPS topology | Double-conversion (Online) |
| EAN | 0743172040268 |
| Warranty | 2 years |
| Source: Icecat.biz | |

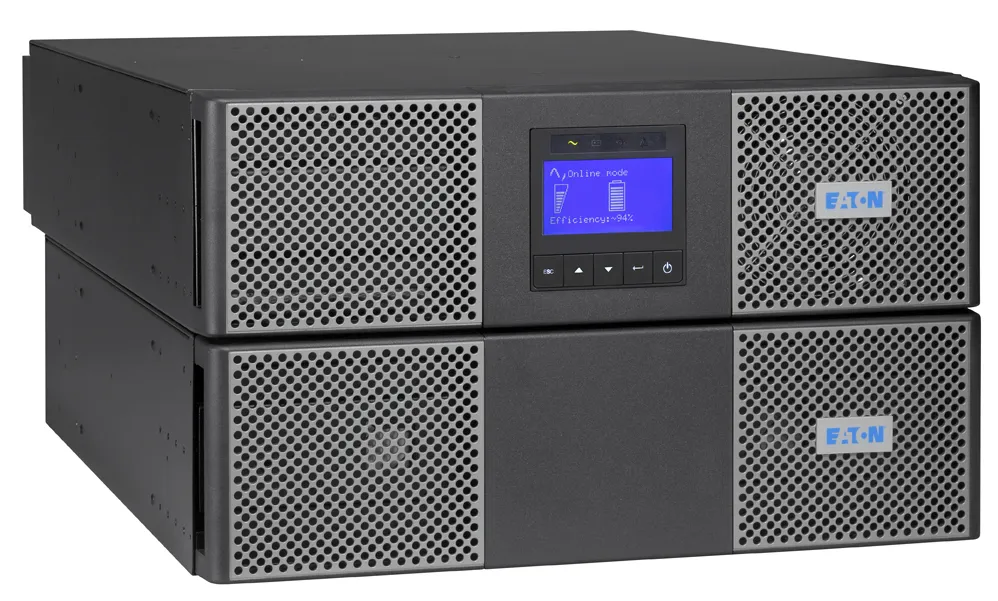

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- Online double conversion topology
- Energy efficient (up to 95% in Online mode, 98% in high-efficiency mode, ENERGY STAR® qualified UPS)
- Next-generation graphical LCD display (7 languages)
- Provides more real power (watts) to protect more equipment with a 0.9 power factor
- Parallel operation using HotSync technology (available in Q2 2013)
- Maintenance ByPass available as standard (on HotSwap/BP version)
- Energy metering - kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
