This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Processor | |
Processor manufacturer | Intel |
Processor socket | LGA 1366 |
Memory | |
Maximum internal memory | 1.54 TB |
Memory voltage | 1.2 V |
Supported memory clock speeds | 2133,2400,2666 MHz |
Supported memory types | DDR4 |
Maximum RDIMM memory | 384 GB |
Weight & dimensions | |
Width | 305 mm |
Depth | 244 mm |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 10 - 35 °C |
Storage relative humidity (H-H) | 20 - 90% |
Networking | |
Ethernet LAN | |
LAN controller | Intel® I210-AT |
Wi-Fi | |
Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
Internal I/O | |
USB 2.0 connectors | 1 |
CPU fan connector | |
Chassis intrusion connector | |
TPM connector | |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
Number of SATA III connectors | 13 |
Serial port headers | 1 |

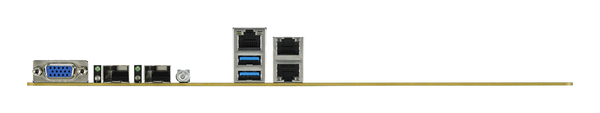

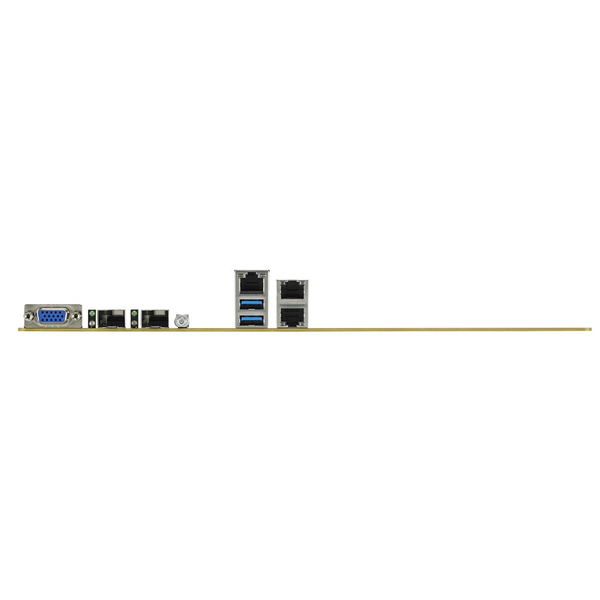

Back panel I/O ports | |
Ethernet LAN (RJ-45) ports | 2 |
VGA (D-Sub) ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Storage controllers | |
Supported storage drive interfaces | SATA III |
Packaging data | |
Package weight | 1.62 kg |
Packaging content | |
Cables included | SATA |
Expansion slots | |
PCI Express x16 (Gen 3.x) slots | 2 |
Other features | |
Weight | 970 g |
Number of DIMM slots | 12 |
Supported RDIMM module capacity | 4GB, 8GB, 16GB, 32GB |
Number of processors supported | 1 |
Supported LRDIMM module capacity | 32GB, 64GB |
Maximum LRDIMM memory | 768 GB |
PCI Express x8 (Gen 3.x) slots | 2 |
Graphics | |
On-board graphics card model | Aspeed AST2500 |
On-board graphics card memory | 64 MB |
Features | |
Motherboard form factor | ATX |
EAN | 4712900812718 |
Warranty | 1 year |
Unmatched memory expandability with 12 DIMM slots
ASUS Z11PA-U12/10G-2S features 12 DIMM slots — the most on any compact ATX motherboard — giving it unmatched memory expandability. Together with support for dual double-deck GPUs, Z11PA-U12/10G-2S makes an ideal platform for deep learning application development and education.
High-speed networking with dual 10 Gigabit SFP+
With dual 10 Gigabit SFP+ modules, ASUS Z11PA-U12/10G-2S delivers blazingly fast networking speeds for both intranet and internet connections. Additionally, Intel® Virtual RAID on CPU (VROC) works with dual OCuLink connectors to enable both RAID 0 configurations for increased data transfer speeds and RAID 1 for instant data redundancy.
Dual OCuLink for efficient connections to NVMe devices
ASUS Z11PA-U12/10G-2S features dual onboard OCuLink to provide efficient port-to-port connection with most OCuLink-supported NVMe devices, eliminating the need for PCIe transaction cards.
Connect up to 13 6Gb/s SATA storage devices
ASUS Z11PA-U12/10G-2S comes with three mini-SAS HD connectors that support up to twelve SATA ports each for high-speed 6Gb/s connectivity with external devices and cleaner cable routing. Additionally, a 7-pin SATA port provides flexibility to connect an optical drive or extra SATA device.
Comprehensive IT infrastructure management solution
The latest ASMB9-iKVM module enables remote BIOS updates, fan control, standalone KVM with HTML 5 interface, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching. Learn more about ACC
Increased energy efficiency with ASUS ProCool Power Connectors
ASUS Z11PA-U12/10G-2S comes with ASUS ProCool Power Connectors, which decrease power connector temperature for reduced power loss and increased cost savings.
Up to 1.5TB RDIMM, LRDIMM 3DS. Support 12 x 128G DDR4-2666MHz
Hybrid M.2 connector x 1 interface. Form factor: 2242, 2260, 2280. Support both PCIE and SATA
