No price development information for this product.

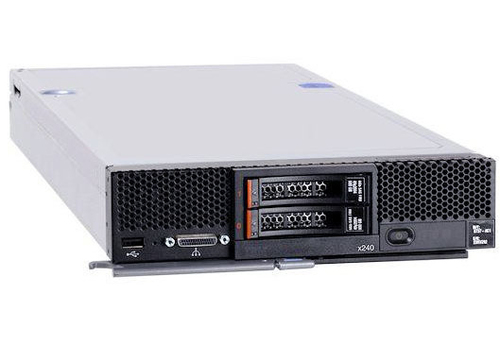

LENOVO EBG FS x240 12C E5-2697v2 130W 2.7GHz/1866MHz/30MB/8GB/10GB Converged Adap
This product is end of life or currently not available.
Processor | |
Processor model | E5-2697V2 |
Motherboard chipset | Intel C600 |
Number of processors installed | 1 |
Processor manufacturer | Intel |
Processor lithography | 22 nm |
Maximum number of SMP processors | 2 |
Processor family | Intel Xeon |
Processor socket | LGA 2011 |
Supported instruction sets | AVX |
Processor cores | 12 |
System bus rate | 8 GT/s |
Processor threads | 24 |
Processor operating modes | 64-bit |
Processor boost frequency | 3.5 GHz |
Processor cache | 30 MB |
Execute Disable Bit | |
Idle States | |
Thermal Monitoring Technologies | |
Scalability | 2S |
Tcase | 86 °C |
FSB Parity | |
Embedded options available | |
Bus type | QPI |
Number of QPI links | 2 |
PCI Express configurations | x4, x8, x16 |
Processor frequency | 2.7 GHz |
Thermal Design Power (TDP) | 130 W |
Processor codename | Ivy Bridge EP |
Maximum number of PCI Express lanes | 40 |
Processor cache type | Smart Cache |
Processor series | Intel Xeon E5-2600 v2 |
Physical Address Extension (PAE) | 46 bit |
Maximum internal memory supported by processor | 768 GB |
Memory types supported by processor | DDR3-SDRAM |
Memory clock speeds supported by processor | 800,1066,1333,1600,1866 MHz |
Memory bandwidth supported by processor (max) | 59.7 GB/s |
Memory channels supported by processor | Quad |
ECC supported by processor | |
Processor package size | 52.5 mm |
Conflict-Free processor | |
Memory | |
Memory slots | 24x DIMM |
Maximum internal memory | 768 GB |
Memory clock speed | 1866 MHz |
Internal memory | 8 GB |
Ports & interfaces | |
USB 2.0 ports quantity | 1 |
Weight & dimensions | |
Package weight | 8 kg |
Height | 56 mm |
Width | 217 mm |
Depth | 492 mm |
Package depth | 603 mm |
Package height | 197 mm |
Package width | 430 mm |
Operational conditions | |
Operating altitude | 0 - 3048 m |
Operating relative humidity (H-H) | 8 - 85% |
Storage temperature (T-T) | 1 - 60 °C |
Operating temperature (T-T) | 5 - 40 °C |
Storage relative humidity (H-H) | 5 - 80% |
Non-operating altitude | 0 - 10700 m |
Networking | |
Ethernet LAN | |
Storage | |
HDD interface | SATA |
RAID levels | 0,1 |
HDD size | 2.5" |
Hot-swap | |
Maximum storage capacity | 6.4 TB |
RAID support | |
Operating system/software | |
Compatible operating systems | Microsoft Windows Server 2008 R2, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 10 and 11, VMware ESX 4 |
Operating system installed | |
Expansion slots | |
PCI Express slots version | 3.0 |
PCI Express x16 (Gen 3.x) slots | 1 |
Other features | |
Graphics card | G200eR2 |
Graphics | |
Maximum graphics card memory | 16 MB |
Processor special features | |
Intel® My WiFi Technology (Intel® MWT) | |
Intel® Identity Protection Technology (Intel® IPT) | |
Intel® Anti-Theft Technology (Intel® AT) | |
Intel® Hyper Threading Technology (Intel® HT Technology) | |
Intel® Turbo Boost Technology | 2.0 |
Intel® Quick Sync Video Technology | |
Intel® InTru™ 3D Technology | |
Intel® Wireless Display (Intel® WiDi) | |
Intel FDI Technology | |
Intel® Clear Video HD Technology (Intel® CVT HD) | |
Intel Dual Display Capable Technology | |
Intel® Insider™ | |
Intel Fast Memory Access | |
Intel Flex Memory Access | |
Intel® AES New Instructions (Intel® AES-NI) | |
Enhanced Intel SpeedStep Technology | |
Intel Trusted Execution Technology | |
CPU configuration (max) | 2 |
Intel Enhanced Halt State | |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | |
Intel VT-x with Extended Page Tables (EPT) | |
Intel Demand Based Switching | |
Intel Rapid Storage Technology | |
Intel® Secure Key | |
Intel 64 | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel Clear Video Technology | |
Intel Identity Protection Technology version | 0.00 |
Intel Secure Key Technology version | 1.00 |
Intel Virtualization Technology (VT-x) | |
Intel TSX-NI version | 0.00 |
Processor ARK ID | 75283 |
EAN | 5051045161640 |
Warranty | 3 years |
Source: Icecat.biz |
- Optimized for virtualization, performance and highly scalable networking
- Embedded Virtual Fabric allows breakthrough I/O flexibility
- Designed for simplified deployment and management
Get the most
The Lenovo® Flex System™ x240 Compute Node delivers powerful performance with Intel® Xeon® processors—up to a 50 percent performance boost over previous generation servers.1 This enables businesses to get more out of their compute environment. Features such as automated power management with onboard sensors give you more control over power and thermal levels across the system. These capabilities, combined with memory capacity up to 768 GB, help you get the most out of your compute environment.
Product features
- Optimized for virtualization, performance and highly scalable I/O
- Designed for simplified deployment and management
- Lenovo® XClarity™ delivers a centralized systems management solution that helps administrators deliver infrastructure faster and with less effort
- Virtual networking with integrated virtual fabric and up to 32 virtual networking ports
