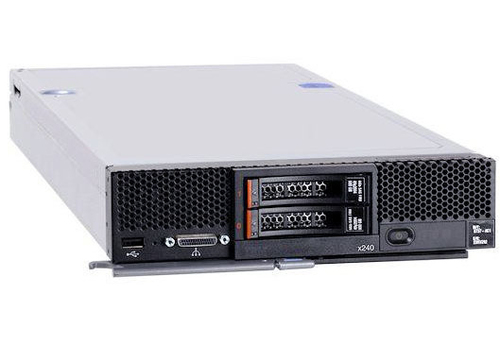

LENOVO EBG FS x240 12C E5-2697v2 130W 2.7GHz/1866MHz/30MB/8GB/10GB Converged Adap

Processor
Processor model	E5-2697V2
Motherboard chipset	Intel C600
Number of processors installed	1
Processor manufacturer	Intel
Processor lithography	22 nm
Maximum number of SMP processors	2
Processor family	Intel Xeon
Processor socket	LGA 2011
Supported instruction sets	AVX
Processor cores	12
System bus rate	8 GT/s
Processor threads	24
Processor operating modes	64-bit
Processor boost frequency	3.5 GHz
Processor cache	30 MB
Execute Disable Bit
Idle States
Thermal Monitoring Technologies
Scalability	2S
Tcase	86 °C
FSB Parity
Embedded options available
Bus type	QPI
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Processor frequency	2.7 GHz
Thermal Design Power (TDP)	130 W
Processor codename	Ivy Bridge EP
Maximum number of PCI Express lanes	40
Processor cache type	Smart Cache
Processor series	Intel Xeon E5-2600 v2
Physical Address Extension (PAE)	46 bit
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600,1866 MHz
Memory bandwidth supported by processor (max)	59.7 GB/s
Memory channels supported by processor	Quad
ECC supported by processor
Processor package size	52.5 mm
Conflict-Free processor
Memory
Memory slots	24x DIMM
Maximum internal memory	768 GB
Memory clock speed	1866 MHz
Internal memory	8 GB
Ports & interfaces
USB 2.0 ports quantity	1
Weight & dimensions
Package weight	8 kg
Height	56 mm
Width	217 mm
Depth	492 mm
Package depth	603 mm
Package height	197 mm
Package width	430 mm
Operational conditions
Operating altitude	0 - 3048 m
Operating relative humidity (H-H)	8 - 85%
Storage temperature (T-T)	1 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	5 - 80%
Non-operating altitude	0 - 10700 m
Networking
Ethernet LAN
Storage
HDD interface	SATA
RAID levels	0,1
HDD size	2.5"
Hot-swap
Maximum storage capacity	6.4 TB
RAID support
Operating system/software
Compatible operating systems	Microsoft Windows Server 2008 R2, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 10 and 11, VMware ESX 4
Operating system installed
Expansion slots
PCI Express slots version	3.0
PCI Express x16 (Gen 3.x) slots	1
Other features
Graphics card	G200eR2
Graphics
Maximum graphics card memory	16 MB
Processor special features
Intel® My WiFi Technology (Intel® MWT)
Intel® Identity Protection Technology (Intel® IPT)
Intel® Anti-Theft Technology (Intel® AT)
Intel® Hyper Threading Technology (Intel® HT Technology)
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology
Intel® InTru™ 3D Technology
Intel® Wireless Display (Intel® WiDi)
Intel FDI Technology
Intel® Clear Video HD Technology (Intel® CVT HD)
Intel Dual Display Capable Technology
Intel® Insider™
Intel Fast Memory Access
Intel Flex Memory Access
Intel® AES New Instructions (Intel® AES-NI)
Enhanced Intel SpeedStep Technology
Intel Trusted Execution Technology
CPU configuration (max)	2
Intel Enhanced Halt State
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Intel VT-x with Extended Page Tables (EPT)
Intel Demand Based Switching
Intel Rapid Storage Technology
Intel® Secure Key
Intel 64
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Clear Video Technology
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel Virtualization Technology (VT-x)
Intel TSX-NI version	0.00
Processor ARK ID	75283
EAN	5051045161640
Warranty	3 years
Source: Icecat.biz

- Optimized for virtualization, performance and highly scalable networking
- Embedded Virtual Fabric allows breakthrough I/O flexibility
- Designed for simplified deployment and management

Get the most

The Lenovo® Flex System™ x240 Compute Node delivers powerful performance with Intel® Xeon® processors—up to a 50 percent performance boost over previous generation servers.1 This enables businesses to get more out of their compute environment. Features such as automated power management with onboard sensors give you more control over power and thermal levels across the system. These capabilities, combined with memory capacity up to 768 GB, help you get the most out of your compute environment.

Product features

- Optimized for virtualization, performance and highly scalable I/O
- Designed for simplified deployment and management
- Lenovo® XClarity™ delivers a centralized systems management solution that helps administrators deliver infrastructure faster and with less effort
- Virtual networking with integrated virtual fabric and up to 32 virtual networking ports
