Noctua NH-L9a-AM4 chromax.black, 92 mm Low-profile CPU Cooler, Black
Manufacturer: NOCTUA
ID: NH-L9A-AM4 CH.BK
6490€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Bearing technology | SSO2 |
| Sustainability compliance |  |
| Weight & dimensions | |
| Weight | 465 g |
| Package weight | 773 g |
| Height | 37 mm |
| Width | 114 mm |
| Depth | 92 mm |
| Package depth | 52 mm |
| Package height | 213 mm |
| Package width | 147 mm |
| Heatsink weight | 390 g |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 92 x 92 x 14 mm |
| Energy management | |
| Power consumption (typical) | 2.52 W |
| Power supply | 2.52 W |
| Rated current | 0.16 A |
| Voltage | 12 V |
| Fan voltage | 12 V |
| Fan current | 0.16 A |
| Rated voltage | 12 V |
| Fan power consumption | 2.52 W |
| Packaging data | |
| Quantity | 1 |
| Packaging content | |
| Remote control included |  |
| Package type | Hanging box |
| Mounting kit | |
| Screws included | |
| Thermal pad included | |
| Low-noise adaptor (LNA) | |
| CPU bracket(s) | |
| Other features | |
| Power requirements | 12 V |
| Connector(s) | 4-pin |
| Number of fans supported | 1 |
| Fan rated voltage | 12 V |
| Thermal grease | |
| Mean time to failure (MTTF) | 150000 h |
| Design | |
| Certification | None |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| RoHS compliance | |
| Base plate material | Copper |
| Fan connector | 4-pin |
| Number of heat pipes | 2 |
| Illumination LED | |
| Fins material | Aluminium |
| Performance | |
| Type | Cooler |
| Mean time between failures (MTBF) | 150000 h |
| Compatible processor series | AMD Ryzen |
| Speed detection | |
| Airflow | 57.5 m³/h |
| Fan diameter | 9.2 cm |
| Supported processor sockets | Socket AM4 |
| Suitable location | Processor |
| Minimum spin speed | 600 RPM |
| Minimum air pressure | 1.06 mmH2O |
| Maximum air pressure | 2.11 mmH2O |
| Noise level (low speed) | 14.8 dB |
| Noise level (high speed) | 23.6 dB |
| Fan speed (max) | 2500 RPM |
| Fan speed (min) | 600 RPM |
| Rotational speed (max) | 2500 RPM |
| Rotational speed (min) | 600 RPM |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 23.6 dB |
| Pulse-width modulation (PWM) support | |
| Rotational speed with LNA (max) | 1800 RPM |
| Noise level with LNA (max) | 14.8 dB |
| Fan's mean time to failure (MTTF) | 150000 h |
| Features | |
| Product type | CPU Cooler |
| EAN | 9010018000214 |
| Warranty | 1 year |
The Noctua NH-L9a-AM4 chromax.black is an air cooling solution engineered for space-constrained PC builds utilizing the AMD AM4 socket. This low-profile cooler maintains a total height of 37 mm, ensuring broad compatibility with Mini-ITX chassis, tall RAM modules, and primary PCIe slots. The compact footprint measures 114 mm by 92 mm, precisely fitting within the keep-out zone defined by the AM4 socket specification. This design prevents overhang onto adjacent motherboard components. The unit employs two 6 mm copper heat pipes connected to an aluminum fin stack and a copper base plate.
Cooling is managed by a single NF-A9x14 HS-PWM fan, which utilizes SSO2 bearing technology for long-term operational stability. The fan speed is controllable via PWM, offering a rotational range between 600 RPM and 2500 RPM. At maximum speed, the fan generates 57.5 m³/h of airflow and registers a peak noise output of 23.6 dB. An included Low-Noise Adaptor (L.N.A.) limits maximum fan speed to 1800 RPM, reducing acoustic output to 14.8 dB. Installation on AM4 motherboards is facilitated by the SecuFirm2 mounting system and pre-packaged NT-H1 high-grade thermal compound.
Key Features:- Low-profile air cooler with 37 mm overall height
- Designed exclusively for AMD AM4 processor sockets
- Includes a 92 mm NF-A9x14 PWM fan
- Fan speed adjustable from 600 to 2500 RPM
- Maximum airflow rating of 57.5 m³/h
- All major components finished in chromax.black
- Utilizes two 6 mm copper heat pipes

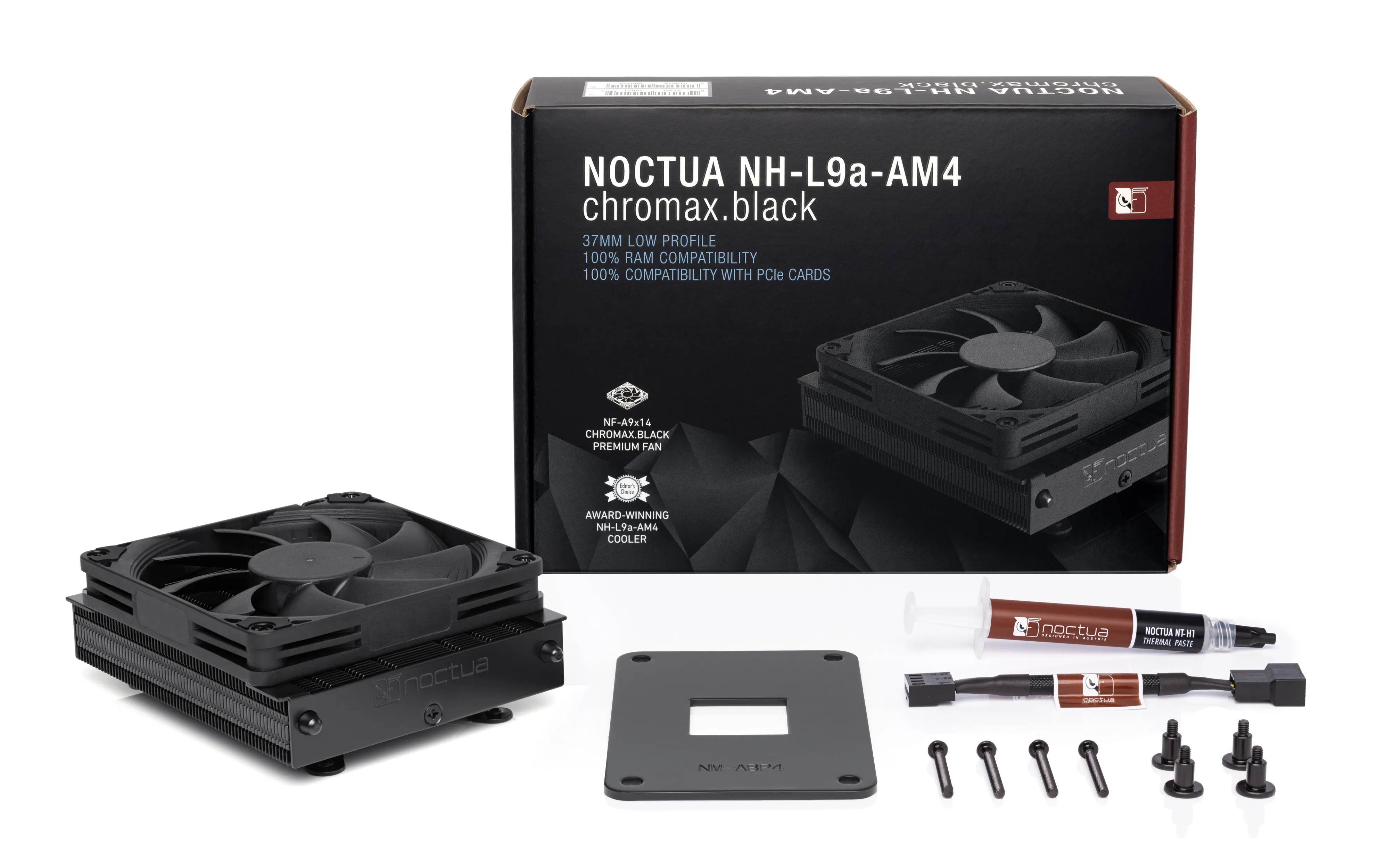

- Includes SecuFirm2 mounting hardware and NT-H1 thermal paste
- Fan rated for 150,000 hours MTBF
