Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
Audio input | No |
Audio output | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Weight & dimensions | |
Weight | 7.04 kg |
Height | 469 mm |
Width | 217 mm |
Depth | 496 mm |
Storage | |
Supported HDD sizes | 2.5,3.5" |
HDD/SSD combo cage | ![]() |
Packaging data | |
Package weight | 8.17 kg |
Package depth | 555 mm |
Package height | 555 mm |
Package width | 285 mm |
Cooling | |
Front fans installed | 3x 120 mm |
Number of front fans supported (max) | 3 |
Front fans diameters supported | 120,140 mm |
Rear fans diameters supported | 120 mm |
Top fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Number of top fans supported (max) | 3 |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,140,240,280,360 mm |
Top radiator sizes supported | 120,240,360 mm |
Design | |
Type | PC |
Form factor | Midi Tower |
Material | Plastic, Steel, Tempered glass |
Product colour | Black |
Illumination | ![]() |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB |
Anti-dust filter | ![]() |
Number of 3.5" bays | 2 |
Illumination colour | Multi |
Side window | ![]() |
Maximum CPU cooler height | 16.5 cm |
Maximum graphics card length | 41 cm |
Number of expansion slots | 7 |
Maximum PSU length | 18 cm |
Illumination location | Case fans |
Number of 2.5" bays | 6 |
Power supply | |
Power supply location | Bottom |
Power supply included | ![]() |
Supported power supply form factors | ATX |
Logistics data | |
Harmonized System (HS) code | 84733080 |
EAN | 4719512095102 |
Warranty | 1 year |
Source: Icecat.biz |
YOUR SEARCH FOR AIRFLOW ENDS HERE.

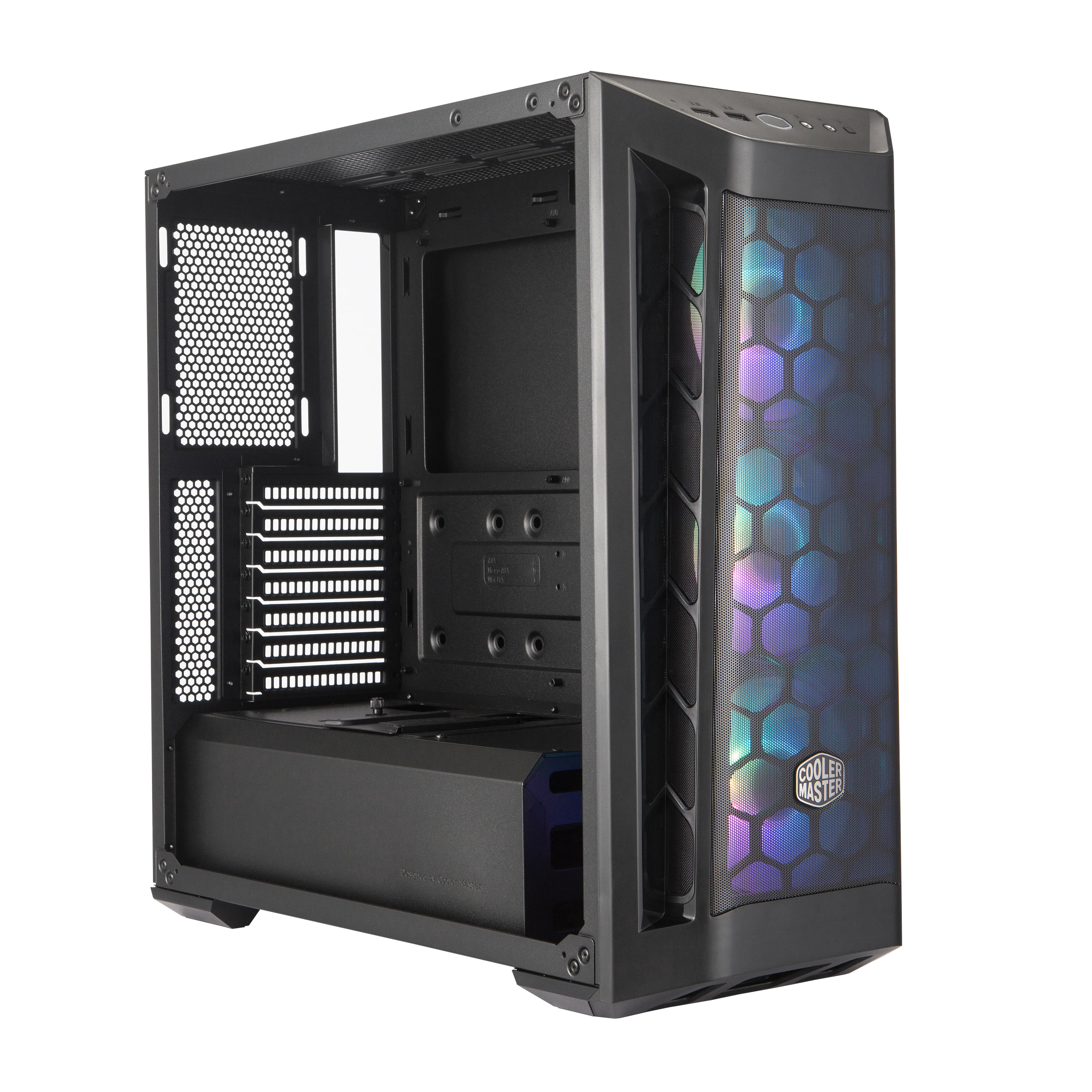

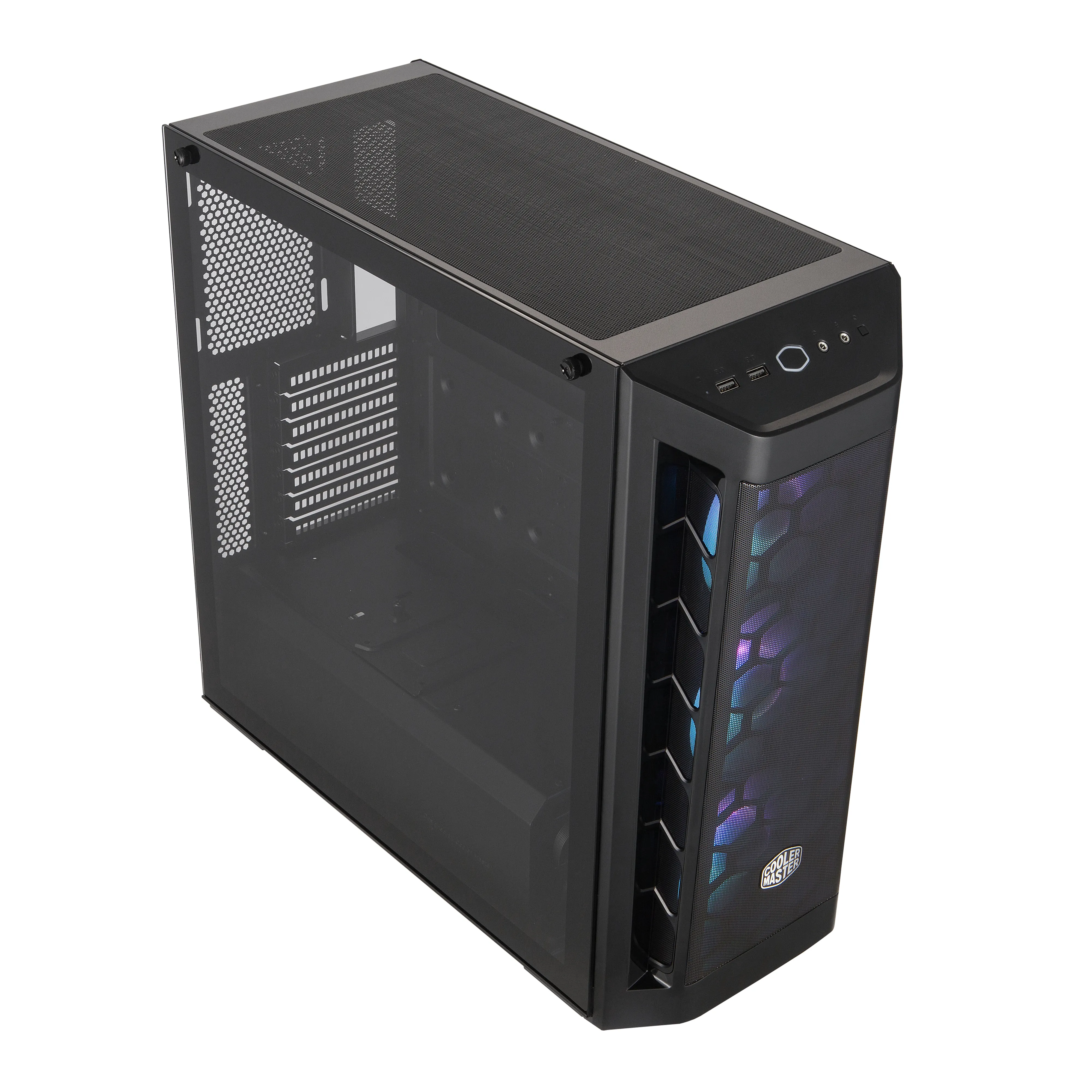

By employing Cooler Master’s Fine Mesh technology, the MasterBox MB511 ARGB demonstrates a prowess for thermal performance and pairs it with premium lighting. Three ARGB fans are included in the box to complement hardware lighting while mesh ventilation on the front and top panel keeps gaming systems cool under pressure.
With airflow potential and aesthetic customization maximized, high-demand gaming rigs can breathe easy in the MasterBox MB511 ARGB.

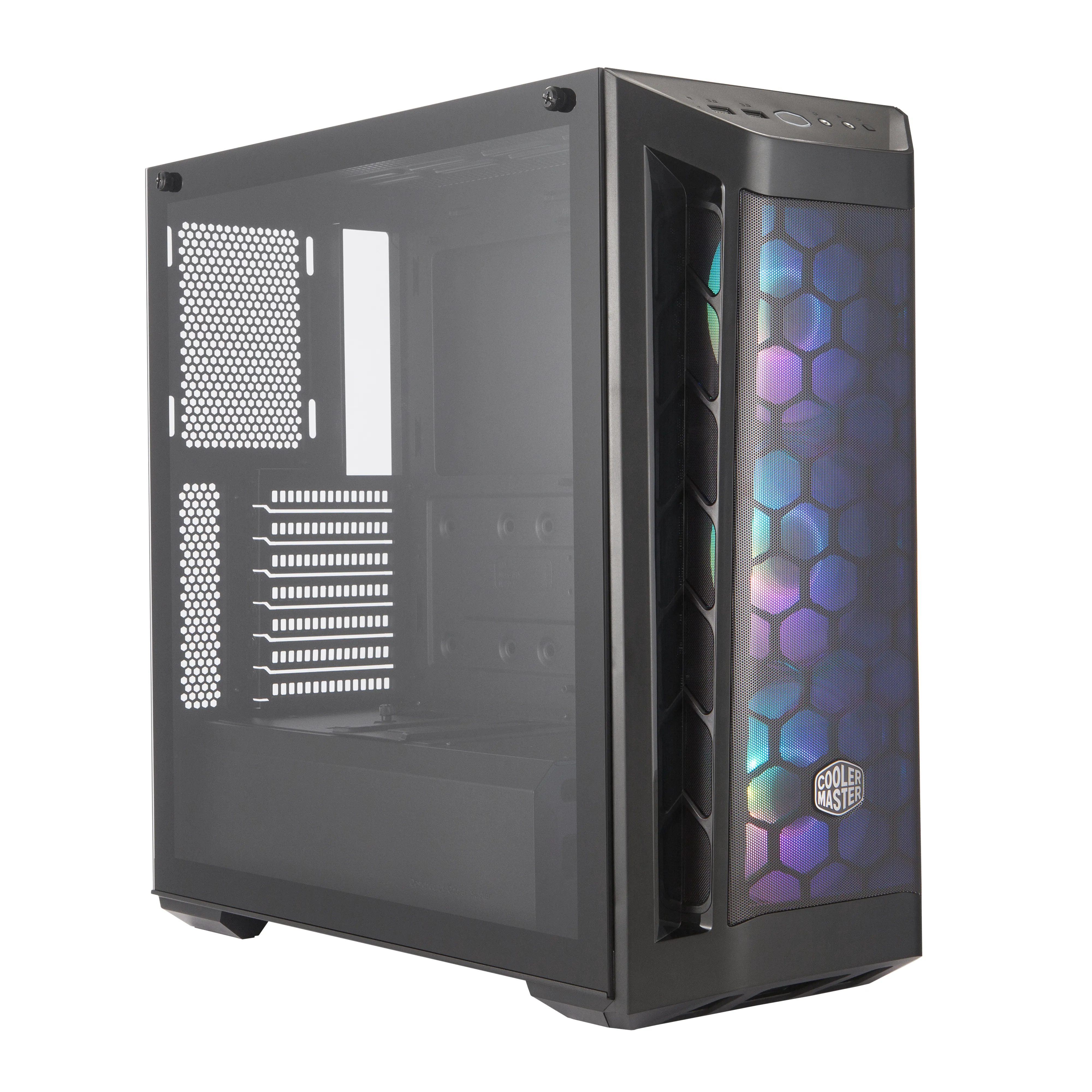

FINE MESH FRONT PANEL

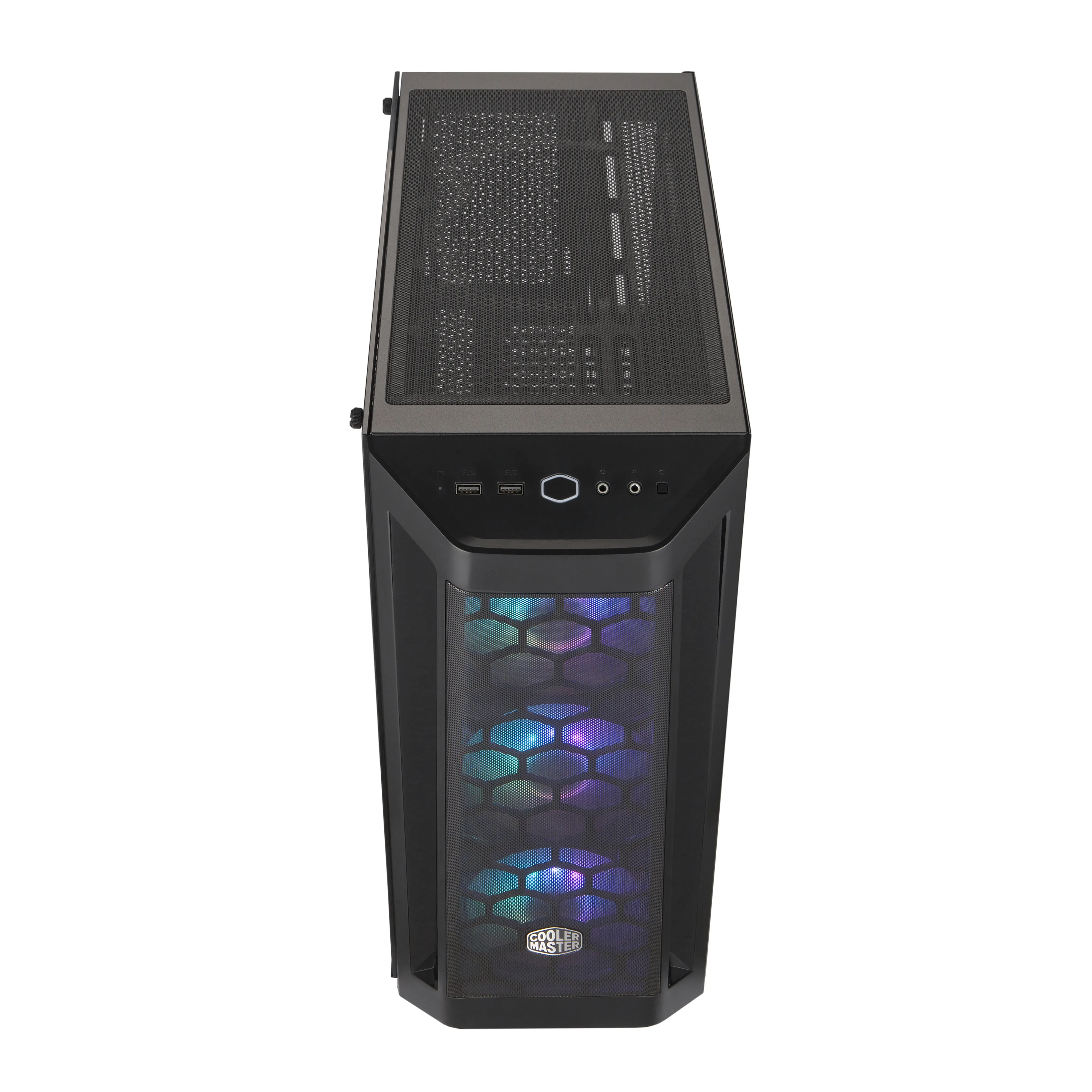

The Fine Mesh design on the front panel is proven, by reviewers and critics alike, to provide considerable airflow while simultaneously filtering out dust. Light also refracts and behaves uniquely to the Fine Mesh, creating a halo effect against the included ARGB fans.
ARGB LIGHTING SYSTEM

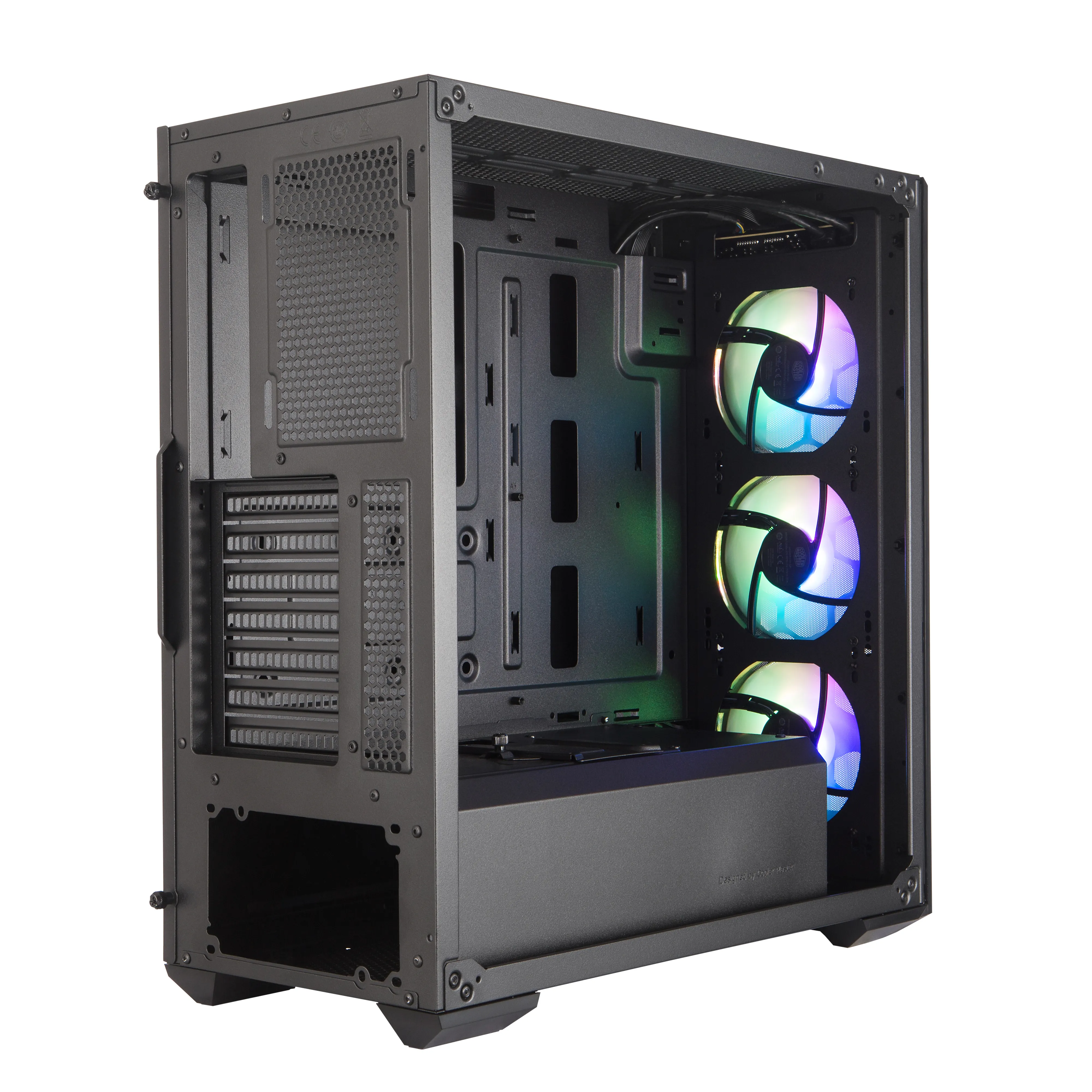

Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.
TEMPERED GLASS SIDE PANEL

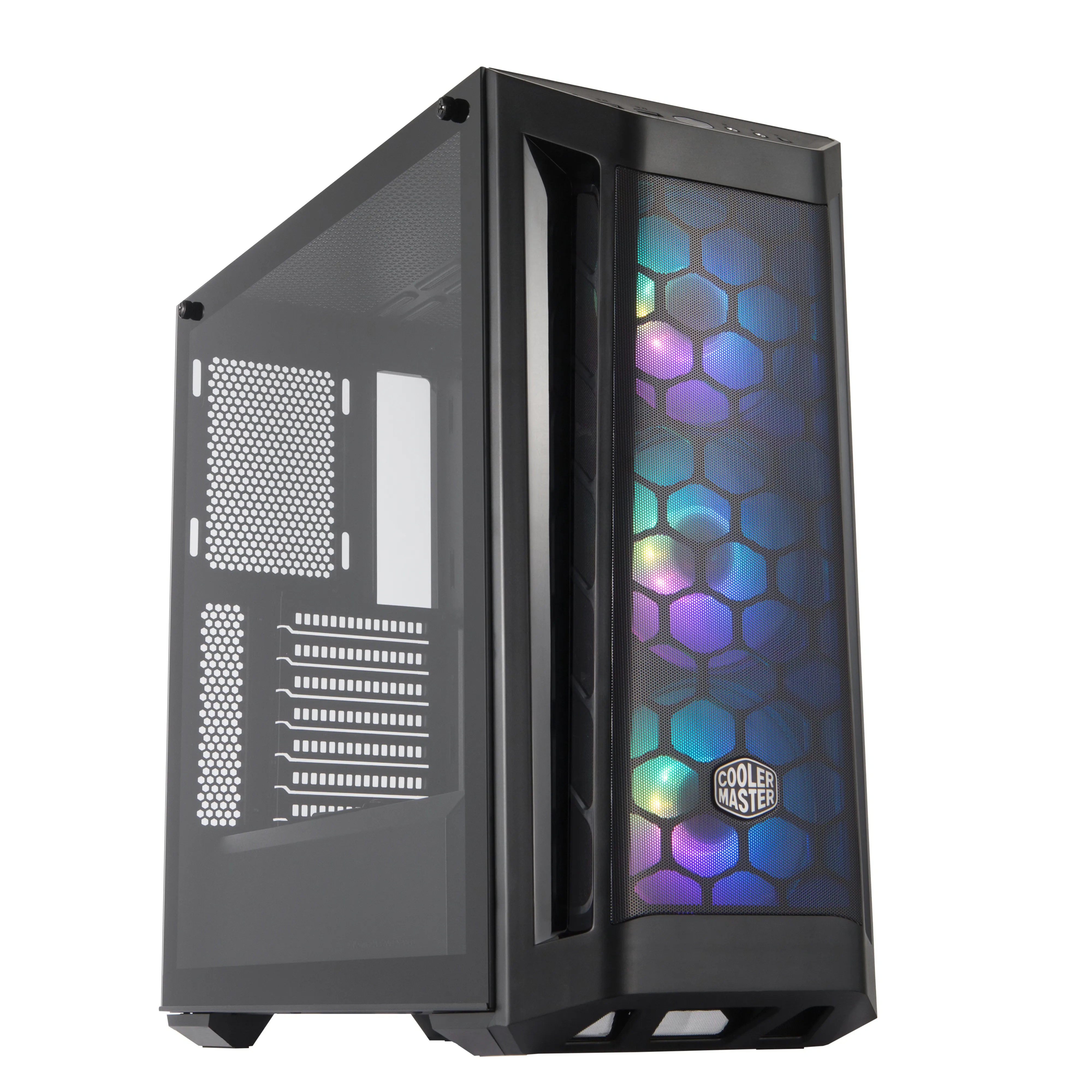

Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.
ARGB Controller
The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.
The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.
It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.
