Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Technical details | |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Display | |
| Pixel pitch | 0.264 x 0.264 mm |
| Contrast ratio (typical) | 20000000:1 |
| Horizontal scan range | 24 - 83 kHz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Vertical scan range | 50 - 75 Hz |
| Display diagonal | 43.2 cm (17") |
| Display brightness | 250 cd/m² |
| Response time | 3 ms |
| Display resolution | 1280 x 1024 pixels |
| Backlight type | LED |
| Glass thickness | 3 mm |
| Display type | LCD |
| Anti-glare screen | ![]() |
| Display aspect ratio | 4:3 |
| Panel type | TN |
| Display number of colours | 16.78 million colours |
| NTSC coverage (typical) | 72% |
| RGB colour space | NTSC |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| DC-in jack | ![]() |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Composite video out | 1 |
| Composite video in | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| 3.5 mm (1/8-inch) in | ![]() |
| USB port | ![]() |
| Weight & dimensions | |
| Weight | 6.1 kg |
| Package weight | 7.3 kg |
| Height | 361.9 mm |
| Width | 409.4 mm |
| Depth | 64.5 mm |
| Package depth | 225 mm |
| Package height | 506 mm |
| Package width | 506 mm |
| Width (with stand) | 409.4 mm |
| Height (with stand) | 398.2 mm |
| Depth (with stand) | 175 mm |
| Package type | Box |
| Weight (with stand) | 6.1 kg |
| Energy management | |
| Power consumption (typical) | 15 W |
| Power supply type | External |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.58 A |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| Power source type | DC |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| AC adapter included | ![]() |
| Quantity | 1 |
| Cables included | AC, Audio, VGA |
| Design | |
| Certification | CB, CE, FCC, WEEE, REACH, BSMI |
| LED indicators | ![]() |
| Product colour | Black |
| Tilt angle range | 0 - 20° |
| Mounting type | Freestanding/Wall-mounted |
| Tilt adjustment | ![]() |
| Product type | CCTV monitor |
| Tilt angle | 20° |
| Performance | |
| Cable lock slot | ![]() |
| Speaker power | 2 W |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | ![]() |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Cable lock slot type | Kensington |
| VESA mounting | ![]() |
| EAN | 4710739595864 |
| Warranty | 1 year |
| Source: Icecat.biz | |

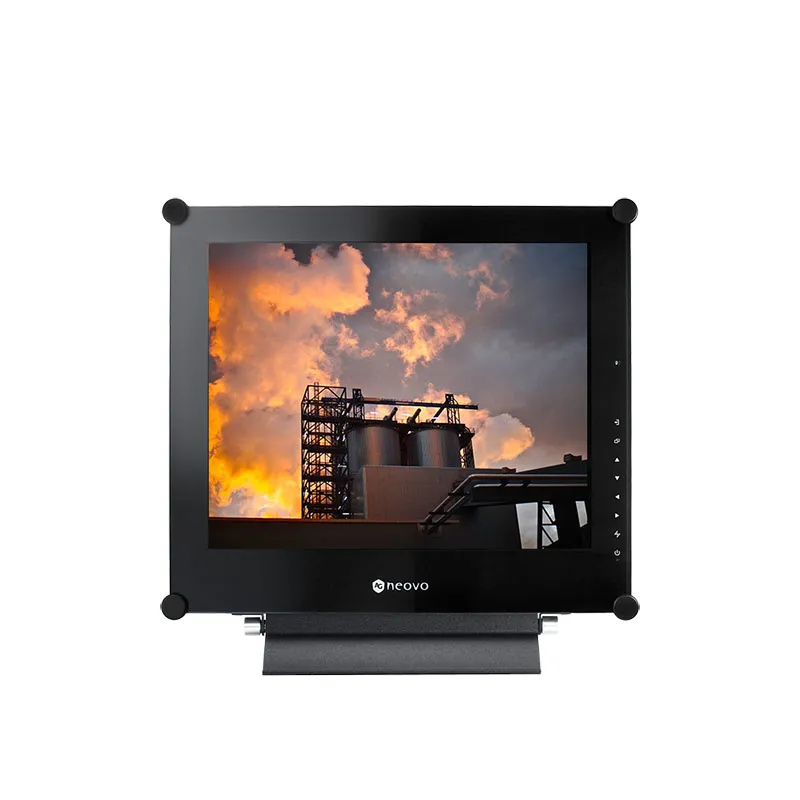

Ideal for legacy and modern surveillance applications, the SX-Series is equipped with analogue and digital connectivity as well as Composite output for video looping. Built to last and perform in 24/7 operations, it features AG Neovo’s Anti-Burn-in™ technology, preventing image ghosting and ensuring professionals view the present, not the past. Coupled with NeoV™ Optical Glass and metal casing, the display is shielded from incidental damage and impact to withstand the most demanding environments. Highly versatile and compatible, the SX-Series is the optimal display solution for seamless video surveillance transition.
Industry-leading Reliability
The SX-Series is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo’s Anti-Burn-inTM technology also prevents image ghosting while performing nonstop mission-critical operations. Its metal casing and NeoVTM Optical Glass not only protect the SX-Series from damage but also keep maintenance easy.
Optimised for Surveillance and Security
Built with cutting-edge super-resolution technology, the SX-Series can upscale images at a higher and more detailed resolution for better clearness. Besides, geared specifically for a surveillance control room, a user-friendly CCTV mode is pre-configured to maximise image clarity in the scenario of low light surveillance footage at night.
Highly Versatile and Compatible
The SX-Series supports multiple video input sources, from legacy video cameras to the latest HDMI and DisplayPort equipment. Its lockable Composite input and loop through Composite output make it easy to connect to other gear without the need for a splitter.
Industry-leading Reliability
The SX-Series is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo’s Anti-Burn-inTM technology also prevents image ghosting while performing nonstop mission-critical operations. Its metal casing and NeoVTM Optical Glass not only protect the SX-Series from damage but also keep maintenance easy.
Optimised for Surveillance and Security
Built with cutting-edge super-resolution technology, the SX-Series can upscale images at a higher and more detailed resolution for better clearness. Besides, geared specifically for a surveillance control room, a user-friendly CCTV mode is pre-configured to maximise image clarity in the scenario of low light surveillance footage at night.
Highly Versatile and Compatible
The SX-Series supports multiple video input sources, from legacy video cameras to the latest HDMI and DisplayPort equipment. Its lockable Composite input and loop through Composite output make it easy to connect to other gear without the need for a splitter.
