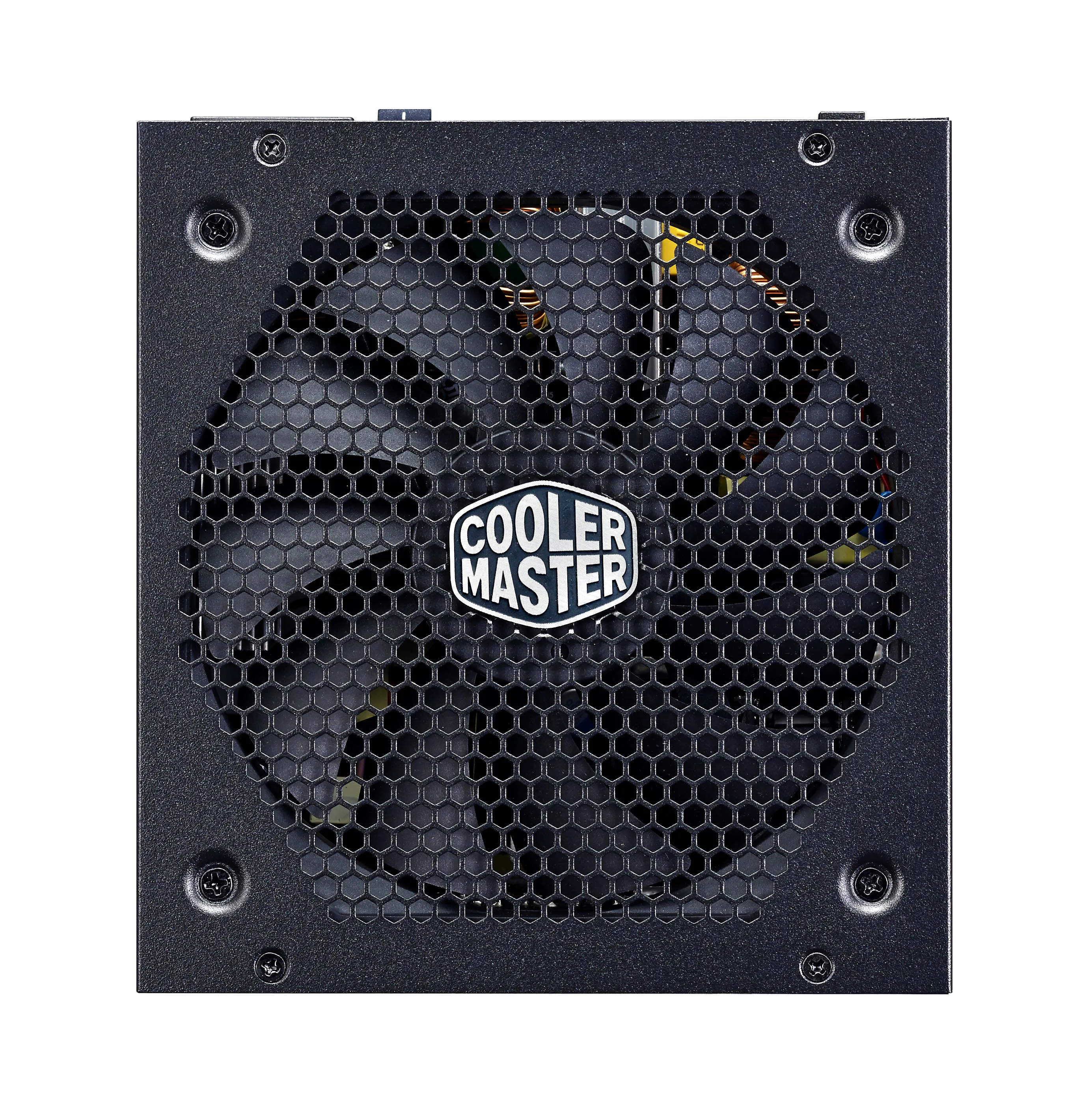

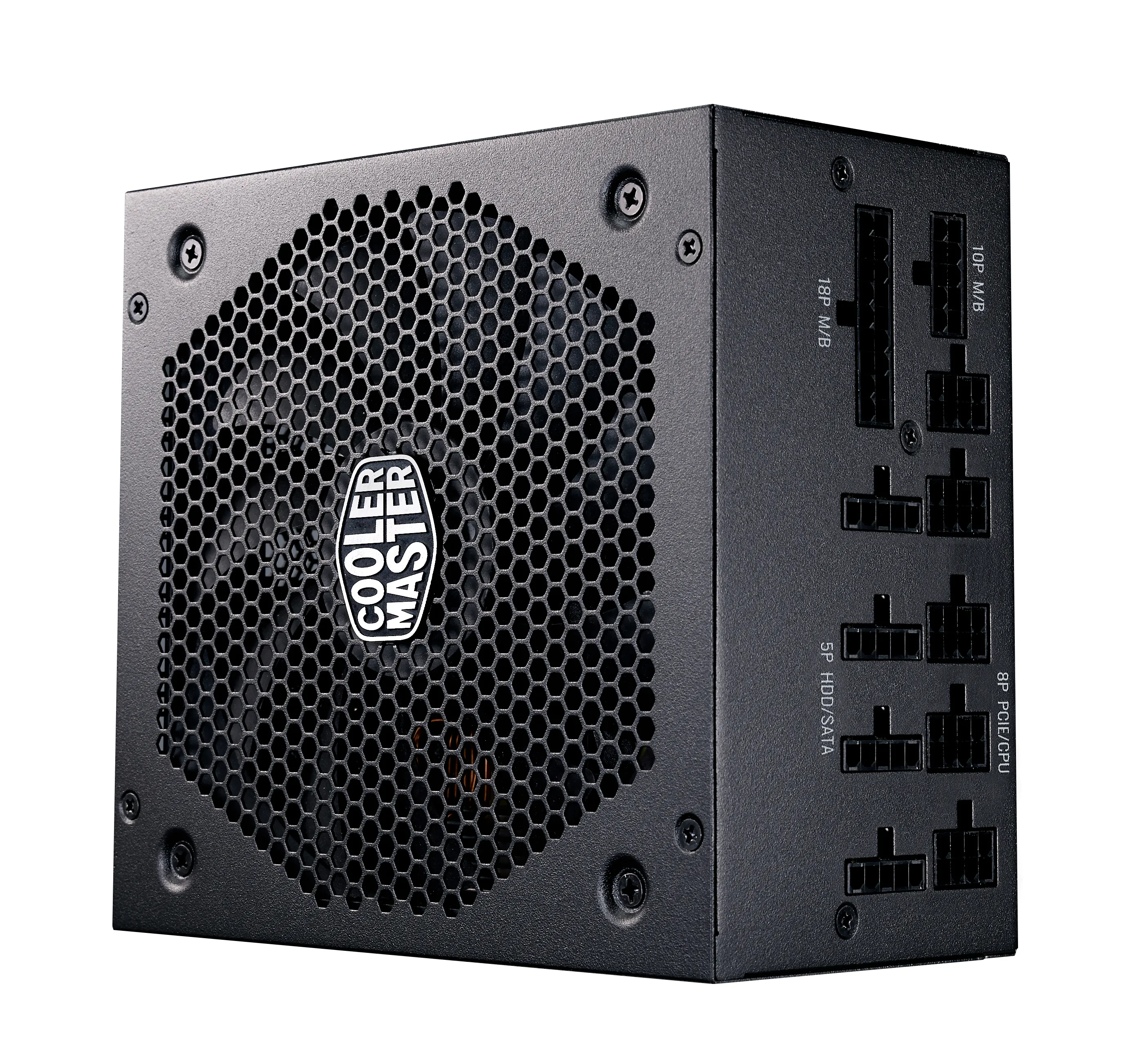

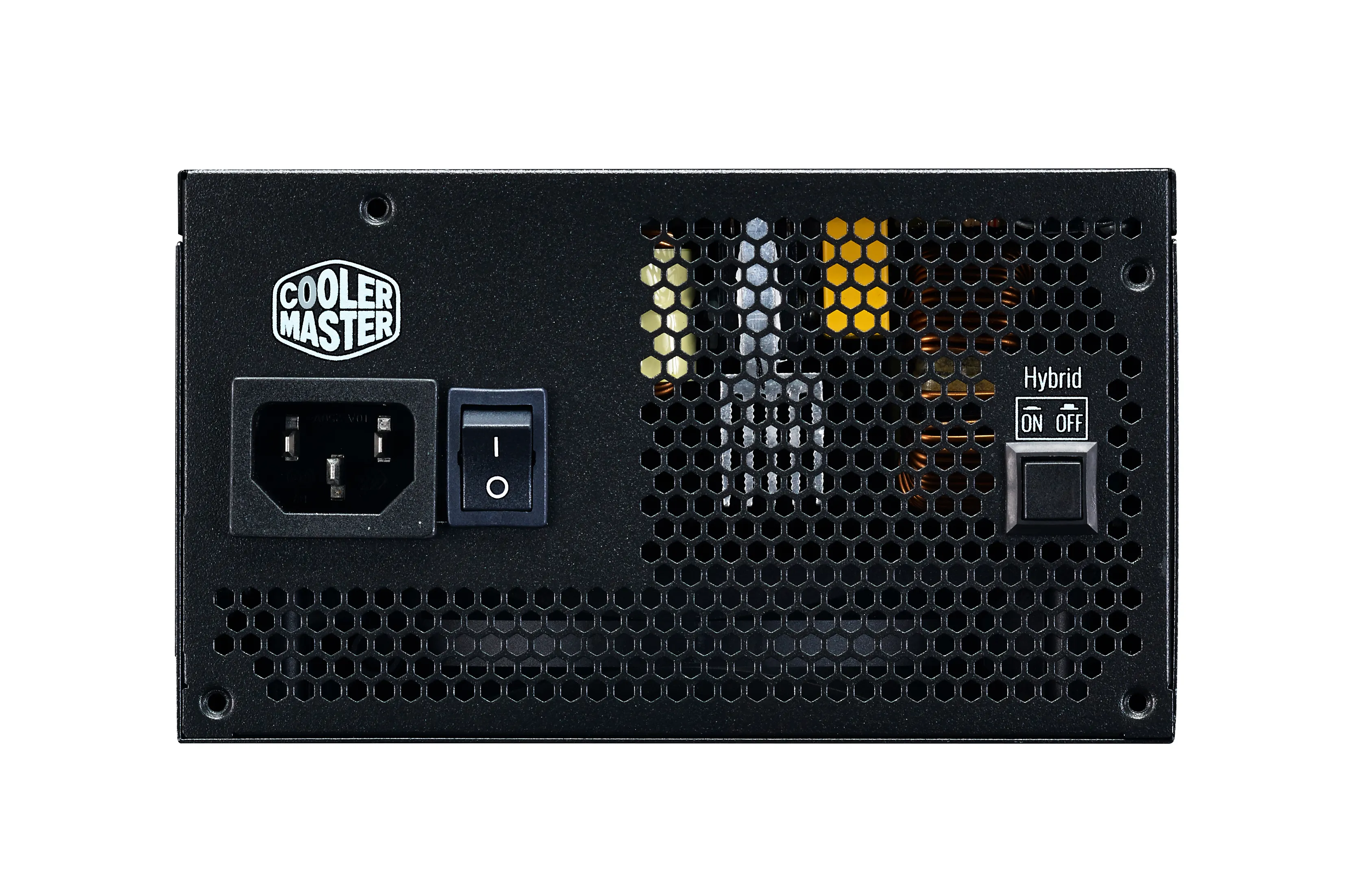

Cooler Master V Gold V2 V750 750W - PSU, 80 Plus Gold
Manufacturer: COOLER MASTER
ID: MPY-750V-AFBAG-EU
13490€
Show VAT 0%
Show VAT 24%
Multitronic warehouse store
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Mariehamn
iTronic Vaasa
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development

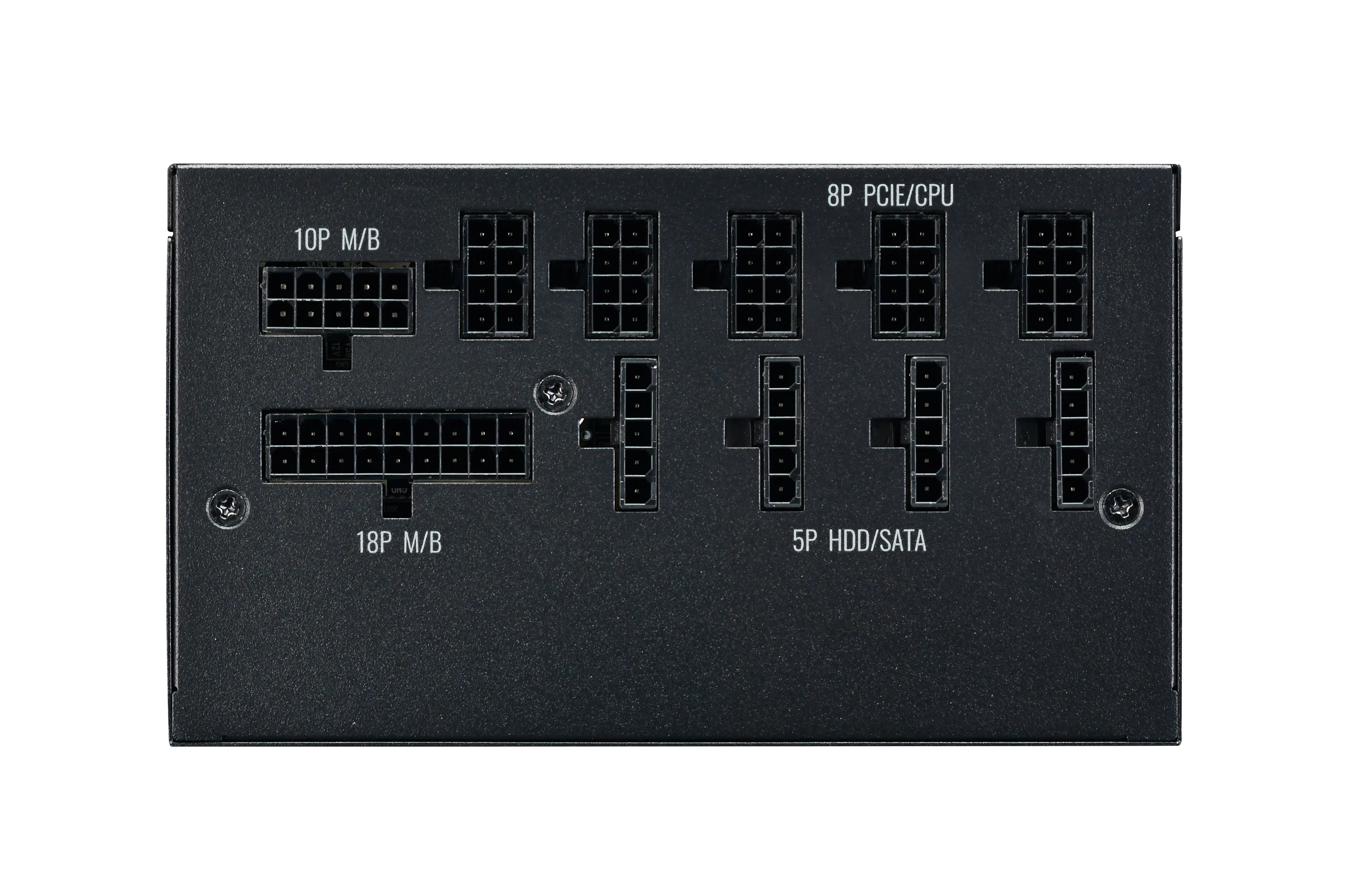

| Ports & interfaces | |
| ATX Power connector (24-pin) |  |
| Floppy disk drive connector | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Modular |
| Motherboard power cable length | 65 cm |
| SATA power cable length | 500,620,740,860 mm |
| Peripheral (Molex) power cable length | 740,620,500,860 mm |
| PCI Express power cable length | 67 cm |
| Weight & dimensions | |
| Weight | 2.12 kg |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 160 mm |
| Energy management | |
| Input current | 10 - 5 A |
| Nominal power | 750 W |
| Efficiency | 90% |
| Hold time | 17 ms |
| Power protection features | Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |
| Power Good signal delay range | 100 - 500 ms |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging data | |
| Package weight | 2.65 kg |
| Package depth | 303 mm |
| Package height | 125 mm |
| Package width | 202 mm |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
| Other features | |
| Noise level (quiet mode, 50%) | 23.6 dB |
| Noise level (full-load mode, 100%) | 32.5 dB |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On/off switch | |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| Fan speed | 0 - 1545 RPM |
| Performance | |
| Certification | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| Bearing technology | FDB |
| ATX version | 2.52 |
| Power supply unit (PSU) form factor | ATX |
| Logistics data | |
| Master (outer) cases per pallet | 24 pc(s) |
| Master (outer) case height | 238 mm |
| Master (outer) case width | 318 mm |
| Master (outer) case length | 520 mm |
| Products per master (outer) case | 4 pc(s) |
| EAN | 4719512091579 |
| Warranty | 1 year |
The V Gold -v2 offers the high quality user experience you’ve always wanted. Enjoy an 80 Plus Gold efficiency rating, full-modular cabling, semi-fanless operation, a 135mm FDB fan, 16AWG PCIehigh efficiency cables. Improvements and innovations from the components to the cables deliver a power supply unit fit for any and every type of PC. The 100% Japanese capacitors, half-bridge LLC resonant convertor, and DC-DC circuitry deliver a product that even the pros can respect, at 550, 650, 750, and 850 watt levels. Also available with black casing and cables.
