Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| Audio input | Yes |
| Audio output | Yes |
| Headphone outputs | 1 |
| Microphone in | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| Combo headphone/mic port | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Weight & dimensions | |
| Weight | 6.95 kg |
| Height | 443 mm |
| Width | 231 mm |
| Depth | 450 mm |
| Storage | |
| Card reader integrated | ![]() |
| Number of HDDs supported | 2 |
| Supported HDD sizes | 2.5,3.5" |
| Storage drive interface | SATA |
| Number of storage drives supported | 7 |
| Supported storage drive interfaces | SATA |
| HDD/SSD combo cage | ![]() |
| SSD form factor | 2.5" |
| Packaging data | |
| Package weight | 7.92 kg |
| Package depth | 494 mm |
| Package height | 510 mm |
| Package width | 285 mm |
| LED controller | ![]() |
| Cooling | |
| Cooling | ![]() |
| Front fans installed | 1x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans diameters supported | 120,140 mm |
| Top fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Rear fans installed | 1x 140 mm |
| Liquid cooling capability | ![]() |
| Maximum airflow | 55.8 cfm |
| Maximum air pressure | 0.6 mmH2O |
| Noise level (low speed) | 17.1 dB |
| Rear radiator sizes supported | 120,140 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator installed | ![]() |
| Front radiator installed | ![]() |
| Top radiator installed | ![]() |
| Top radiator sizes supported | 120,240 mm |
| Fan power consumption | 1.08 W |
| Fan speed control | ![]() |
| Fan rated voltage | 12 V |
| Fan rated current | 0.09 A |
| Other features | |
| Power LED | ![]() |
| On/off switch | ![]() |
| Screws included | ![]() |
| Fan connector | 3-pin |
| Design | |
| Type | PC |
| Certification | CE, RoHS |
| Rack mounting | ![]() |
| Form factor | Midi Tower |
| Material | ABS synthetics, Steel |
| Cable lock slot | ![]() |
| Product colour | Black |
| Illumination | ![]() |
| Cable management | ![]() |
| Reset button | ![]() |
| Supported motherboard form factors | ATX, Mini-ATX, Mini-ITX |
| Anti-dust filter | ![]() |
| Number of 3.5" bays | 2 |
| Transport wheels | ![]() |
| Side window | ![]() |
| Number of internal 3.5" bays | 2 |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 36.9 cm |
| Number of expansion slots | 7 |
| Maximum PSU length | 25.8 cm |
| Number of 2.5" bays | 5 |
| On/off button | ![]() |
| Tempered glass panel(s) | ![]() |
| RGB control button | ![]() |
| Power supply | |
| Number of power supply units | 1 |
| Power supply location | Bottom |
| Power supply included | ![]() |
| Supported power supply form factors | ATX, PS2 |
| Features | |
| Product type | PC Case |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| EAN | 4260052187821 |
| Warranty | 3 years |

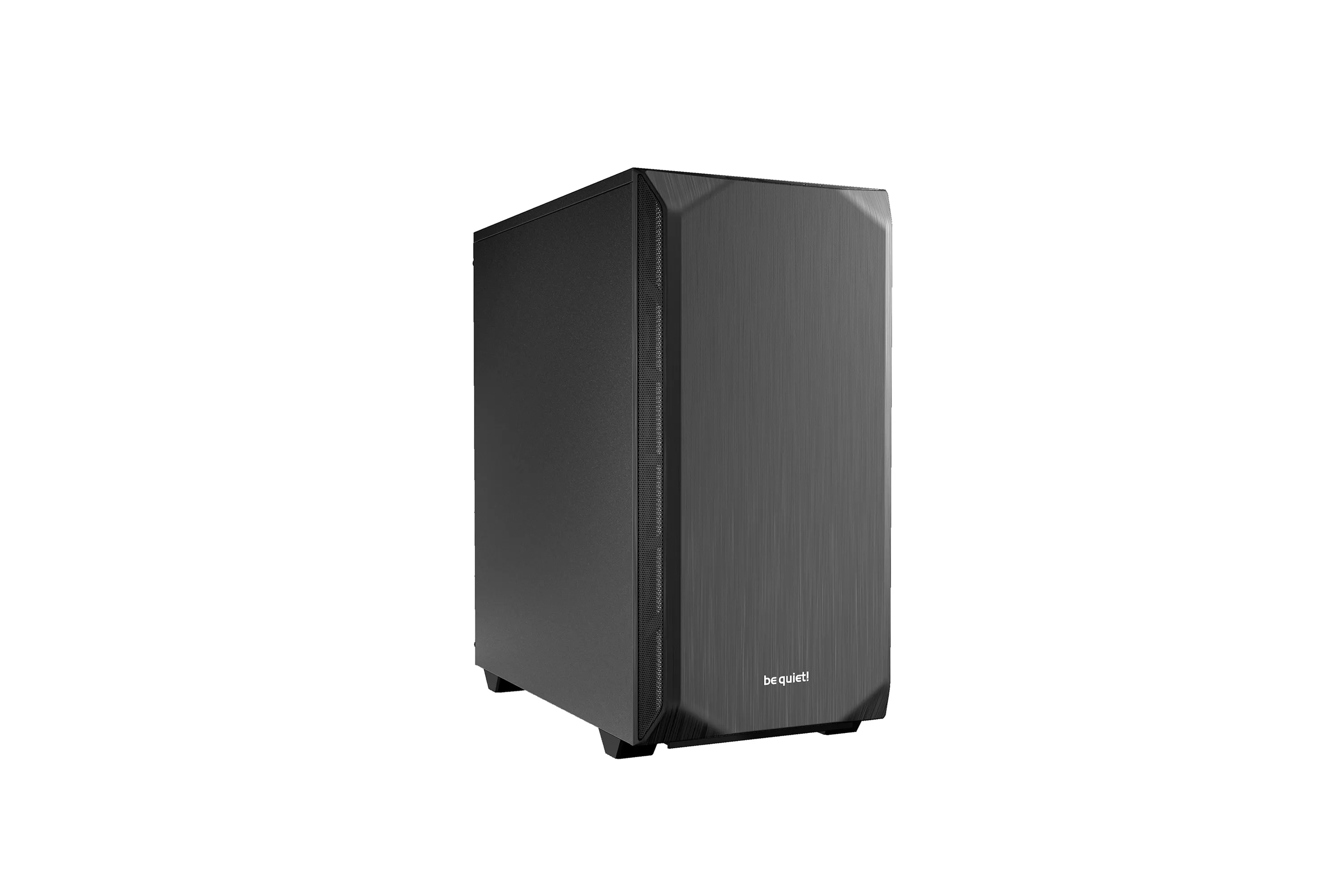

The be quiet! Pure Base 500 is a Midi Tower PC case constructed from a combination of steel and ABS synthetics, with a design focused on quiet operation. This chassis supports ATX, Mini-ATX, and Mini-ITX motherboard form factors, providing flexibility for a range of system configurations. The internal layout is configured for straightforward assembly, featuring integrated cable management options to help organize routing and maintain a clean interior. Its solid side panel contributes to the sound-dampened design, and removable dust filters protect internal hardware.

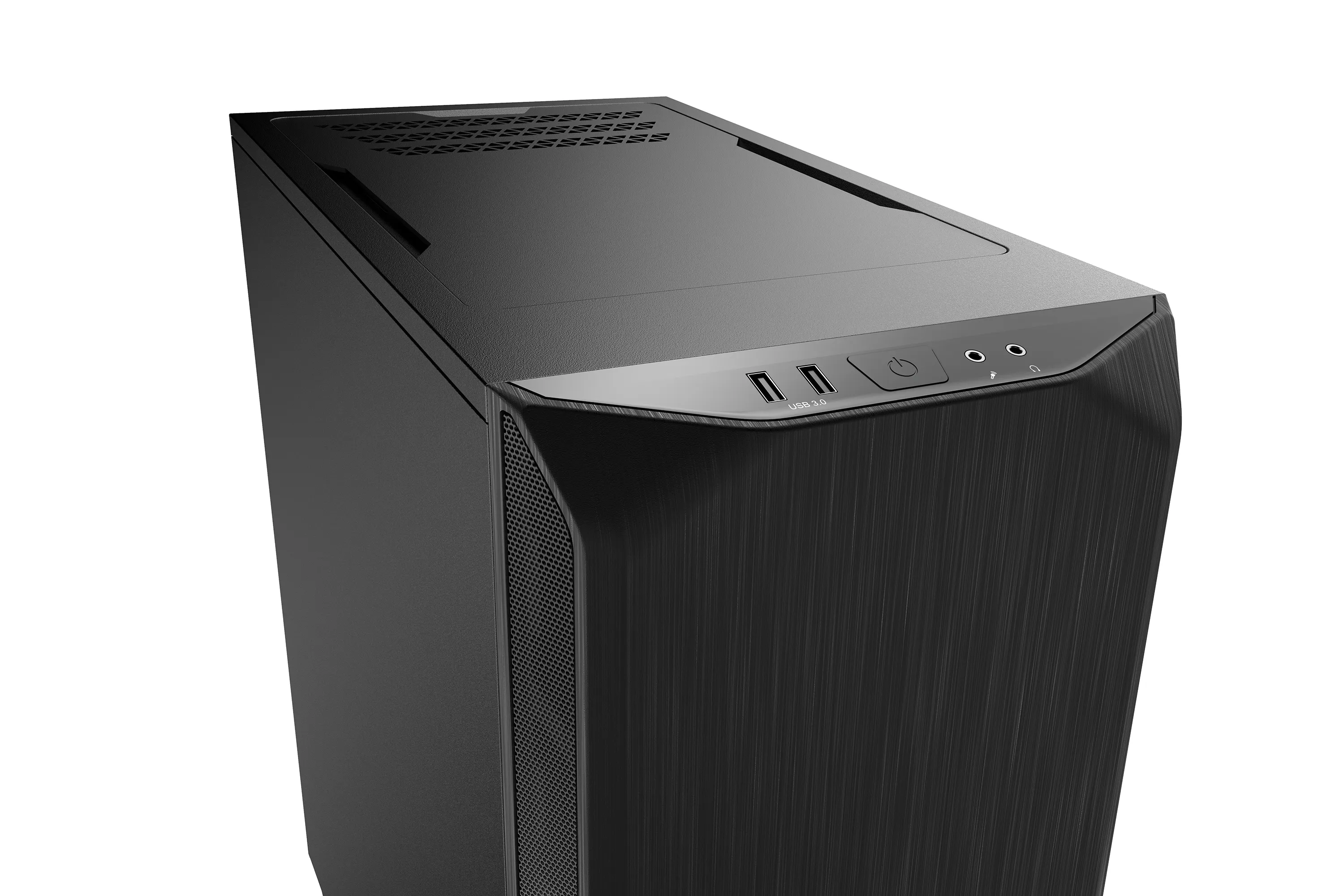

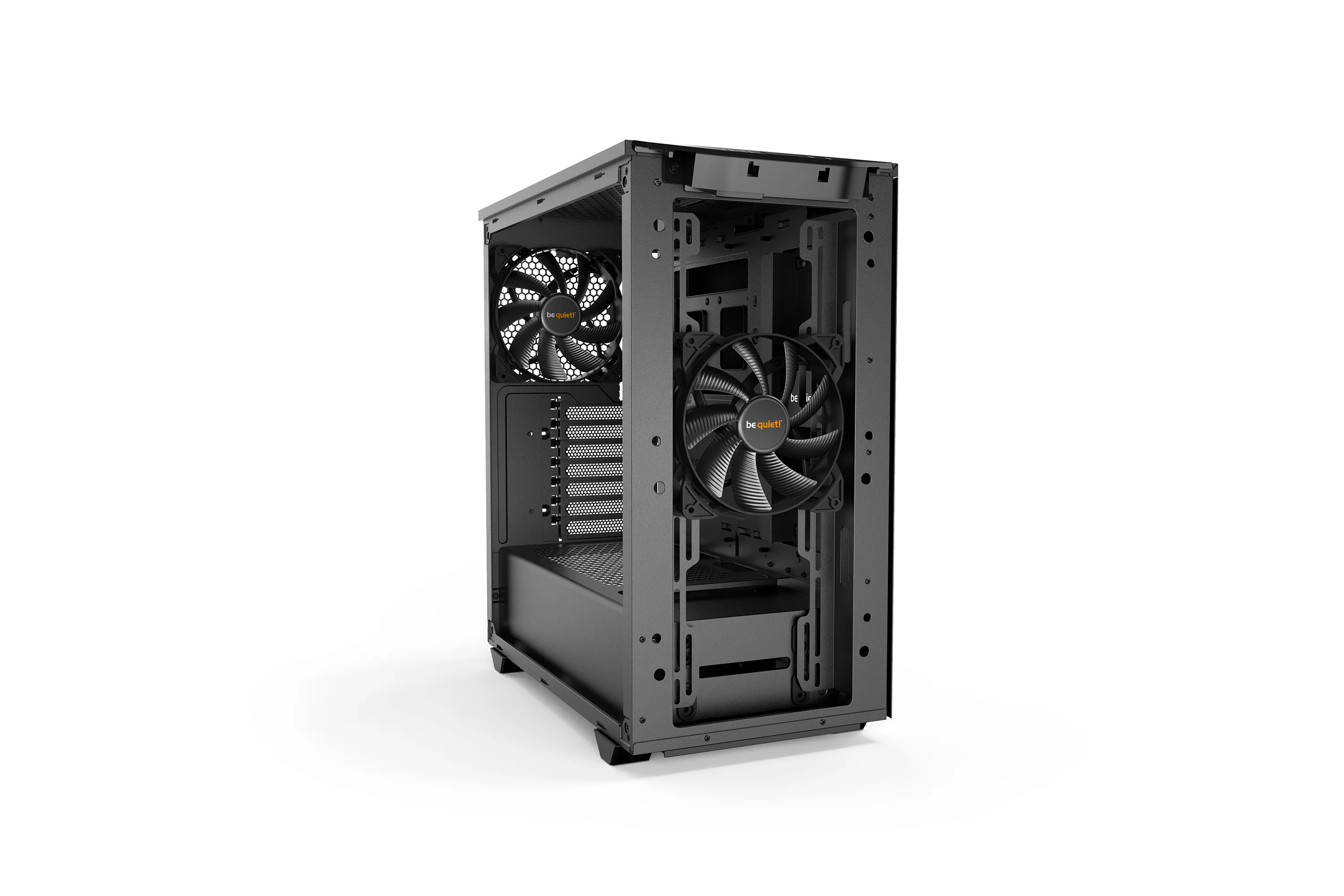

Cooling is managed by two pre-installed 140mm fans, one at the front intake and one at the rear exhaust, which operate at 900 RPM. The case accommodates additional cooling hardware, including liquid cooling radiators up to 360mm in the front and 240mm in the top position. Component clearance is substantial, supporting CPU coolers up to 190mm in height and ATX PS/2 power supplies up to 258mm in length. The front panel I/O includes two USB 3.2 Gen 1 Type-A ports alongside standard audio input and output jacks.
Key Features:- Midi Tower form factor compatible with ATX, Mini-ATX, and Mini-ITX motherboards
- Constructed with steel and ABS synthetic materials
- Features two pre-installed 140mm fans
- Accommodates CPU coolers up to 190 mm in height
- Provides space for two 3.5-inch and five 2.5-inch drives
- Includes seven expansion slots for component installation
- Supports front radiators up to 360 mm and top radiators up to 240 mm
- Offers a maximum power supply length of 258 mm
