Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces | |
Floppy disk drive connector | |
PCI Express connector | |
Motherboard power connector | 20+4 pin ATX |
Number of SATA power connectors | 13 |
Peripheral (Molex) power connectors (4-pin) | 5 |
EPS power connector (8-pin) | |
ATX power connector (20+4 pin) | |
PCI Express power connectors (6+2 pin) | 8 |
Cabling type | Modular |
Motherboard power cable length | 60 cm |
SATA power cable length | 600,750,900,1050 mm |
Peripheral (Molex) power cable length | 1050,600,750,900 mm |
PCI Express power cable length | 60 cm |
Floppy disk drive cable length | 120 cm |
Weight & dimensions | |
Weight | 2.03 kg |
Height | 86 mm |
Width | 150 mm |
Depth | 175 mm |
Energy management | |
Peak power | 1100 W |
Input current | 14 - 8 A |
Nominal power | 1000 W |
Efficiency | 93.5% |
Hold time | 19 ms |
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Power factor | 0.97 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 125 W |
Combined power (+12V) | 996 W |
Combined power (+5V) | 125 W |
Combined power (-12V) | 6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 25 A |
Max output current (+12V) | 83 A |
Max output current (+5V) | 25 A |
Max output current (-12V) | 0.5 A |
Max output current (+5Vsb) | 3 A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Max output current (+12V4) | 40 A |
Max output current (+12V3) | 40 A |
Max output current (+12V2) | 32 A |
Max output current (+12V1) | 32 A |
Total power | 1000 W |
Maximum input current (@110V) | 14 A |
Maximum input current (@220V) | 8 A |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Packaging data | |
Package weight | 4.43 kg |
Package depth | 270 mm |
Package height | 120 mm |
Package width | 350 mm |

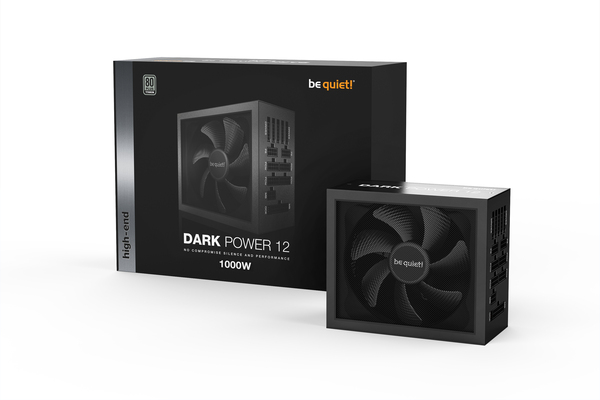

Package type | Box |
Packaging content | |

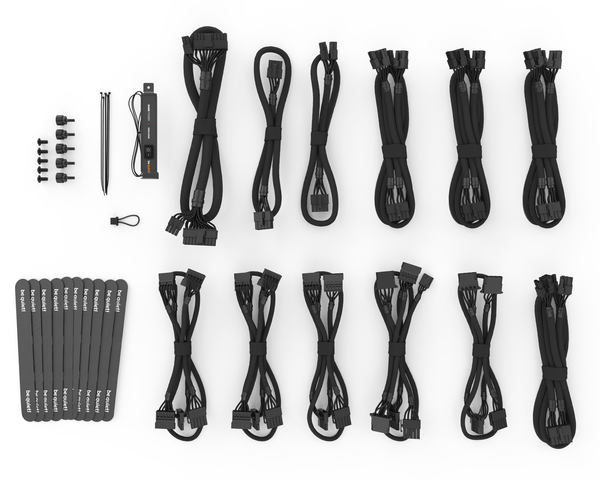

Cables included | CPU, DC, PCIe, Peripheral (Molex), SATA |
Design | |
Product colour | Black |

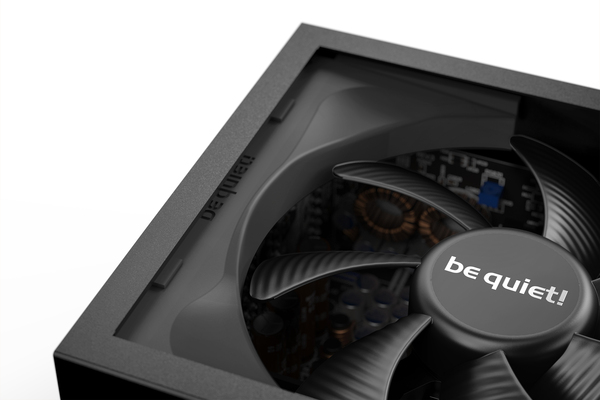

Number of fans | 1 fan(s) |
On/off switch | |
Cooling type | Active |
Fan diameter | 13.5 cm |
Performance | |
Certification | WEEE |
Mean time between failures (MTBF) | 200000 h |
Safety | CE, CB, TÜV, FCC, cTUVus, RCM, BSMI, CU, CCC |

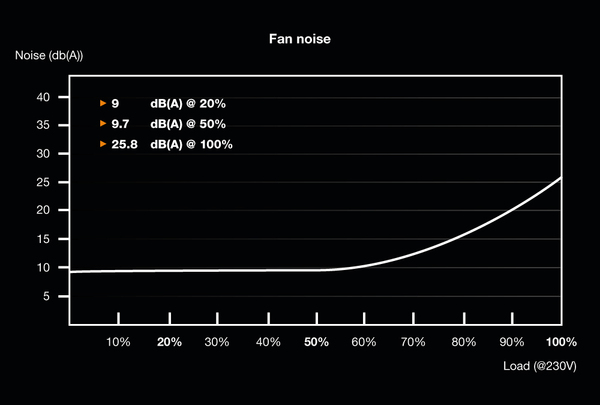

Noise level | 25.8 dB |
Purpose | PC |
Bearing technology | FDB |
ATX version | 2.52 |
EPS version | 2.92 |
80 PLUS certification | 80 PLUS Titanium |
Power supply unit (PSU) form factor | ATX |
Logistics data | |
Shipping (inner) case width | 30.5 cm |
Shipping (inner) case length | 50.4 cm |
Shipping (inner) case height | 36.8 cm |
Shipping (inner) case gross weight | 19.1 kg |
Products per shipping (inner) case | 4 pc(s) |
EAN | 4260052188026 |
Warranty | 3 years |

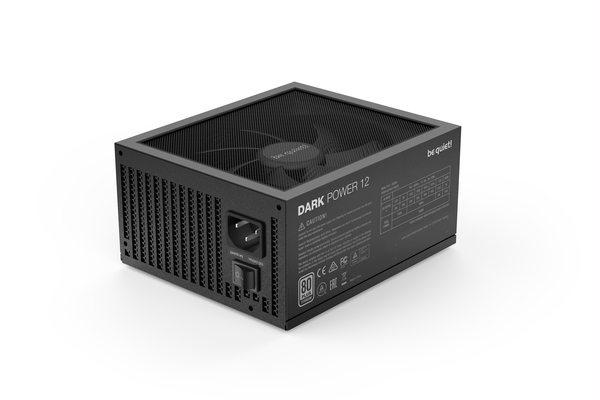

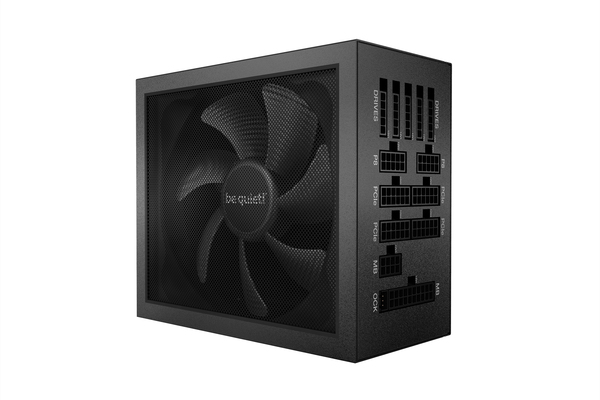

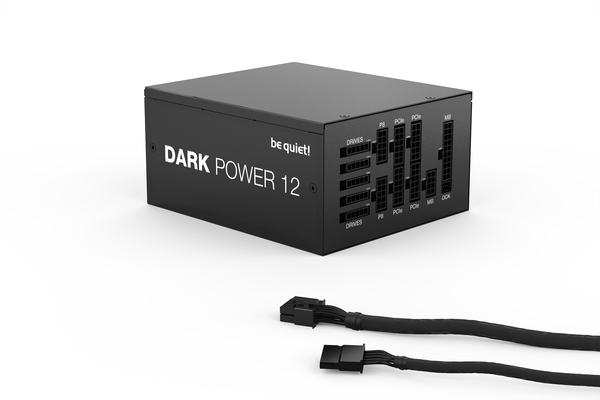

The be quiet! Dark Power 12 1000W offers 80 PLUS® Titanium efficiency and a virtually inaudible frameless fan concept for flawless cooling. Its superior features make the Dark Power 12 a paragon in the field of 1000 watt power supplies.
