Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor model | i5-1135G7 |
| Processor manufacturer | Intel |
| Processor lithography | 10 nm |
| Processor family | Intel Core i5 |
| Processor cores | 4 |
| Processor threads | 8 |
| Built-in processor |  |
| Processor boost frequency | 4.2 GHz |
| Processor cache | 8 MB |
| CPU configuration (max) | 1 |
| Processor frequency | 0.9 GHz |
| Memory | |
| Internal memory type | DDR4 |
| Memory slots | 2 x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory clock speed | 3200 MHz |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4 |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Internal memory | 64 GB |
| Number of memory slots | 2 |
| Display | |
| Touchscreen |  |
| Audio | |
| Built-in speaker(s) | |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | |
| DC-in jack | |
| DVI port | |
| HDMI ports quantity | 4 |
| HDMI version | 2.0a |
| Thunderbolt ports quantity | 1 |
| Combo headphone/mic port | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Thunderbolt 3 ports quantity | 1 |
| Weight & dimensions | |
| Height | 44.4 mm |
| Width | 196.2 mm |
| Depth | 140 mm |
| Energy management | |
| Power supply type | External AC adapter |
| Number of power supply units | 1 |
| AC adapter output voltage | 19 V |
| AC adapter output current | 7.1 A |
| Power supply | 135 W |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Networking | |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
| Ethernet LAN | |
| Bluetooth | |
| LAN controller | Intel® I219-V, Intel I225-V |
| Wi-Fi | |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Storage | |
| Card reader integrated | |
| Storage drive interface | M.2 |
| Number of storage drives supported | 3 |
| Storage drive sizes supported | M.2 |
| Supported storage drive types | SSD |
| Operating system/software | |
| Operating system architecture | 64-bit |
| Packaging content | |
| Mouse included | |
| Keyboard included | |
| Design | |
| Chassis type | 1L sized PC |
| Product colour | Black |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| VESA mounting | |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| Discrete graphics card model | Not available |
| On-board graphics card | |
| Number of displays supported | 4 |
| Discrete graphics card | |
| Processor special features | |
| Idle States | |
| Intel Trusted Execution Technology | |
| Intel VT-x with Extended Page Tables (EPT) | |
| Embedded options available | |
| Intel Stable Image Platform Program (SIPP) | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel Virtualization Technology (VT-x) | |
| Performance | |
| Motherboard form factor | SBC |
| Windows operating systems supported | Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64 |
| Linux operating systems supported | |
| Audio chip | Realtek ALC255 |
| EAN | 4719331600457 |
| Warranty | 1 year |

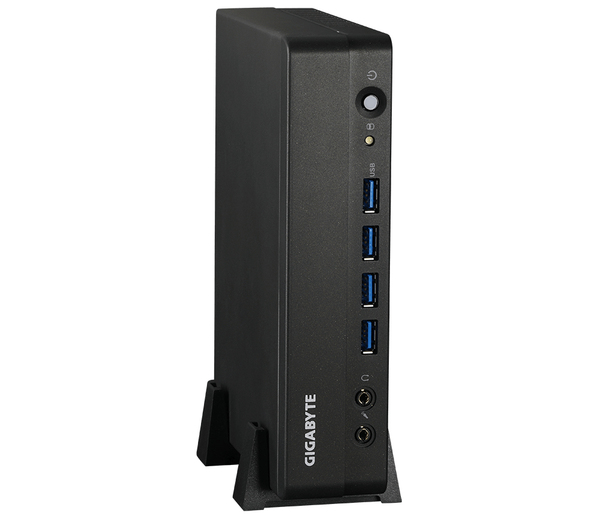

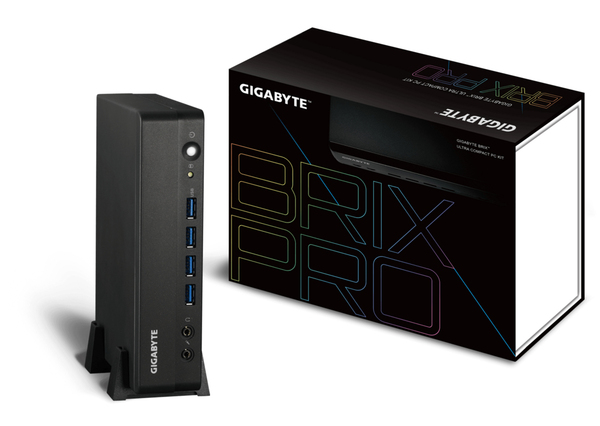

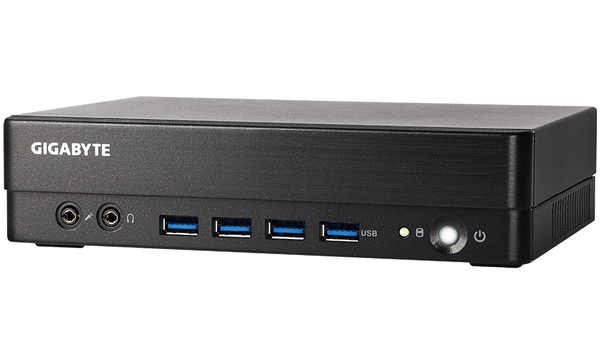

The GIGABYTE BRIX PRO GB-BSI5-1135G7 is a mini PC barebone kit designed for users who require a compact and customizable computing solution. It is built around an 11th generation Intel Core i5-1135G7 processor, providing a foundation for tasks ranging from office productivity to digital signage. As a barebone system, it does not include memory, storage, or an operating system, which allows for configuration based on specific performance and budget requirements. The unit's small chassis is suitable for environments where desk space is limited or for embedded applications.
The system's motherboard supports up to 64 GB of DDR4-3200 memory via two SO-DIMM slots. For storage, it includes two M.2 slots, one supporting PCIe Gen4 x4 for high-speed NVMe SSDs and a second supporting either PCIe Gen3 x4 or SATA drives. Integrated Intel Iris Xe Graphics can drive up to four displays simultaneously through four standard HDMI ports. Connectivity options are comprehensive, featuring Wi-Fi 6, Bluetooth 5.2, a Thunderbolt 4 port, and dual Ethernet controllers, one operating at 2.5 GbE and the other at 1 GbE for flexible network configurations.
Key Features:- Processor: Intel Core i5-1135G7 (4 cores, 8 threads, up to 4.2 GHz)
- Memory: Supports up to 64 GB DDR4-3200 RAM via two SO-DIMM slots
- Storage: Features one M.2 PCIe Gen4 and one M.2 PCIe Gen3/SATA slot
- Graphics: Integrated Intel Iris Xe Graphics
- Operating System: Not included
- Networking: Wi-Fi 6 (802.11ax), Bluetooth 5.2, 2.5 GbE + 1 GbE LAN

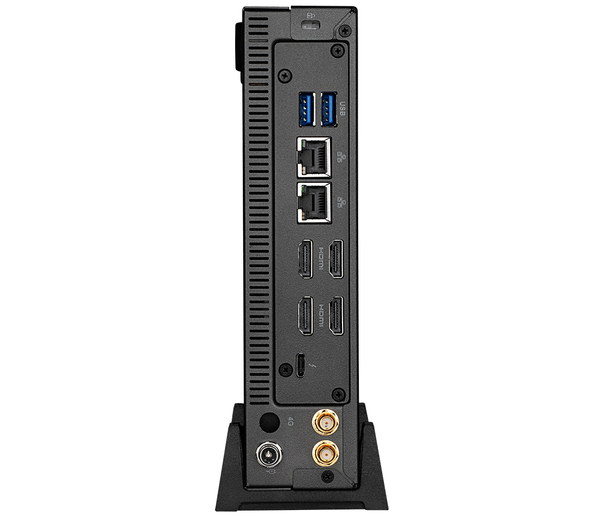

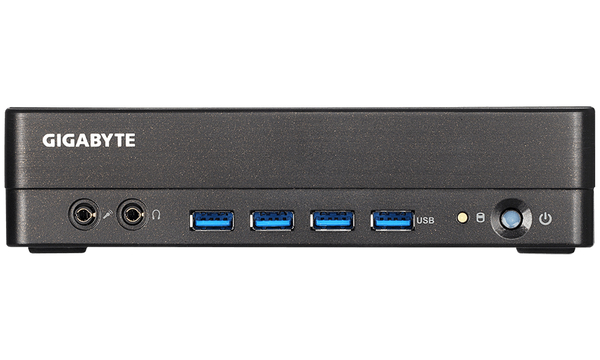

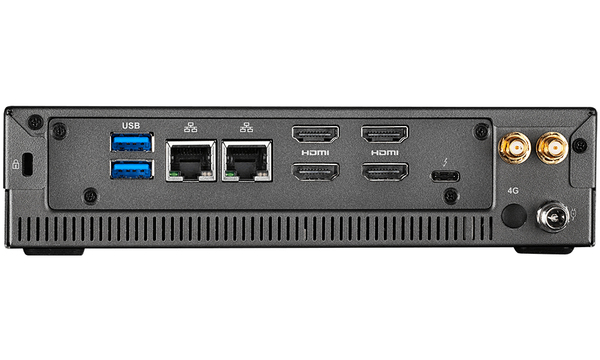

- Ports: 1x Thunderbolt 4, 4x USB 3.2 Gen 1, 2x USB 2.0, 4x HDMI, headphone/microphone jack
- Chassis & Size: Mini PC Barebone (196.2 × 140 × 44.4 mm)
- Power Supply: 135 W
