Specifications
Description
Store availability
Delivery
Price development
Manuals
| Processor | |
| Processor model | i3-10110U |
| Processor manufacturer | Intel |
| Processor lithography | 14 nm |
| Processor family | Intel Core i3 |
| Processor socket | BGA 1528 |
| Processor cores | 2 |
| Processor threads | 4 |
| Built-in processor |  |
| PCI Express slots version | 3.0 |
| Processor boost frequency | 4.1 GHz |
| Processor cache | 4 MB |
| CPU configuration (max) | 1 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| Processor frequency | 2.1 GHz |
| Thermal Design Power (TDP) | 25 W |
| Processor codename | Comet Lake |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Processor generation | 10th gen Intel® Core™ i3 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| ECC |  |
| Number of DIMM slots | 2 |
| Memory clock speed | 2666 MHz |
| Memory bandwidth (max) | 42.6 GB/s |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2666 MHz |
| Supported memory types | DDR4 |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Removable memory card slot | SDXC with UHS-II support |
| Display | |
| Touchscreen | |
| Audio | |
| Built-in speaker(s) | |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | |
| DC-in jack | |
| DVI port | |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Number of SATA III connectors | 2 |
| Internal USB 2.0 ports quantity | 2 |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| Combo headphone/mic port | |
| USB ports quantity | 7 |
| Graphics output | HDMI 2.0b; USB-C (DP1.2) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| M.2 card slot (storage) | 2242/2280 |
| Weight & dimensions | |
| Height | 51 mm |
| Width | 117 mm |
| Depth | 112 mm |
| Energy management | |
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 V |
| Power supply | 90 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 40 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Networking | |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.0 |
| Ethernet LAN | |
| Bluetooth | |
| LAN controller | Intel® I219-V |
| Wi-Fi | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Storage | |
| Compatible memory cards | SDXC |
| RAID levels | 0, 1 |
| Card reader integrated | |
| Number of storage drives supported | 2 |
| Storage drive sizes supported | M.2,2.5 |
| Supported storage drive types | HDD & SSD |
| SSD form factor | M.2 |
| Operating system/software | |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Operating system installed | |
| Operating system architecture | 64-bit |
| Windows operating systems supported | Windows 10 x64 |
| Packaging content | |
| Mouse included | |
| Keyboard included | |
| Processor included | Intel® Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz) |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| Number of M.2 (M) slots | 1 |
| Other features | |
| HDD size | 2.5" |
| Number of SATA connectors | 2 |
| DC input voltage | 19 V |
| Launch date | Q2'21 |
| Additional headers | CEC, 2x USB2.0, FRONT_PANEL, RGB |
| Processor ARK ID | 196451 |
| Design | |
| Chassis type | UCFF |
| Cable lock slot | |
| LED indicators | |
| Product colour | Black |
| On/off switch | |
| Cooling type | Passive |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| Status | Launched |
| ARK ID | 214604 |
| Graphics | |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card model | Not available |
| On-board graphics card | |
| Number of displays supported | 3 |
| Discrete graphics card | |
| Processor special features | |
| Intel® My WiFi Technology (Intel® MWT) | |
| Intel® Identity Protection Technology (Intel® IPT) | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | |
| Intel® Clear Video HD Technology (Intel® CVT HD) | |
| Intel Flex Memory Access | |
| Intel® AES New Instructions (Intel® AES-NI) | |
| Enhanced Intel SpeedStep Technology | |
| Execute Disable Bit | |
| Idle States | |
| Thermal Monitoring Technologies | |
| Intel Trusted Execution Technology | |
| Intel VT-x with Extended Page Tables (EPT) | |
| Embedded options available | |
| Intel Rapid Storage Technology | |
| Intel® High Definition Audio (Intel® HD Audio) | |
| Intel TSX-NI | |
| Intel® Secure Key | |
| Intel 64 | |
| Intel Stable Image Platform Program (SIPP) | |
| Intel® OS Guard | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel Clear Video Technology | |
| Intel Virtualization Technology (VT-x) | |
| Intel® Platform Trust Technology (Intel® PTT) | |
| Intel® Optane™ Memory Ready | |
| Intel® vPro™ Platform Eligibility | |
| Performance | |
| Motherboard form factor | UCFF |
| Audio output channels | 7.1 channels |
| Processor socket | BGA 1528 |
| Trusted Platform Module (TPM) | |
| Supported RAID configuration | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Consumer infrared Rx sensor | |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| EAN | 5032037221160 |
| Warranty | 1 year |

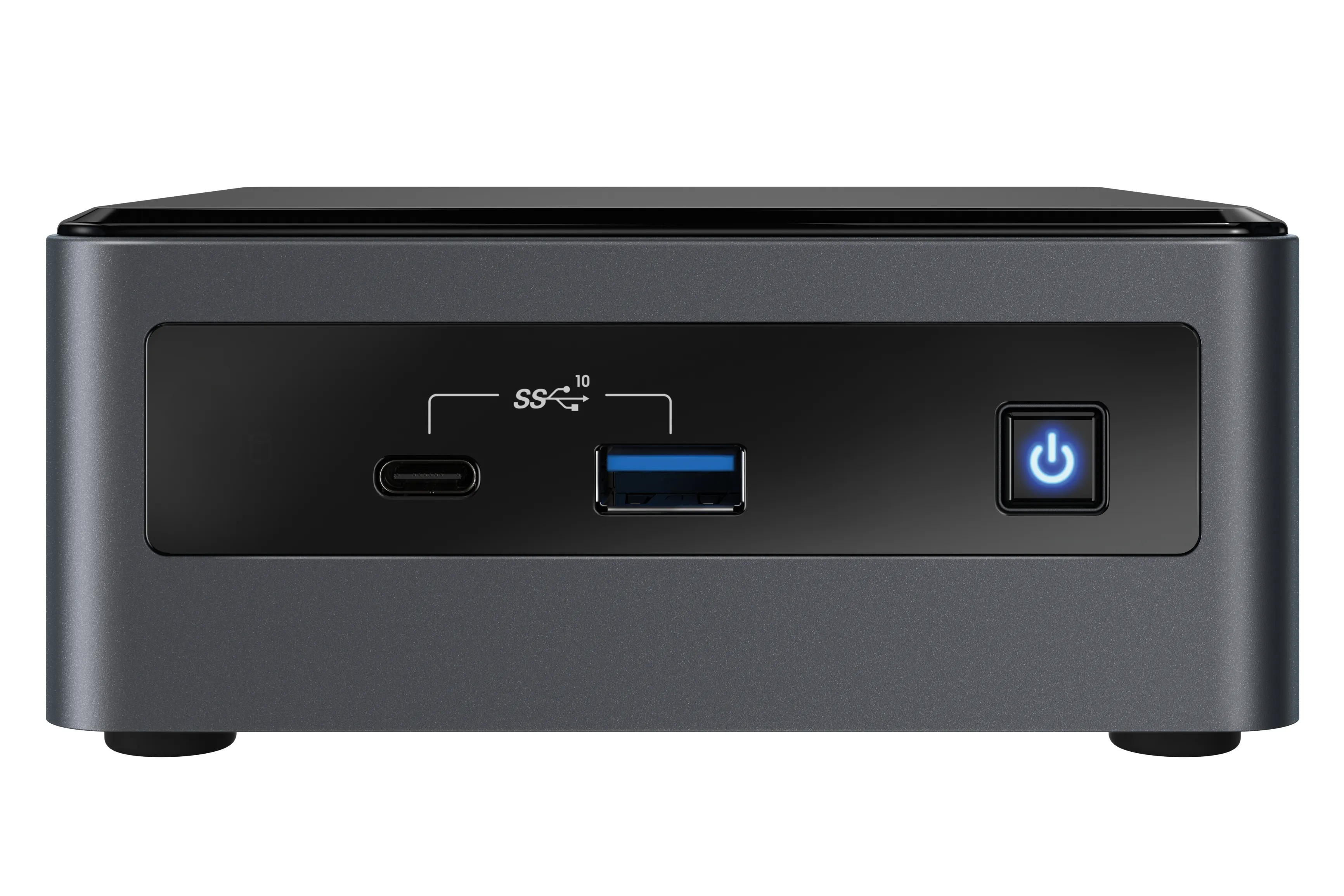

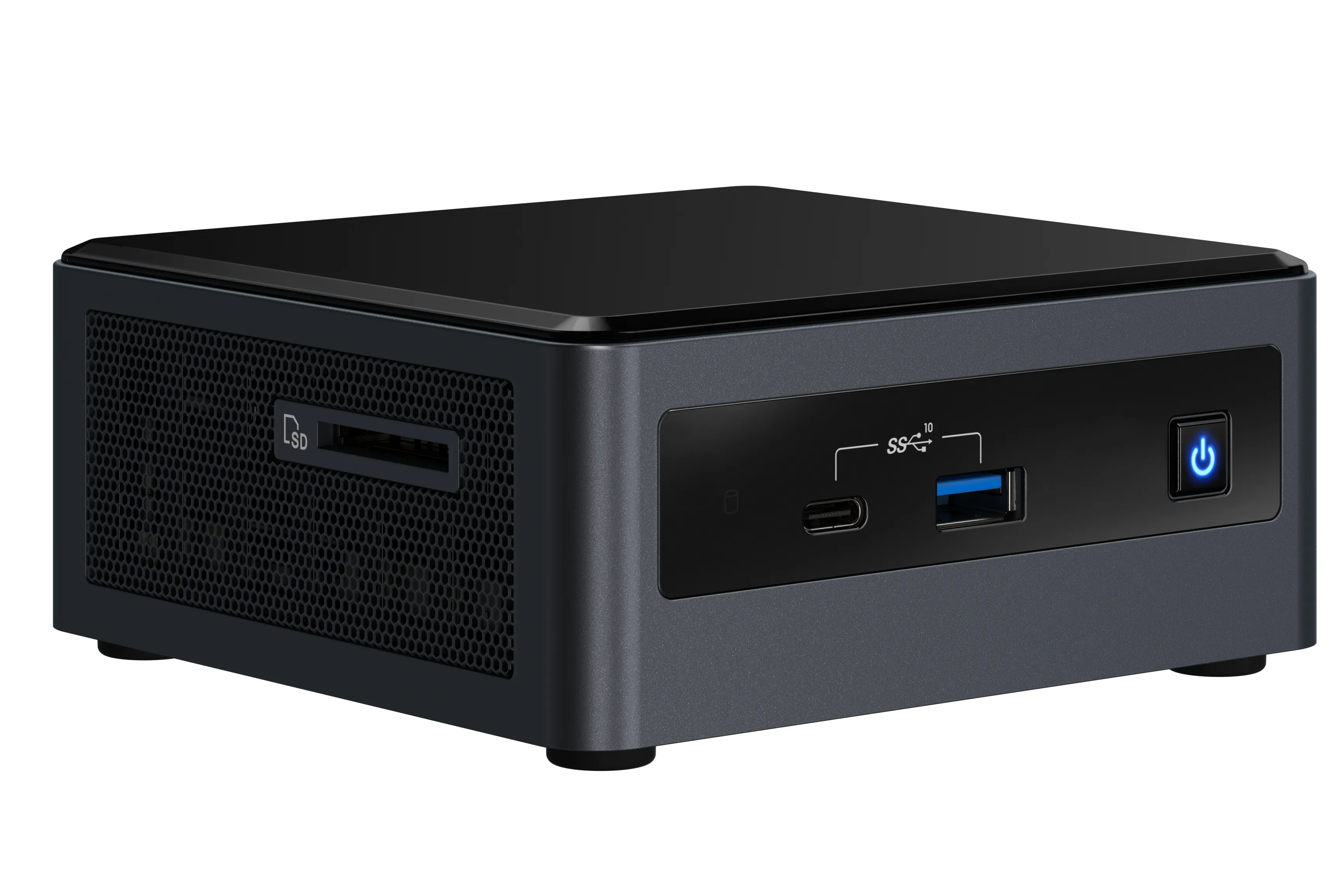

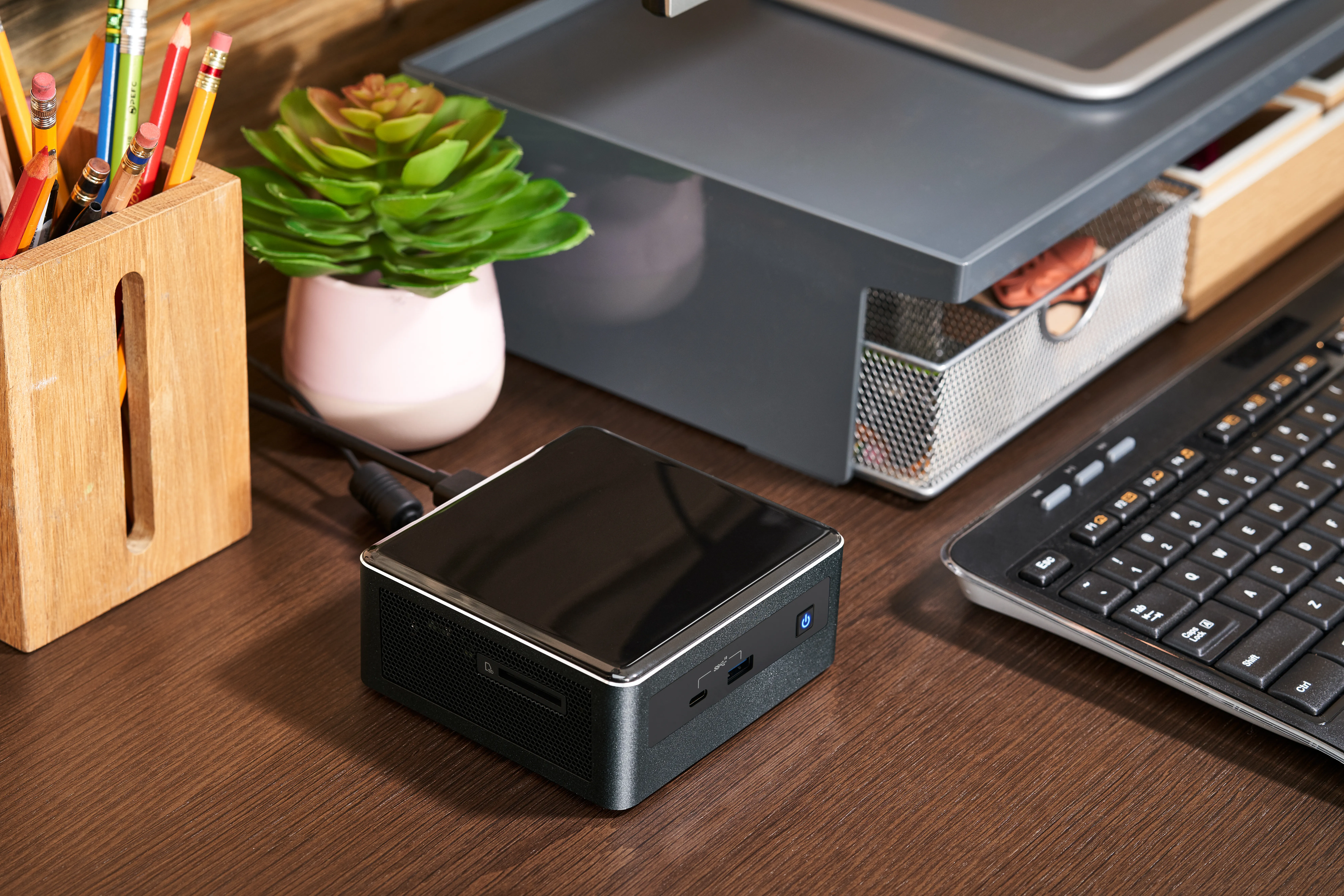

The Intel NUC 10 Performance kit is a barebone mini PC system designed for users to build a custom-configured computer. This compact chassis houses a 10th Generation Intel Core i3-10110U processor, providing a solid foundation for everyday computing and productivity tasks. As a barebone unit, it requires the installation of system memory, a storage drive, and an operating system, offering flexibility in component selection. Its small footprint makes it suitable for environments where space is limited, such as home offices or media centers. The system is engineered to deliver efficient performance for a range of uses.

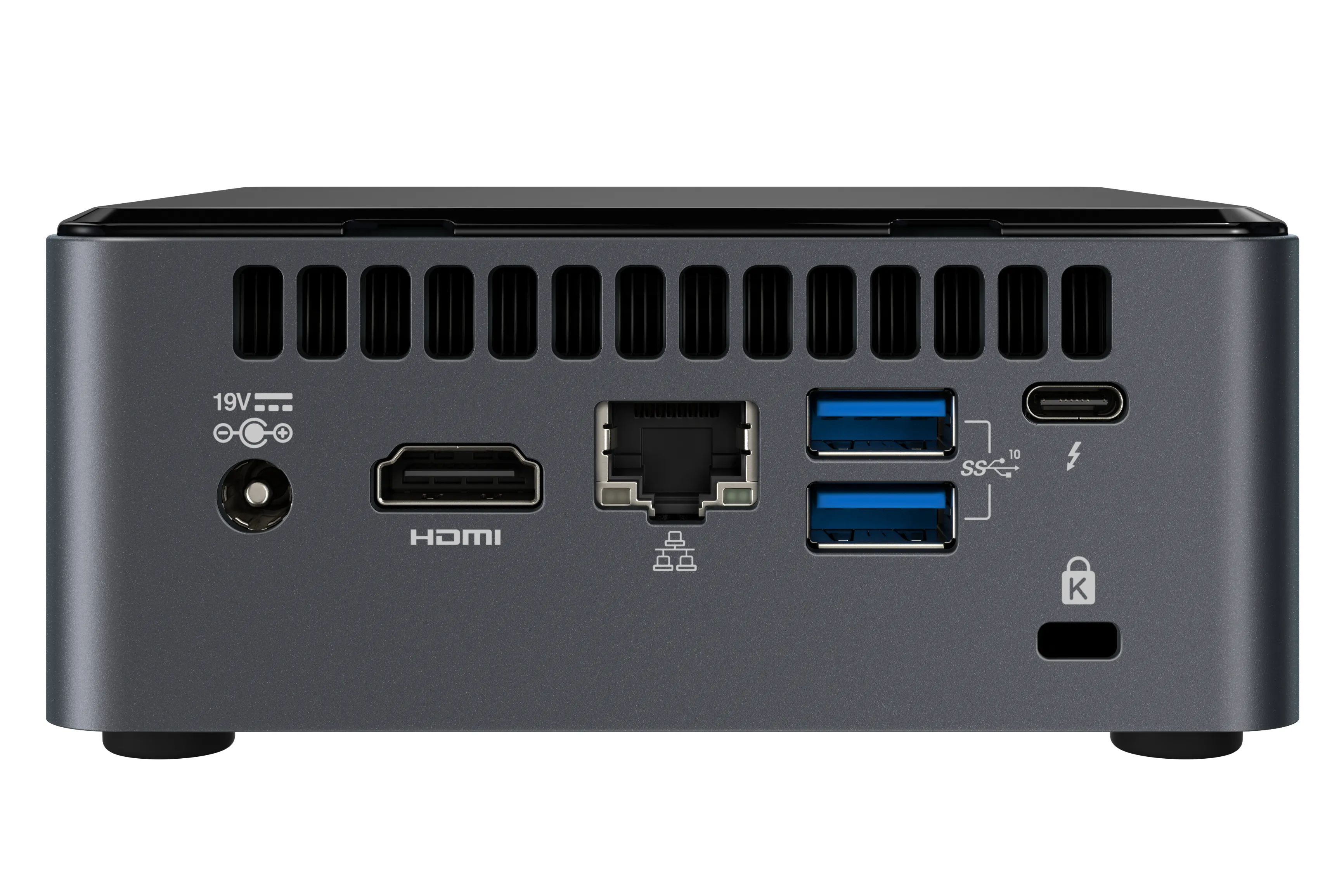

The device features integrated Intel UHD Graphics, with video output handled by a single HDMI port. For connectivity, it is equipped with Wi-Fi 6 and Bluetooth 5.0 for wireless connections, alongside a Gigabit Ethernet port for wired networking. A key feature is the inclusion of a Thunderbolt 3 port, which supports high-speed data transfer and peripheral connections through a single interface. The unit also includes an integrated card reader for direct media access from compatible memory cards. The internal design supports the installation of both solid-state and hard disk drives.
Key Features:- Processor: Intel Core i3-10110U, 2 cores/4 threads, 2.1 GHz base/4.1 GHz boost
- Memory: Supports up to 64 GB DDR4-2666 (RAM not included)
- Storage: Supports HDD and SSD installation (storage not included)
- Graphics: Integrated Intel UHD Graphics
- Operating system: Not included
- Networking: Wi-Fi 6 (802.11ax), Gigabit Ethernet, Bluetooth 5.0
- Ports: 1x Thunderbolt 3, 1x HDMI, headphone/microphone jack, integrated card reader
- Chassis & size: Mini PC Barebone, 117 mm × 112 mm × 51 mm
- Power supply: 90 W
