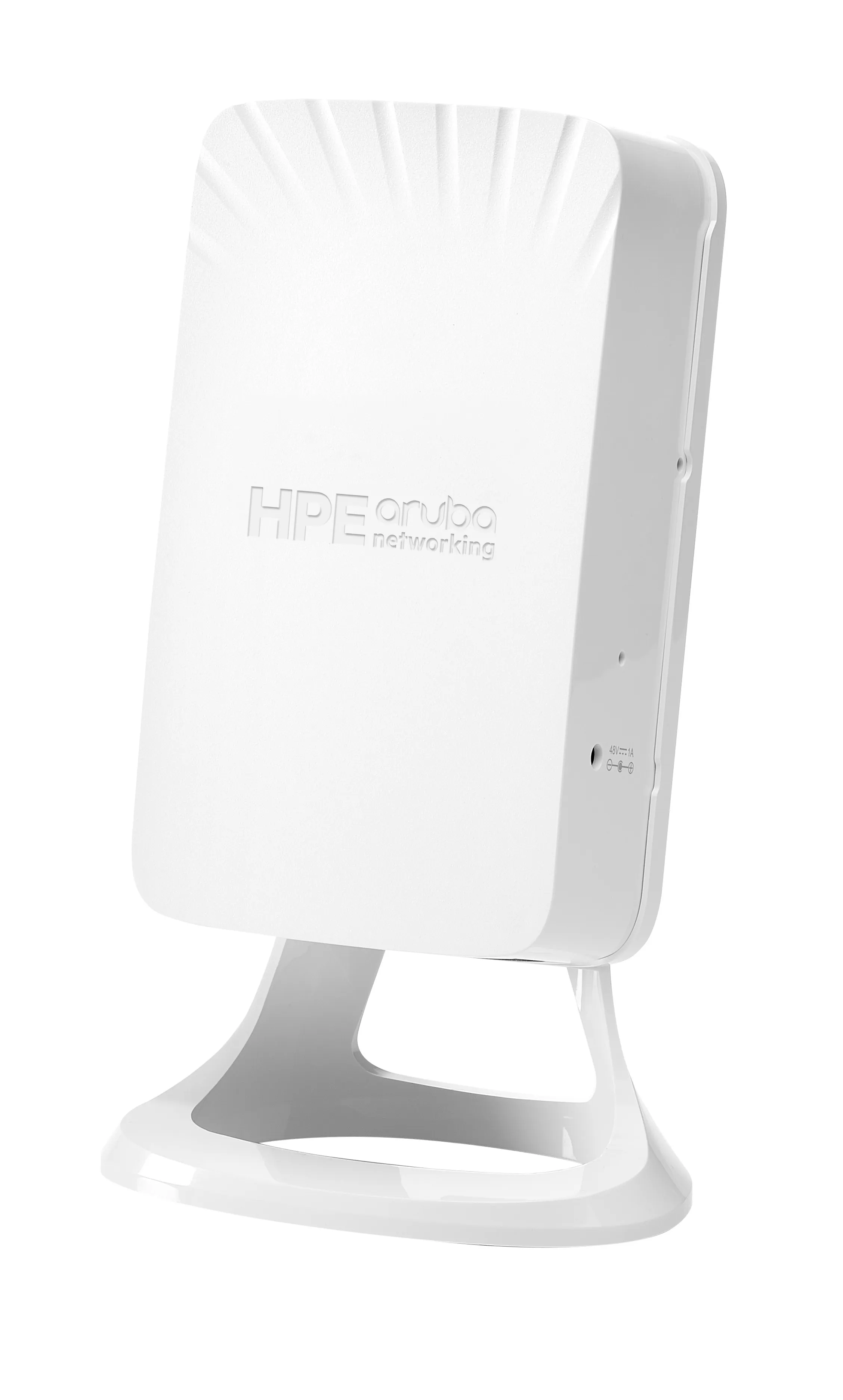

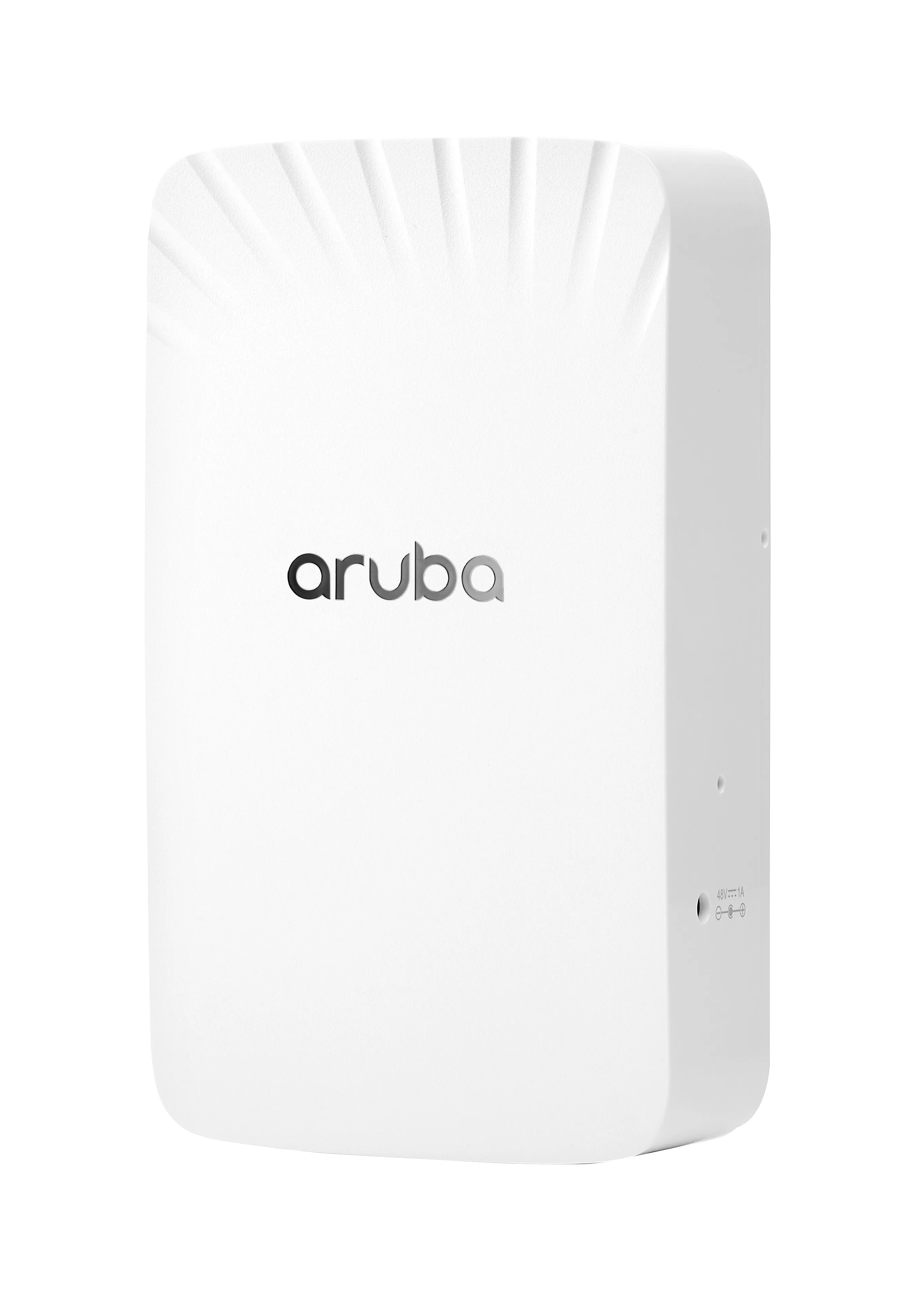

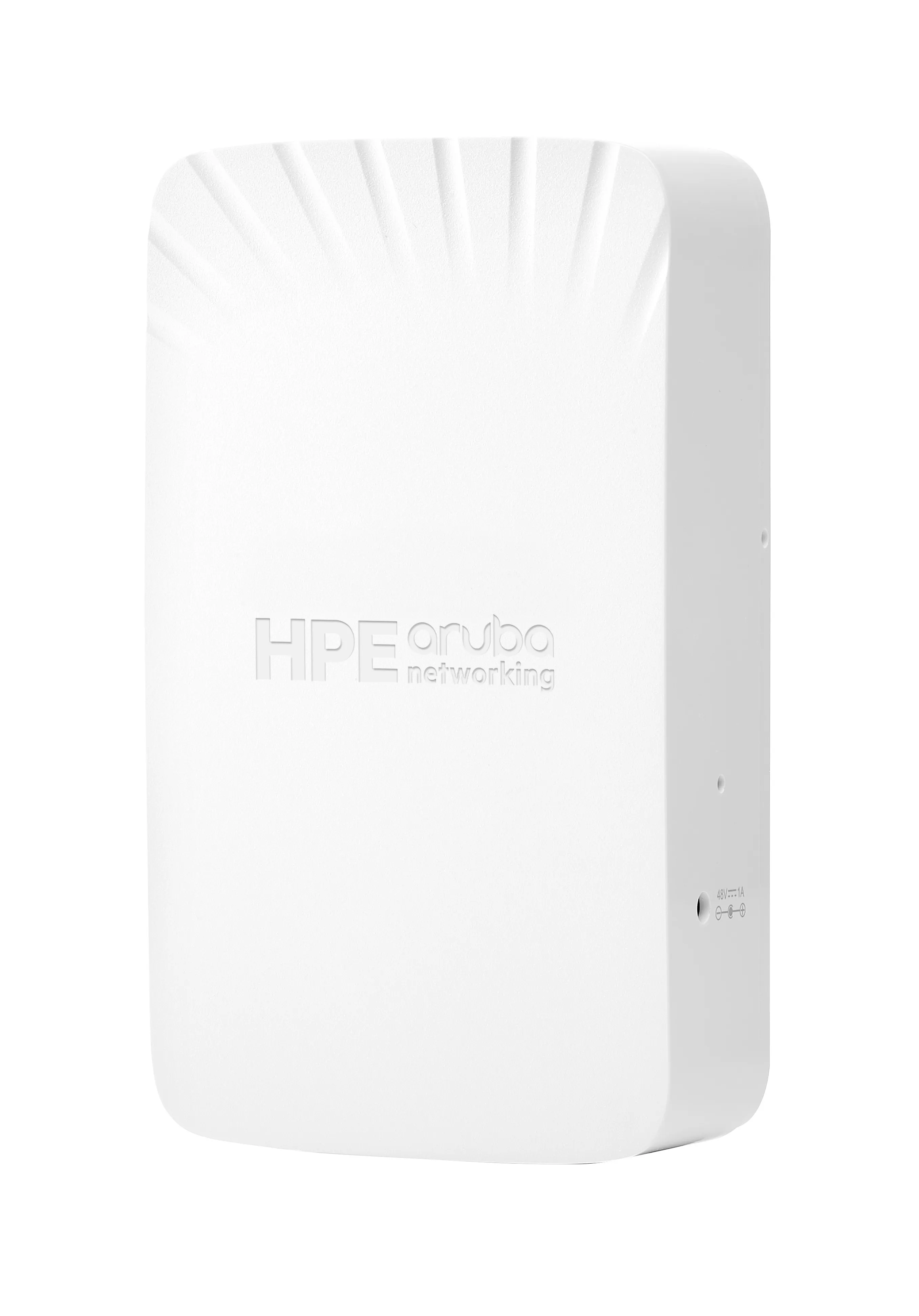

Aruba AP-505H (RW) TAA Unified AP

Manufacturer: ARUBA
ID: R3V47A
140090€ Show VAT 0% Show VAT 25,5%
Estimated delivery: 29.10 - 03.11
Supplier dispatch ETA: 27.10.2025
Select your store
Supplier dispatch ETA: 27.10.2025 Open today: 10:00 - 18:00 About this store
Supplier dispatch ETA: 27.10.2025 Open today: 09:00 - 17:00 About this store
Supplier dispatch ETA: 27.10.2025 Open today: 10:00 - 17:00 About this store
Supplier dispatch ETA: 27.10.2025 Open today: 10:00 - 18:00 About this store
Supplier dispatch ETA: 27.10.2025 Open today: 10:00 - 17:00 About this store
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
USB connector typeUSB Type-A
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports5
Weight & dimensions
Weight360 g
Height150 mm
Width86 mm
Depth47 mm
Energy management
Power consumption (max)50 W
Operational conditions
Operating relative humidity (H-H)5 - 93%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Security
Security algorithmsWPA, WPA2, WPA3
Certificates
CertificationNone
Compliance certificatesLow Voltage Directive (LVD)
Antenna
Antenna typeInternal
Antenna gain level (max)5.4 dBi
Antennas quantity2
Antenna featuresIntegrated antenna
Antenna direction typeSemi-directional
Design
Product colourWhite
PlacementTable, Wall
Features
Maximum data transfer rate1487 Mbit/s
Bluetooth version5.0
Modulation16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Spread spectrum methodDSSS, OFDM, OFDMA
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz
Bluetoothcheckmark
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Auto MDI/MDI-Xcheckmark
2.4 GHzcheckmark
5 GHzcheckmark
MIMOcheckmark
MIMO typeMulti User MIMO
Maximum data transfer rate (2.4 GHz)287 Mbit/s
Maximum data transfer rate (5 GHz)1200 Mbit/s
EAN190017395715
Warranty1 year
Source: Icecat.biz
HPE Aruba Networking 500H Series Unified Hospitality Access Points delivers cost-effective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.5 Gbps maximum combined speed, Zero Touch Provisioning, and wired ports, the 500H Series is ready to improve wireless experiences for guests, employees, students, and teleworkers. The 500H Series is Wi-Fi CERTIFIED™ and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500H Series includes a limited lifetime warranty.

What is new supporting point:
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support.
Cost-effective Wi-Fi 6 hospitality access points provide up to 1.5 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices.
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
The AP provides IoT-ready Bluetooth 5 and Zigbee support.
Dynamic Segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across all networks, enhancing user and device security.
Zero Touch Provisioning that provides ease of implementation in branch offices and remote sites, without on-site technical expertise.
