Asus ZenWiFi XT8 Mesh WiFi System, Wi-Fi 6, AX6600, Tri-band, 2 pcs, with 2.5G WAN, Black
Manufacturer: ASUS
ID: 90IG0590-MO3G60
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| Memory card slot(s) |  |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB port |  |
| Weight & dimensions | |
| Weight | 716 g |
| Height | 161.5 mm |
| Width | 160 mm |
| Depth | 75 mm |
| Energy management | |
| Power consumption (typical) | 31 W |
| Output voltage | 19 V |
| Power over Ethernet (PoE) | |
| Output current | 1.75 A |
| Power source type | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 110 - 240 V |
| Protocols | |
| DHCP client | |
| DHCP server | |
| Universal Plug and Play (UPnP) | |
| Networking | |
| Ethernet LAN | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| VPN support | IPSec, PPTP, L2TP, PPTP, OpenVPN |
| Ethernet LAN data rates | 1000 Mbit/s |
| Port forwarding | |
| Dynamic DNS (DDNS) | |
| Ethernet LAN interface type | Gigabit Ethernet |
| VPN Passthrough | |
| Packaging data | |
| Number of products included | 2 pc(s) |
| Security | |
| Security algorithms | WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPS |
| NAT functionality | PPTP, L2TP, IPSec, RTSP, H.323, SIP, PPPoE |
| System event log | |
| Parental control | |
| DMZ support | |
| IP address filtering | |
| DoS attack prevention | |
| Network address translation (NAT) | |
| Firewall | |
| URL filtering | |
| Guest access | |
| Filtering | |
| Stateful Packet Inspection (SPI) | |
| Wireless LAN features | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Modulation | 1024-QAM |
| Wi-Fi | |
| Static IP | |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| WLAN data transfer rate (max) | 6600 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Point-to-point protocol over Ethernet (PPPoE) | |
| Management features | |
| Quality of Service (QoS) support | |
| Web-based management | |
| Reset button | |
| WPS push button | |
| Bandwidth control | |
| MU-MIMO technology | |
| Intelligent Mesh technology | |
| Packaging content | |
| AC adapter included | |
| Ethernet cable | |
| Number of units included | 2 pc(s) |
| Antenna | |
| Antennas quantity | 6 |
| Detachable antenna(s) | |
| Antenna design | Internal |
| Other features | |
| USB ports quantity | 1 |
| Design | |
| Wall mountable | |
| Product colour | Black |
| Indication light | |
| Number of devices supported | 100 |
| On/off switch | |
| Placement | Desktop |
| Product type | Tabletop router |
| Maximum coverage | 510 m² |
| Mobile networking | |
| 3G | |
| 4G | |
| 5G | |
| Features | |
| Processor frequency | 1500 MHz |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Firmware upgradeable | |
| Processor cores | 4 |
| Built-in processor | |
| Works with Amazon Alexa | |
| BeamForming | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| WAN connection | |
| WAN connection type | RJ-45 |
| DSL WAN | |
| Ethernet WAN | |
| SIM card slot | |
| 3G/4G USB modem compatibility | |
| EAN | 4718017436670 |
| Warranty | 1 year |
The ASUS ZenWiFi AX XT8 is a tri-band mesh system utilizing the Wi-Fi 6 (802.11ax) standard to provide a maximum combined throughput of 6600 Mbit/s. This system allocates specific data rates across three bands, offering 574 Mbit/s on the 2.4 GHz frequency, 4804 Mbit/s on the first 5 GHz band, and 4000 Mbit/s on the second 5 GHz band. It provides coverage for areas up to 510 m² and supports up to 100 simultaneous device connections. Technical implementations such as MU-MIMO, beamforming, and 1024-QAM modulation are integrated to maintain signal stability and efficiency across the network node deployment.

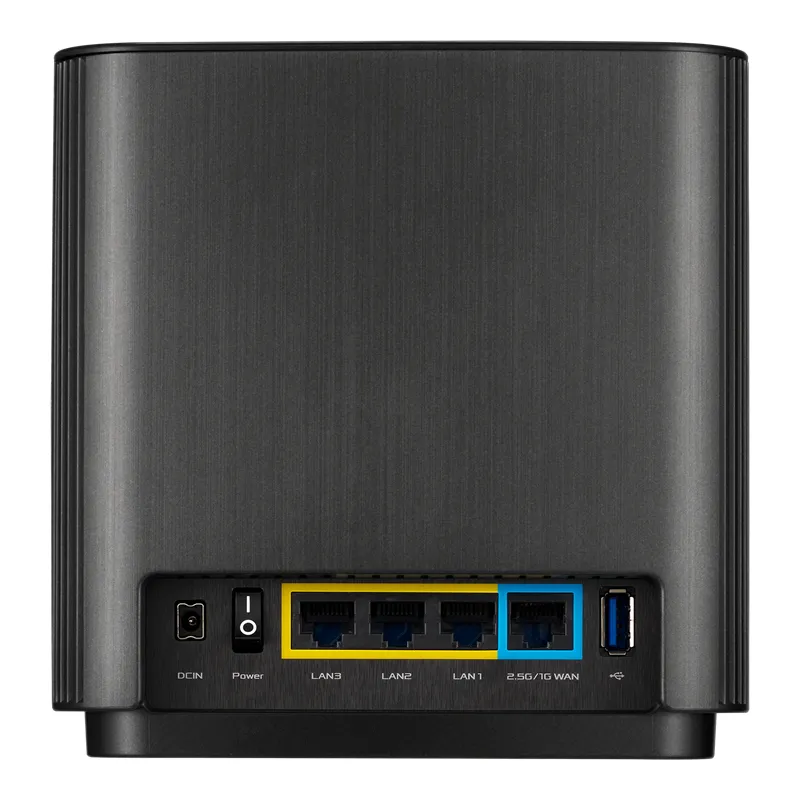

Wired connectivity consists of one 2.5 Gigabit Ethernet WAN port and three Gigabit Ethernet LAN ports for local networking. The hardware features six internal antennas and a single USB 3.1 Gen 1 port for peripheral devices. Security is managed through WPA2 and WPA-Enterprise protocols, supported by a built-in firewall and advanced parental controls. This desktop-placed system also provides VPN server and client support for IPSec, PPTP, L2TP, and OpenVPN, alongside web-based management for network configuration. The package includes two units to establish the mesh fabric.
Key Features:- Wi-Fi Standard: Wi-Fi 6
- Wi-Fi Bands: Tri-band (2.4 GHz, 5 GHz, 5 GHz)
- Maximum Coverage: 510 m²
- Maximum Wi-Fi Speed: 6600 Mbit/s
- Ethernet LAN Ports: 3
- Ethernet Interface Type: Gigabit Ethernet, 2.5 Gigabit Ethernet
- USB Ports: 1
- Security Algorithms: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPS
- VPN Support: IPSec, PPTP, L2TP, OpenVPN
- Number of Units: 2 pc(s)
