Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Display | |
| Built-in display | ![]() |
| Ports & interfaces | |
| Serial interface type | RS-232C |
| USB 2.0 ports quantity | 2 |
| Headphone outputs | 1 |
| DC-in jack | ![]() |
| DVI port | ![]() |
| VGA (D-Sub) ports quantity | 1 |
| Audio (L/R) in | 1 |
| HDMI ports quantity | 1 |
| AUX in | ![]() |
| 12V trigger | ![]() |
| USB 2.0 Type-A ports quantity | 2 |
| HDBaseT port | ![]() |
| USB 2.0 Type-B ports quantity | 1 |
| Lens system | |
| Optical zoom | 1x |
| Zoom capability | ![]() |
| Focus | Motorized |
| Focal length range | varies by lens |
| Throw ratio | 0.35 - 10.11:1 |
| Zoom type | Auto |
| Interchangeable lens | ![]() |
| Weight & dimensions | |
| Weight | 16.3 kg |
| Package weight | 21.5 kg |
| Height | 189 mm |
| Width | 545 mm |
| Depth | 436 mm |
| Package depth | 760 mm |
| Package height | 270 mm |
| Package width | 570 mm |
| Energy management | |
| Power consumption (typical) | 535 W |
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| Auto power off | ![]() |
| Power consumption (economy mode) | 452 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Networking | |
| Ethernet LAN | ![]() |
| Bluetooth | ![]() |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | ![]() |
| Miracast | ![]() |
| Projector | |
| Contrast ratio (typical) | 2000:1 |
| Projection technology | 3LCD |
| Projector brightness | 8500 ANSI lumens |
| Heat dissipation | 1819 BTU/h |
| Keystone correction, vertical | -45 - 45° |
| Keystone correction, horizontal | -30 - 30° |
| Projector brightness (economic mode) | 5950 ANSI lumens |
| Matrix size | 1.93 cm (0.76") |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10, 21:9 |
| Projector native resolution | WUXGA (1920x1200) |
| Number of colours | 1.07 billion colours |
| Projector brightness (portrait mode) | 8500 ANSI lumens |
| Smart projector | ![]() |
| Video | |
| Analog signal format system | Not supported |
| Full HD | ![]() |
| 3D | ![]() |
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709 |
| Storage | |
| Card reader integrated | ![]() |
| Lamps | |
| Service life of lamp | 20000 h |
| Service life of lamp (economic mode) | 30000 h |
| Operating system/software | |
| Software support | via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery |
| Packaging content | |
| Bundled software | Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool |
| AC adapter included | ![]() |
| Remote control included | ![]() |
| Cables included | AC |
| Carrying case | ![]() |
| Manual | ![]() |
| Warranty card | ![]() |
| Batteries included | ![]() |
| Mounting brackets included | ![]() |
| WLAN adapter included | ![]() |
| Other features | |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Design | |
| Cable lock slot | ![]() |
| Product colour | White |
| Ceiling mounting supported | ![]() |
| Placement | Ceiling, Desktop, Flying frame |
| Market positioning | Presentation |
| Product type | Large venue projector |
| Cable lock slot type | Kensington |
| Features | |
| Noise level | 35 dB |
| On Screen Display (OSD) | ![]() |
| Country of origin | Philippines |
| HDCP | ![]() |
| Noise level (economic mode) | 30 dB |
| Password protection | ![]() |
| High Dynamic Range (HDR) supported | ![]() |
| High Dynamic Range (HDR) technology | HDR10, HLG |
| Multimedia | |
| Built-in speaker(s) | ![]() |
| Logistics data | |
| Products per pallet | 14 pc(s) |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
| Products per pallet (UK) | 14 pc(s) |
| Light source | |
| Light source type | Laser |
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| EAN | 8715946697291 |
| Warranty | 6 months |

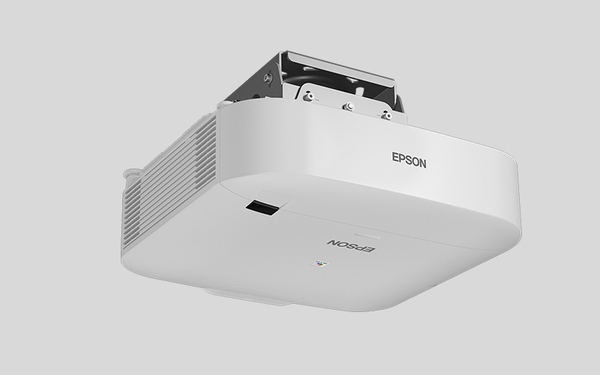

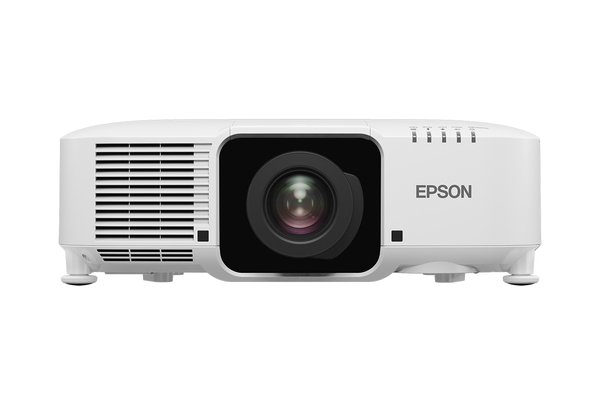

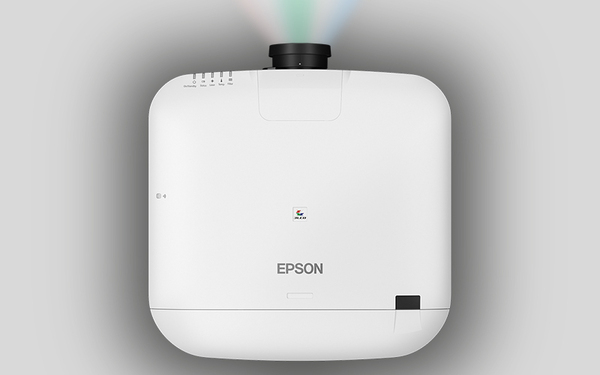

The Epson EB-PU1008W is an installation projector that utilizes 3LCD technology to deliver a brightness of 8,500 ANSI lumens. It has a native WUXGA resolution of 1920 x 1200 and a 16:10 aspect ratio, with support for 4K enhancement technology to process higher-resolution signals. The laser light source is designed for longevity, rated for up to 20,000 hours of operation in standard mode. This combination of brightness and resolution makes it suitable for use in environments with significant ambient light.

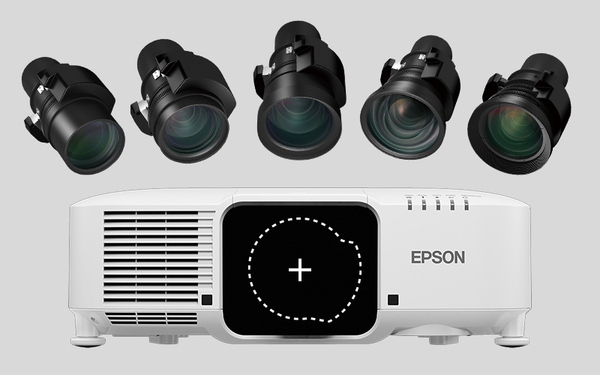

Designed for professional AV applications, this model offers installation flexibility through its compatibility with a range of interchangeable Epson lenses. The projector is equipped with motorized focus and lens shift, alongside horizontal and vertical keystone correction, which facilitates precise image alignment without physical repositioning. These features are intended for complex setups in large venues such as auditoriums, lecture halls, and museums. Its operational noise level is rated at 35 dB in standard mode and 30 dB in economic mode.
The unit provides a selection of inputs for connecting various source devices. It includes one HDMI 2.3 port with HDCP support, a DVI port, and two USB 2.0 Type-A ports for direct media playback. For network integration and control, an Ethernet LAN port is also built-in. The chassis is finished in white and measures 545 mm in width and 436 mm in depth, with a weight of 16.3 kg, and it supports ceiling or desktop placement.
Key Features:- Brightness of 8500 ANSI lumens
- 3LCD projection technology
- Native WUXGA (1920 x 1200) resolution
- Laser light source with up to 20,000 hours of service life
- Supports 4K enhancement and HDR10/HLG technologies
- Motorized focus, zoom, and lens shift
- Vertical and horizontal keystone correction
- Features one HDMI 2.3 port and one DVI port
- Includes an Ethernet port for network connectivity
