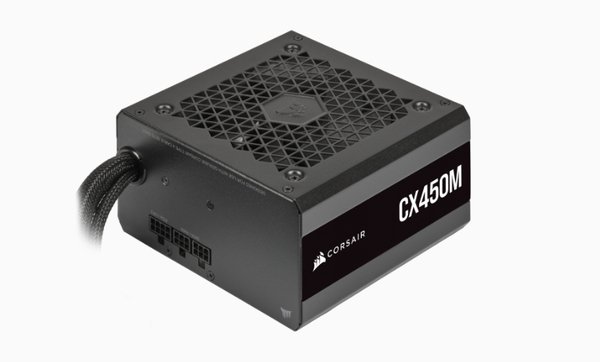

Corsair CX-M Series CX450M 450W - Power supply, 80 Plus Bronze
Manufacturer: CORSAIR
ID: CP-9020219-EU
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces | |
ATX Power connector (24-pin) | ![]() |
Motherboard power connector | 24-pin ATX |
Number of SATA power connectors | 4 |
EPS power connector (8-pin) | ![]() |
PCI Express power connectors (8-pin) | 1 |
PCI Express power connectors (6+2 pin) | 2 |
Cabling type | Non-Modular |
Weight & dimensions | |
Weight | 1.5 kg |
Depth | 140 mm |
Energy management | |
Input current | 5 - 10 A |
Nominal power | 450 W |
Efficiency | 85% |
Combined power (+3.3V) | 110 W |
Combined power (+12V) | 448.8 W |
Combined power (+5V) | 110 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V) | 37.4 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 450 W |
Design | |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Performance | |
Mean time between failures (MTBF) | 100000 h |
ATX version | 2.4 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
EAN | 840006616276 |
Warranty | 1 year |
EFFICIENT POWER FOR NEARLY ANY BUILD
CORSAIR CX-M Series Low-Noise Power Supplies offer semi-modular cabling, a long-lasting rifle bearing fan, and Japanese capacitors for reliable, low-noise operation.

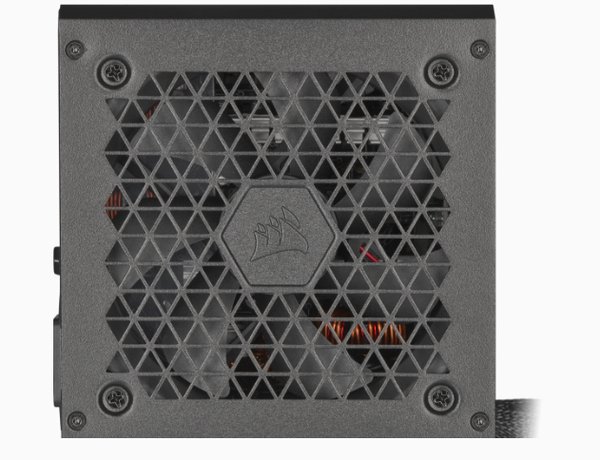

TUNED FOR LOW-NOISE OPERATION
A rifle bearing fan ensures longer life than conventional bearings with less noise, letting you focus more on the task at hand, whether it’s gaming or work.

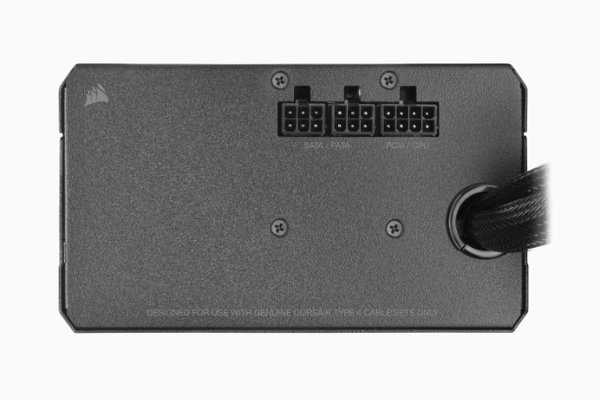

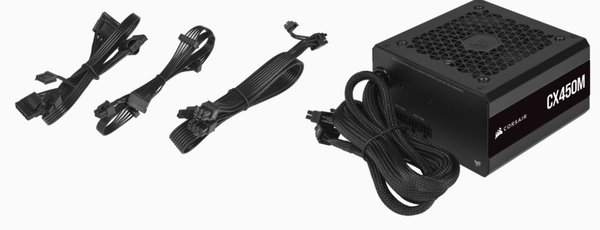

SEMI-MODULAR CABLING
Connect only the cables you need for a cleaner build with easy cable management.
HIGH EFFICIENCY
With upwards of 85% peak efficiency, CX-M produces less noise and less heat, which means less time worrying and more time gaming.
ROBUST DC-DC CONVERSION
For clean, consistent power, each CX-M Series power supply features robust DC-DC conversion and 105°C rated Japanese primary capacitors for unparalleled reliability.
COMPACT SIZE
At just 140mm long, the CX-M Series offers great flexibility in build configurations.
CERTIFICATIONS
The Cybenetics organization measures efficiency and noise levels across the PSU’s entire operational range, using more than 1,450 different load combinations.
The "Bronze" efficiency rating is defined as >=82% & <85% (depending on input voltage).
The "S++" noise level test is measured in those same configurations to be ≥25 dBA & <30 dBA under noise data averaging.
CORSAIR CX-M Series Low-Noise Power Supplies offer semi-modular cabling, a long-lasting rifle bearing fan, and Japanese capacitors for reliable, low-noise operation.
TUNED FOR LOW-NOISE OPERATION
A rifle bearing fan ensures longer life than conventional bearings with less noise, letting you focus more on the task at hand, whether it’s gaming or work.
SEMI-MODULAR CABLING
Connect only the cables you need for a cleaner build with easy cable management.
HIGH EFFICIENCY
With upwards of 85% peak efficiency, CX-M produces less noise and less heat, which means less time worrying and more time gaming.
ROBUST DC-DC CONVERSION
For clean, consistent power, each CX-M Series power supply features robust DC-DC conversion and 105°C rated Japanese primary capacitors for unparalleled reliability.
COMPACT SIZE
At just 140mm long, the CX-M Series offers great flexibility in build configurations.
CERTIFICATIONS
The Cybenetics organization measures efficiency and noise levels across the PSU’s entire operational range, using more than 1,450 different load combinations.
The "Bronze" efficiency rating is defined as >=82% & <85% (depending on input voltage).
The "S++" noise level test is measured in those same configurations to be ≥25 dBA & <30 dBA under noise data averaging.
