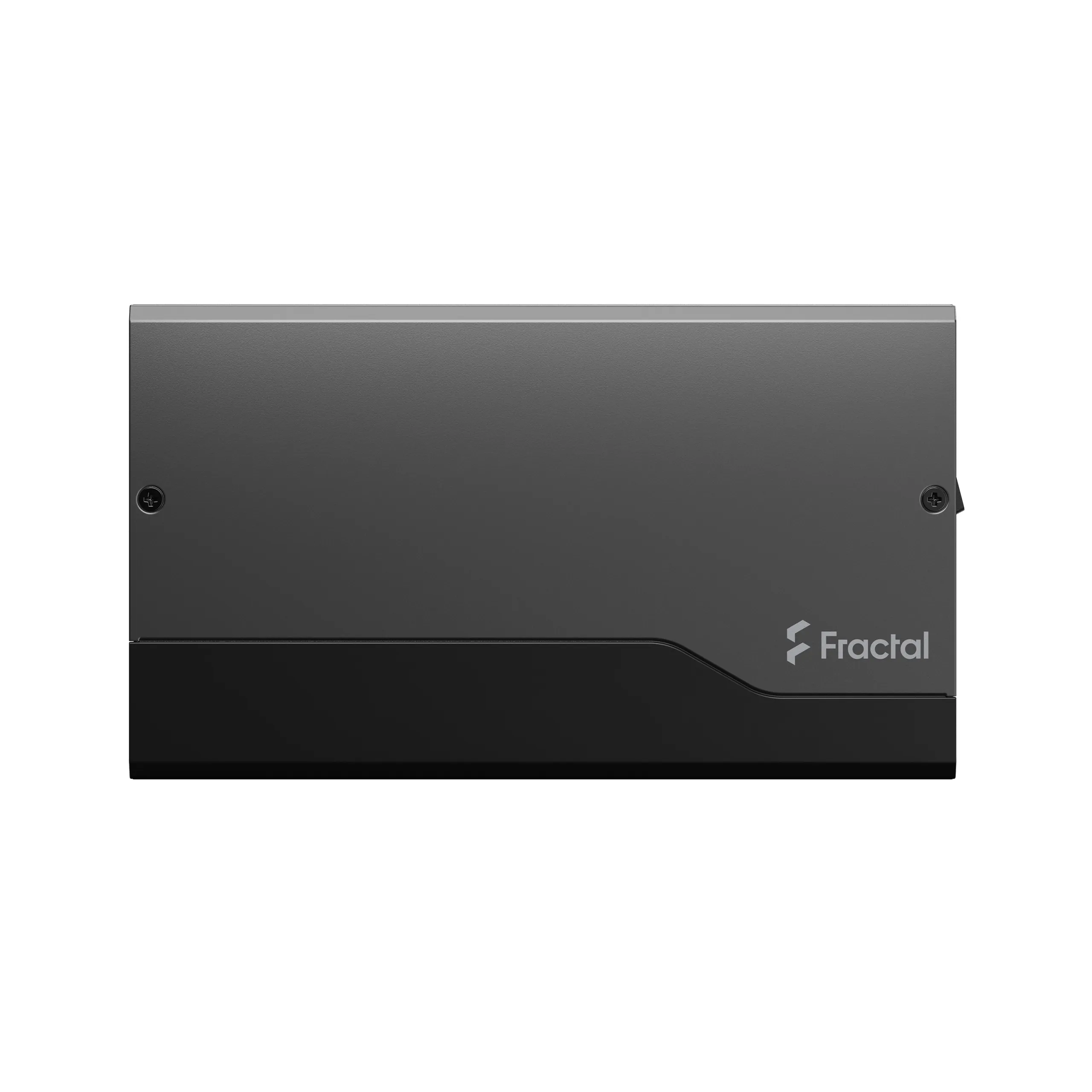

Fractal Design Ion+ 2 760W - PSU, 80 Plus Platinum
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
Motherboard power connector | 20+4 pin ATX |
Number of SATA power connectors | 10 |
Peripheral (Molex) power connectors (4-pin) | 4 |
CPU power connector (4+4 pin) | |
PCI Express power connectors (6+2 pin) | 4 |
Cabling type | Modular |
Motherboard power cable length | 60 cm |
SATA power cable length | 150,400,650 mm |
CPU power cable length | 70 cm |
Peripheral (Molex) power cable length | 150,400 mm |
Weight & dimensions | |
Weight | 2.53 kg |
Height | 86 mm |
Width | 150 mm |
Depth | 150 mm |
Energy management | |
Input current | 10A/5A |
Nominal power | 760 W |
Power protection features | Over power, Overheating, Over voltage, Under voltage, Over current, Short circuit |
Combined power (+3.3V) | 120 W |
Combined power (+5V) | 120 W |
Max output current (+3.3V) | 22 A |
Max output current (+12V) | 63.3 A |
Max output current (+5V) | 22 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 760 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Packaging data | |
Package weight | 3.06 kg |
Package depth | 325 mm |
Package height | 110 mm |
Package width | 210 mm |
Certificates | |
80 PLUS certification | 80 PLUS Platinum |
Design | |
Product colour | Black |
Cooling type | Active |
Fan diameter | 14 cm |
Performance | |
Certification | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC |
Mean time between failures (MTBF) | 100000 h |
Purpose | PC |
Bearing technology | FDB |
Supported motherboard form factors | ATX |
ATX version | 2.52 |
EPS version | 2.92 |
Power supply unit (PSU) form factor | ATX |
Logistics data | |
Harmonized System (HS) code | 84733020 |
EAN | 7340172702870 |
Warranty | 1 year |
80 PLUS® Platinum certified
- 80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation
- Supports the latest ATX 2.52 standard with improved start-up time and transient load response
- Great electrical output quality with tight voltage regulation and low ripple and noise
Premium capacitors
Premium Japanese 105°C capacitors provide superior reliability and durability
Fully modular design
- Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management
- All models include two 8-pin ATX12V/EPS cables, ensuring compatibility with new otherboards
- Premium storage bags for cables and PSU

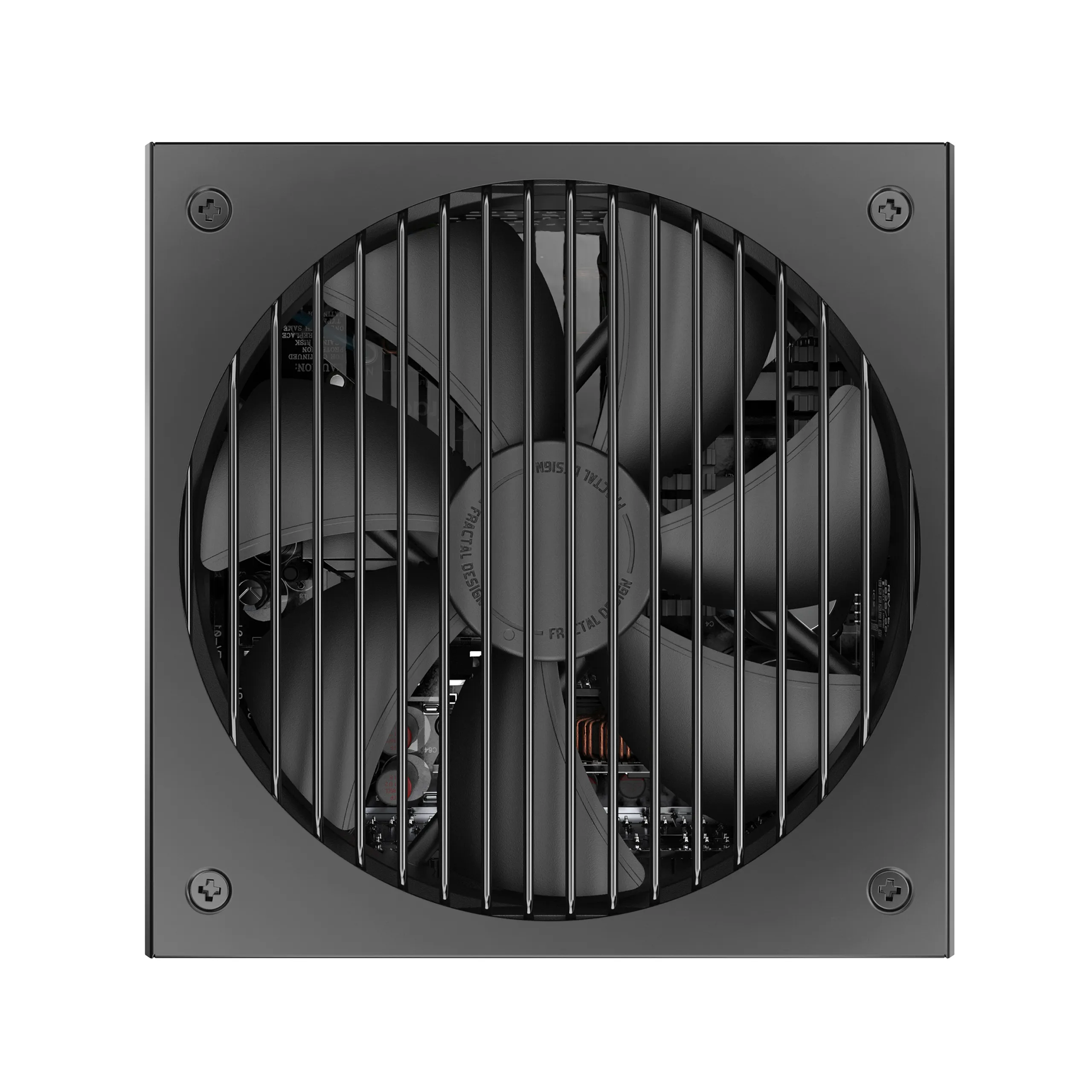

Custom-tailored fan
Equipped with a high-performance Dynamic GP-14 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed and a true long-life FDB bearing
Compact advantages
- Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases
- Extensive 10-year warranty and a full electrical protection suite provides peace of mind
Semi-passive mode
User selectable semi-passive operation allows for either passive operation in low load situations or continuous low speed fan operation for reduced component stress
