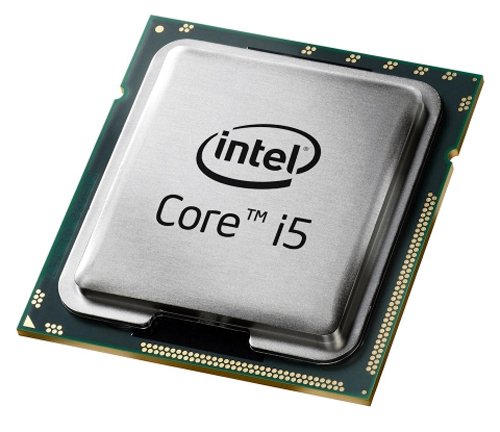

Core i5-650 3200MHz LGA1156 TR

Manufacturer: INTEL
ID: CM80616003174AH
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Technical details
Product typeProcessor
Processor cache4096 KB
StatusDiscontinued
Launch dateQ1'10
Bus type unitsGT/s
Bus bandwidth2.5
Maximum memory16.38 GB
Processor brand nameIntel Core i5 vPro
Last change63903513
Product familyPrevious Generation Intel Core i5 Processor
Processor
Processor modeli5-650
Processor lithography32 nm
Processor familyIntel Core i5
Boxcross
Processor socketLGA 1156 (Socket H)
SteppingC2
Processor cores2
Processor codeSLBLK
CPU multiplier (bus/core ratio)24
Processor threads4
Processor operating modes64-bit
Processor boost frequency3.46 GHz
Processor cache4 MB
Bus typeDMI
Processor frequency3.2 GHz
Processor codenameClarkdale
Processor cache typeL3
Processor seriesIntel Core i5-600 Desktop series
Memory bandwidth supported by processor (max)21 GB/s
Processor ARK ID43546
Memory
Maximum internal memory supported by processor16 GB
Weight & dimensions
Processor package size37.5 x 37.5 mm
Energy management
VID Voltage Range0.65 - 1.400 V
Thermal Design Power (TDP)73 W
Operational conditions
Maximum operating temperature72.6 °C
Tcase72.6 °C
Other features
Maximum internal memory16777 MB
Graphics
On-board graphics card modelcheckmark
On-board graphics cardcheckmark
On-board graphics card base frequency733 MHz
Number of displays supported (on-board graphics)2
Processor special features
Intel® vPro™ Technologycheckmark
Intel® Hyper Threading Technology (Intel® HT Technology)checkmark
Intel® Turbo Boost Technology1.0
Intel FDI Technologycheckmark
Intel® Clear Video HD Technology (Intel® CVT HD)checkmark
Intel Dual Display Capable Technologycheckmark
Intel® AES New Instructions (Intel® AES-NI)checkmark
Enhanced Intel SpeedStep Technologycheckmark
Intel Trusted Execution Technologycheckmark
Intel Enhanced Halt Statecheckmark
Intel VT-x with Extended Page Tables (EPT)checkmark
Intel Demand Based Switchingcross
Intel 64checkmark
Intel Virtualization Technology for Directed I/O (VT-d)checkmark
Intel Virtualization Technology (VT-x)checkmark
Conflict-Free processorcross
Features
Supported instruction setsSSE4.2
PCI Express slots version2.0
Execute Disable Bitcheckmark
Idle Statescheckmark
Thermal Monitoring Technologiescross
CPU configuration (max)1
Number of Processing Die Transistors382 M
Embedded options availablecross
Processing Die size81 mm²
Number of Graphics & IMC Die Transistors177 M
Graphics & IMC lithography45 nm
Graphics & IMC Die Size114 mm²
PCI Express configurations1x16,2x8
Maximum number of PCI Express lanes16
Physical Address Extension (PAE)36 bit
Market segmentDT
EAN0675901022712
Source: Icecat.biz

Unleash the multimedia multitasker within
With intelligent performance that accelerates in response to demanding tasks, such as playing games and editing photos, the Intel Core i5 processor moves faster when you do.

The Intel Core i5 processor automatically allocates processing power where it's needed most. Whether you’re creating HD video, composing digital music, editing photos, or playing the coolest PC games - with the Intel Core i5 processor you can multitask with ease and be more productive than ever.

Get a major boost in PC power with the intelligent performance of the Intel® Core™ i5 processor
32nm dual-core processing runs two independent processor cores in one physical package at the same frequency.

Intel® Turbo Boost Technology maximizes speed for demanding applications, dynamically accelerating performance to match your workload—more performance when you need it the most.

Intel® Hyper-Threading Technology delivers two processing threads per physical core for a total of four threads for massive computational throughput. This 4-way multi-task processing allows each core of your processor to work on two tasks at the same time.

Intel® HD Graphics provides superb visual performance for sharper images, richer color, and life-like video and audio. Available on select models of the all new 2010 Intel® Core™ processor family.

Integrated memory controller enables two channels of high-speed DDR3 1333 MHz memory. This memory controller's lower latency and higher memory bandwidth delivers amazing performance for data-intensive applications.

Intel® Smart Cache is a shared cache dynamically allocated to each processor core, based on workload. This efficient, dual-core-optimized implementation increases the probability that each core can access data from the fast cache, significantly reducing latency to frequently used data and improving performance. Optimized for industry-leading multi-threaded games.
