Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor manufacturer | Intel |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Processor socket | LGA 1700 |
| Memory | |
| Maximum internal memory | 128 GB |
| Non-ECC |  |
| Supported memory clock speeds | 4000,4800,5600,6666 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | |
| Memory slots type | DIMM |
| Number of memory slots | 3 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Networking | |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
| Ethernet LAN | |
| Bluetooth | |
| Wi-Fi | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Internal I/O | |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Chassis intrusion connector | |
| Front panel audio connector | |
| TPM connector | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | |

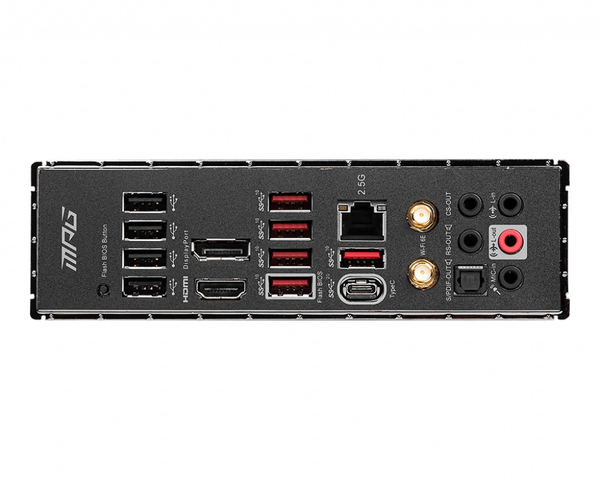

| Back panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | |
| Digital audio optical out | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| Storage controllers | |
| RAID levels | 0,1,5,10 |
| RAID support | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Packaging content | |
| Cables included | SATA |
| Drivers included | |
| Expansion slots | |
| PCI Express x16 slots | 3 |
| PCI Express x4 slots | 1 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | |
| Graphics | |
| Parallel processing technology support | Crossfire |
| Features | |
| Motherboard chipset | Intel Z690 |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Number of mounting holes | 9 |
| Motherboard chipset family | Intel |
| Component for | PC |
| Audio chip | Realtek ALC4080 |
| EAN | 4719072896676 |
| Warranty | 1 year |
| Source: Icecat.biz | |

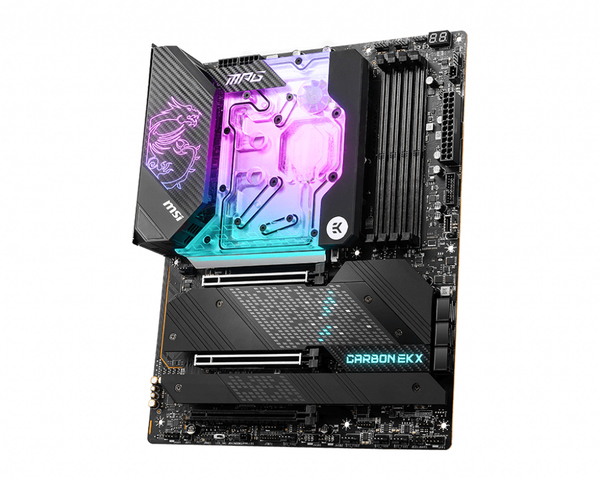

EK CUSTOM-DESIGNED CPU + VRM WATER COOLING
Sustain the high performing for 12th gen Intel core processors, a custom-designed EK cooling solution that offers pristine cooling for both the CPU, VRM and primary M.2 section is used to prevent thermal throttling, allowing gamers to sustain heavy gaming loadings without the noisy environment. It's ready for everything!
LATEST DDR5 MEMORY
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z690 CARBON EK X is ready to deliver the world class memory performance.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
SMT DDR5 MEMORY SLOT
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.
OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
