Key Specifications
Choose one or multiple features to search for items that have the same specifications.Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
Processor socket | LGA 1200 |
Memory | |
Maximum internal memory | 64 GB |
Non-ECC | |
Supported memory clock speeds | 2133,2400,2666,2800,2933,3200 MHz |
Supported memory types | DDR4 |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 2 |
Weight & dimensions | |
Height | 70 mm |
Width | 197 mm |
Depth | 188 mm |
Networking | |
Ethernet LAN | |
Wake-on-LAN ready | |
LAN controller | Realtek RTL8111H |
Wi-Fi | |
Ethernet interface type | Gigabit Ethernet |
Internal I/O | |
USB 2.0 connectors | 1 |
CPU fan connector | |
ATX Power connector (24-pin) | |
Front panel audio connector | |
TPM connector | |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |

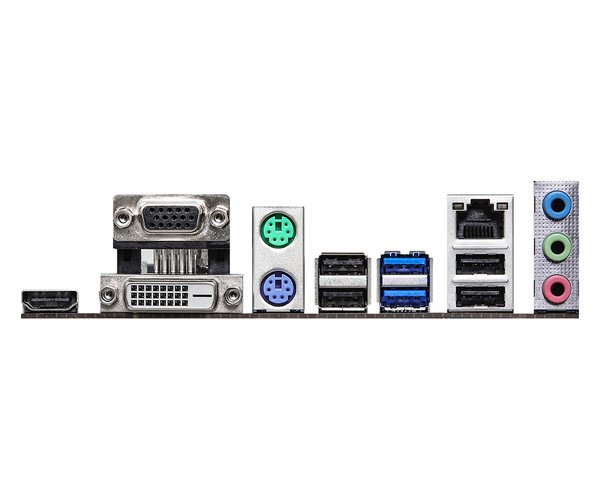

Back panel I/O ports | |
PS/2 ports quantity | 2 |
USB 2.0 ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 1 |
VGA (D-Sub) ports quantity | 1 |
DVI-D ports quantity | 1 |
HDMI ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Storage controllers | |
Number of HDDs supported | 4 |
Supported storage drive interfaces | SATA III |
Packaging content | |
Cables included | SATA |
Expansion slots | |
PCI Express x1 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 3.x) slots | 1 |
BIOS | |
BIOS memory size | 128 Mbit |
BIOS type | EFI AMI |
ACPI version | 6.0 |
Other features | |
Weight | 1 kg |
Features | |
Motherboard chipset | Intel H510 |
Motherboard form factor | Micro ATX |
Audio output channels | 7.1 channels |
Windows operating systems supported | Windows 10 x64 |
Motherboard chipset family | Intel |
Component for | PC |
EAN | 4710483935022 |
Warranty | 1 year |
Source: Icecat.biz |
PREMIUM 50A POWER CHOKE
ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Clever Access Memory
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Base Frequency Boost (BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
** BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
