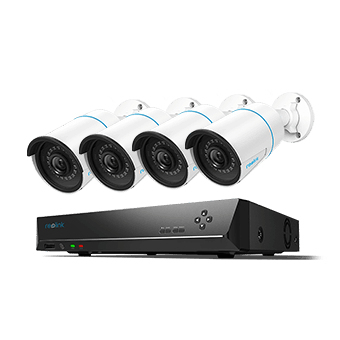

Reolink 5MP PoE Kit 4 x RLC-510A + 1 x 2TB, 8CH NVR

Manufacturer: REOLINK
ID: RLK8-510B4-A
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Technical details
Video compression formatsH.264,H.265
Reset buttoncheckmark
Hard drive
Device typeHDD
Weight & dimensions
Camera width18.6 cm
Camera depth18.6 cm
Camera height6.7 cm
Camera weight425 g
Recorder width26 cm
Recorder depth23 cm
Recorder height4.1 cm
Recorder weight1.2 kg
Energy management
Power over Ethernet (PoE)checkmark
DC output voltage48
DC output current2 A
Power source typeDC
Operational conditions
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-10 - 55 °C
Networking
Ethernet LANcheckmark
Camera
Viewing angle, horizontal80°
Viewing angle, vertical42°
Colourcheckmark
Megapixel (approx.)5 MP
Built-in microphonecheckmark
Camera resolution2560 x 1920 pixels
Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Connectivity technologyWired
LED typeIR
Camera includedcheckmark
Placement supportedIndoor/outdoor
Maximum aperture number2
Number of illumination LEDs18
International Protection (IP) codeIP66
Night vision distance30 m
Surveillance camera form factorBullet
Number of cameras4
Camera interfaceRJ-45
Recorder
Drive capacity2000 GB
Supported network protocolsHTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Channels quantity8 channels
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports9
DC-in jackcheckmark
VGA (D-Sub) ports quantity1
eSATA ports quantity1
Total storage capacity2000 GB
Number of HDDs installed1
Card reader integratedcross
HDMI ports quantity1
Maximum HDD capacity12000 GB
Playback resolutions supported3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
Storage media typeHDD
Line outputs (RCA)1
Recorder includedcheckmark
EAN6972489771273
Source: Icecat.biz

24/7 Surveillance, Made Smart
Keep an eye on your home or business in a more intelligent way with this video surveillance system. Have all-day videos and only be alerted when there is person or vehicle. Never miss a true threat and never worry about unnecessary alarms.

More Than 5MP Super HD
With the high resolution of 2560x1920, the 5MP security cameras in the kit capture clear and sharp images. More than that, the cams shot videos at remarkable 30 frames per second, ensuring you get buttery-smooth videos without being freezing or jerky.

Keep Guard at Night
With 18 infrared LEDs in each cam, this system captures videos clearly in the dark within the range of up to 100ft, protecting your home and business with 24-hour vigilance.

Easy Setup with PoE Technology
This bullet security camera system features PoE (Power over Ethernet) tech, with only one cable connecting each IP camera to the NVR for both power supply and video signal transmission. A real plug and play security system!

Unfailing 24/7 Recording
With the 2TB HDD and the storage capacity of up to 12TB, the PoE video surveillance kit supports all cameras to record continuously at the same time. You will have all-day video without missing a beat.

Access Your Camera, Anywhere and Anytime
Stay connected with your home or business on the go. See live streaming, replay key moments or check on motion alerts with just a few clicks on Reolink App or Client.

Work with Various Reolink IP Cameras
This security camera system can be expanded up to 8-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 8MP, 5MP, or 4MP – to cover every corner in your home, store or factory.

IP66 Waterproof. Certified.
The rugged housing and body make these security IP cameras waterproof. They work perfectly both inside and outside your house, in any harsh weather conditions.
