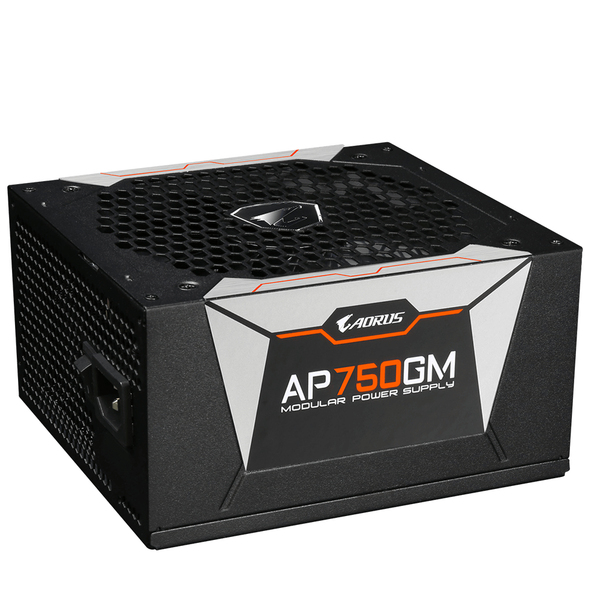

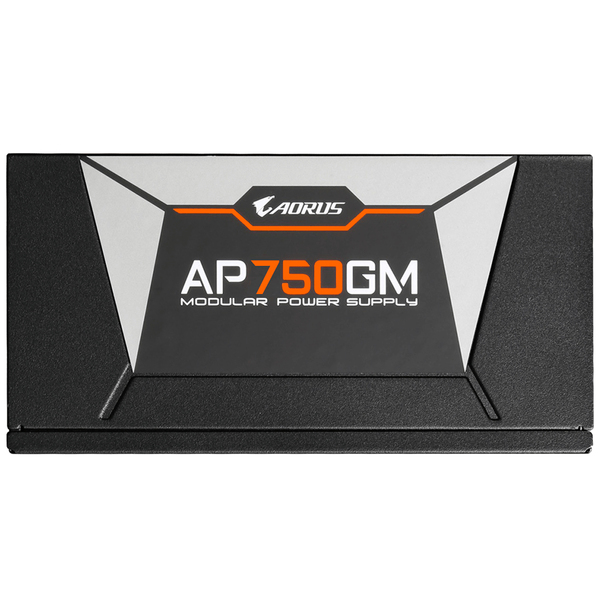

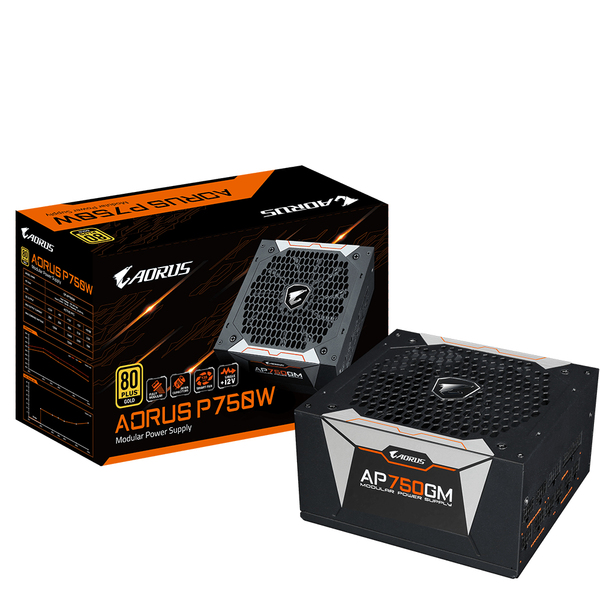

Gigabyte AP750GM 750W - Power supply, 80 Plus Gold

Manufacturer: GIGABYTE
ID: GP-AP750GM-EU
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Floppy disk drive connectorcheckmark
PCI Express connectorcheckmark
Motherboard power connector20+4 pin ATX
Floppy drive power connector2
Number of SATA power connectors6
Peripheral (Molex) power connectors (4-pin)6
EPS power connector (8-pin)checkmark
ATX power connector (20+4 pin)checkmark
CPU power connector (4+4 pin)checkmark
PCI Express power connectors (6+2 pin)6
Cabling typeFully-Modular
Motherboard power cable length65 cm
SATA power cable length450,550,650,750 mm
Weight & dimensions
Height86 mm
Width150 mm
Depth160 mm
Energy management
Input current10 A
Nominal power750 W
Efficiency90%
Hold time16 ms
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power factor0.9
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)120 W
Combined power (+12V)744 W
Combined power (+5V)120 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)62 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
AC input frequency47 - 63 Hz
AC input voltage100 - 240 V
Total power750 W
Power Good signal delay range100 - 150 ms
Certificates
80 PLUS certification80 PLUS Gold
Design
Product colourBlack
Number of fans1 fan(s)
On/off switchcheckmark
Fan diameter13.5 cm
Fan locationTop
Performance
Mean time between failures (MTBF)100000 h
PurposePC
ATX version2.31
Power supply unit (PSU) form factorATX
Logistics data
Harmonized System (HS) code84733020
EAN4719331551025

High Quality 100% Japanese Capacitors
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

135mm Smart Fan
Fan speed will be adjusted according to the system load. And the fan will stop when the system is idle or under low load (less than 20% load). The 2 ball bearing structure provides longer life time.

2 ball bearing is the most durable fan construction with a durability of over 50,000 hours. The life of the 2 ball bearing is more than 5 years.

80 Plus Gold Certified
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

Protection
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
