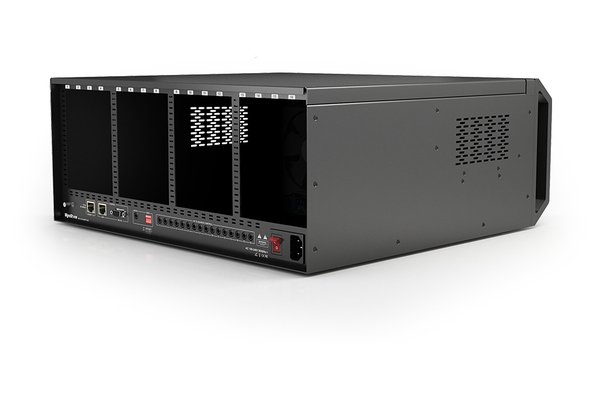

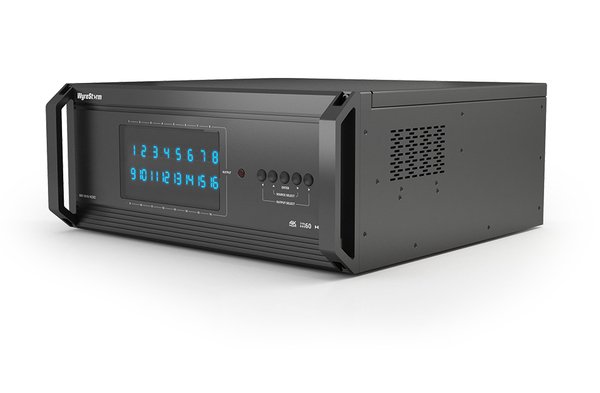

Wyrestorm MX-1616-H2XC - 16 Slot 18Gbps 4K HDR Modular Matrix Switch Chassis
Manufacturer: WYRESTORM
ID: MX-1616-H2XC
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| S/PDIF out port |  |
| Video port type | HDMI |
| Digital audio coaxial out | 16 |
| S/PDIF in port | |
| HDMI ports quantity | 16 |
| Digital audio coaxial in | 16 |
| Number of HDMI outputs | 16 |
| RJ-45 output ports | 1 |
| Weight & dimensions | |
| Weight | 15.6 kg |
| Height | 176 mm |
| Width | 440 mm |
| Depth | 382.7 mm |
| Energy management | |
| Power consumption (typical) | 200 W |
| AC adapter frequency | 50/60 Hz |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | CE, FCC |
| Packaging content | |
| Remote control included | |
| Quick start guide | |
| Features | |
| Maximum resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Heat dissipation | 682 BTU/h |
| Audio decoders | DTS 5.1, DTS:X, Dolby Atmos, Dolby Digital |
| Bandwidth | 18 Gbit/s |
| Rack capacity | 4U |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Supported video modes | 1080p, 2160p |
| HDCP | |
| HDCP version | 2.2 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Sustainability | |
| Sustainability certificates | RoHS |
| EAN | 814303013953 |
| Source: Icecat.biz | |
16-SLOT UHD-READY MATRIX
This 16x16 custom matrix chassis is built to your custom specification from a range of TX-H2X transmission cards, allowing hundreds of variations at your disposal.
18GBPS OVER COPPER CABLE
The optional TX-H2X-VLC transmission card now allows the powerful ability to pass the full bandwidth required of HDMI 2.0 over long distances via HDBaseT™ by utilizing Variable Compression technology over a single Cat6 and higher cable.
UP TO 48 AUDIO SOURCE INPUTS
The integrated digital audio matrix can manage up to 48 multi-channel sources, which is made up of audio from the connected HDMI or remote HDBaseT™ sources, separate audio-only devices via S/PDIF and multi-channel ARC from HDBaseT™ zones.
THE CENTER OF YOUR INFRASTRUCTURE
The optional TX-H2X-HDBT input card allows source devices to be de-centralized and sent remotely back to the head-end. A large switching eco-system can be created using WyreStorm's huge range of HDBaseT™ transmission devices.
This 16x16 custom matrix chassis is built to your custom specification from a range of TX-H2X transmission cards, allowing hundreds of variations at your disposal.
18GBPS OVER COPPER CABLE
The optional TX-H2X-VLC transmission card now allows the powerful ability to pass the full bandwidth required of HDMI 2.0 over long distances via HDBaseT™ by utilizing Variable Compression technology over a single Cat6 and higher cable.
UP TO 48 AUDIO SOURCE INPUTS
The integrated digital audio matrix can manage up to 48 multi-channel sources, which is made up of audio from the connected HDMI or remote HDBaseT™ sources, separate audio-only devices via S/PDIF and multi-channel ARC from HDBaseT™ zones.
THE CENTER OF YOUR INFRASTRUCTURE
The optional TX-H2X-HDBT input card allows source devices to be de-centralized and sent remotely back to the head-end. A large switching eco-system can be created using WyreStorm's huge range of HDBaseT™ transmission devices.
