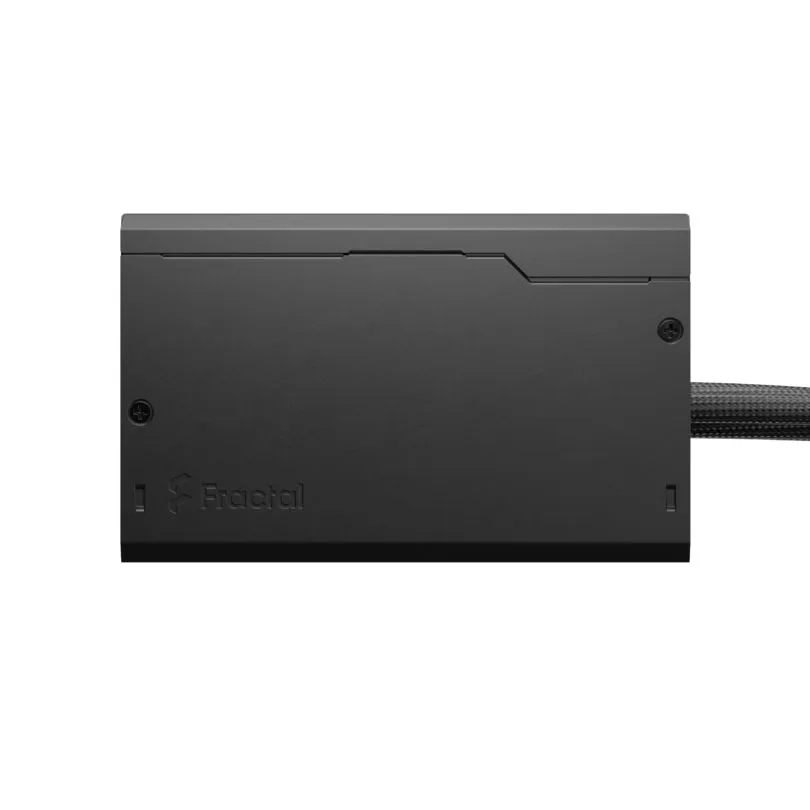

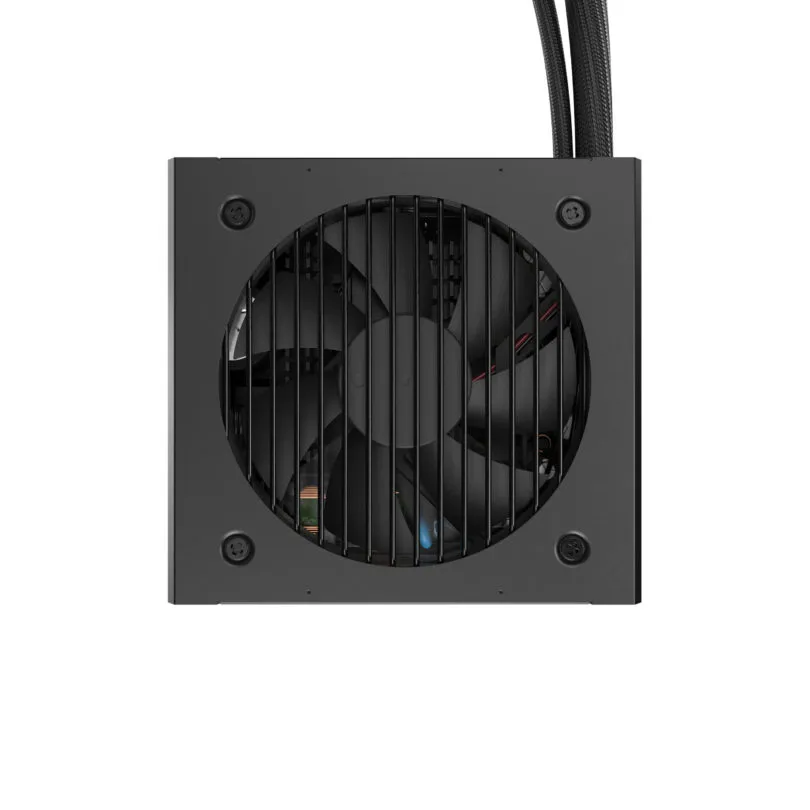

Fractal Design Anode 750W - Power supply, 80 Plus Bronze
Manufacturer: FRACTAL DESIGN
ID: FD-P-AA1B-750-EU
13190€
Show VAT 0%
Show VAT 24%
Multitronic warehouse store
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Mariehamn
iTronic Vaasa
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) |  |
| ATX power connector (20+4 pin) | |
| CPU power connector (4+4 pin) | |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Semi-Modular |
| SATA power cable length | 150,400,650 mm |
| Peripheral (Molex) power cable length | 150,400 mm |
| Weight & dimensions | |
| Weight | 2 kg |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 140 mm |
| Energy management | |
| Nominal power | 750 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |
| Packaging data | |
| Package weight | 2.4 kg |
| Package depth | 285 mm |
| Package height | 110 mm |
| Package width | 212 mm |
| Package type | Box |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
| Packaging content | |
| Cables included | AC, CPU, Peripheral (Molex), SATA |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Built-in display |  |
| Performance | |
| Certification | CB, TUV, cTUVus, FCC, CE, RCM, CCC, BSMI, UKCA, EAC |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| ATX version | 2.52 |
| Power supply unit (PSU) form factor | ATX |
| EAN | 7340172703785 |
| Warranty | 1 year |
Solid and sturdy, the Anode Bronze is a strong contender for any discerning builder. Semi-modular cables offer easier installation and less clutter, while the 5-year warranty ensures value over time.
80 PLUS Bronze efficiency rating
Solid, reliable and affordable.
Neat and tidy
Semi-modular cables for easier installation and less clutter.
DC-DC and ATX 2.52
Efficient DC-DC design and modern ATX 2.52 standard offer tight timing limits.
