Flatscreen Toolbar Mount
Manufacturer: NEWSTAR
ID: FPMA-DTBW200
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
| Weight & dimensions | |
| Weight | 1.02 kg |
| Depth | 120 mm |
| Packaging data | |
| Package weight | 900 g |
| Package depth | 120 mm |
| Package height | 160 mm |
| Package width | 120 mm |
| Ergonomics | |
| Tilt angle range | 0 - 180° |
| Angle of rotation | 270° |
| Rotating |  |
| Swivelling | |
| Tilt adjustment | |
| Swivel angle | 180° |
| Depth adjustment range | 0 - 120 mm |
| Other features | |
| Mounting interface | VESA 75x75 mm |
| Design | |
| Product colour | Grey |
| Housing material | Steel |
| Mounting | |
| Maximum weight capacity | 10 kg |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Mounting type | Desk |
| Minimum screen size | 25.4 cm (10") |
| Maximum screen size | 76.2 cm (30") |
| Number of displays supported | 1 |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Logistics data | |
| Products per pallet (EU) | 384 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case height | 180 mm |
| Master (outer) case width | 460 mm |
| Master (outer) case gross weight | 13 kg |
| Master (outer) case length | 360 mm |
| Products per master (outer) case | 12 pc(s) |
| Master (outer) case net weight | 12.3 kg |
| Harmonized System (HS) code | 7326909890 |
| EAN | 8717371442286 |
| Warranty | 5 years |
| Source: Icecat.biz | |

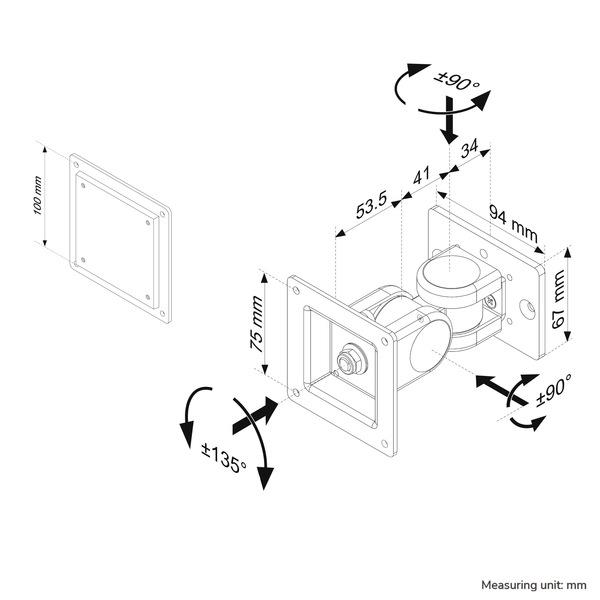

The Neomounts FPMA-DTBW200 monitor bracket is suitable for 10-30" screens with a maximum capacity of 10 kg and made for installation on the FPMA-DTB100, FPMA-DTB200 and FPMA-WTB100 toolbar rails. The full motion monitor bracket is 12 cm deep and can both tilt, swivel and rotate, enabling optimal use of the screen's functionality.
The FPMA-DTBW200 monitor bracket is suitable for screens with a VESA hole pattern of 75x75 and 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available.
The FPMA-DTBW200 monitor bracket is suitable for screens with a VESA hole pattern of 75x75 and 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available.
