This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Weight & dimensions | |
| Weight | 1.19 kg |
| Cable length | 1 m |
| Tube diameter | 1.24 cm |
| Radiator width | 27.7 cm |
| Radiator depth | 3.8 cm |
| Radiator height | 12 cm |
| Tube length | 45 cm |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Tube inner diameter | 6 mm |
| Pump width | 9.8 cm |
| Pump depth | 5.3 cm |
| Pump height | 7.8 cm |
| Energy management | |
| Fan voltage | 12 V |
| Fan current | 0.08 A |
| Thermal Design Power (TDP) | 200 W |
| Pump power consumption | 0.5 W |
| VRM fan power consumption | 2.7 W |
| Packaging content | |
| Mounting kit | ![]() |
| Screws included | ![]() |
| Thermal pad included | ![]() |
| CPU bracket(s) | ![]() |
| RGB controller included | ![]() |
| Other features | |
| Country of origin | China |
| Built-in display | ![]() |
| Thermal grease | ![]() |
| Design | |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Base plate material | Copper |
| Water block material | Copper |
| Fan connector | 4-pin |
| Radiator material | Aluminium |
| Illumination LED | ![]() |
| Fan controller | ![]() |
| Performance | |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Suitable location | Processor |
| Maximum airflow | 56.3 cfm |
| Minimum air pressure | 0.1 mmH2O |
| Maximum air pressure | 2.2 mmH2O |
| Pump motor speed (max) | 2000 RPM |
| Pump motor speed | 800 RPM |
| Pump motor speed (min) | 800 RPM |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 200 RPM |
| Rotational speed (min) | 200 RPM |
| Bearing type | Fluid Dynamic Bearing |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 24.5 dB |
| Pulse-width modulation (PWM) support | ![]() |
| Fan static pressure | 2.2 mmH2O |
| Pump's mean time to failure (MTTF) | 50000 h |
| Fan's mean time to failure (MTTF) | 60000 h |
| VRM fan speed (max) | 3000 RPM |
| VRM fan speed (min) | 1000 RPM |
| Fan 2 rotational speed (max) | 1800 RPM |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| EAN | 4895213701907 |
| Warranty | 1 year |

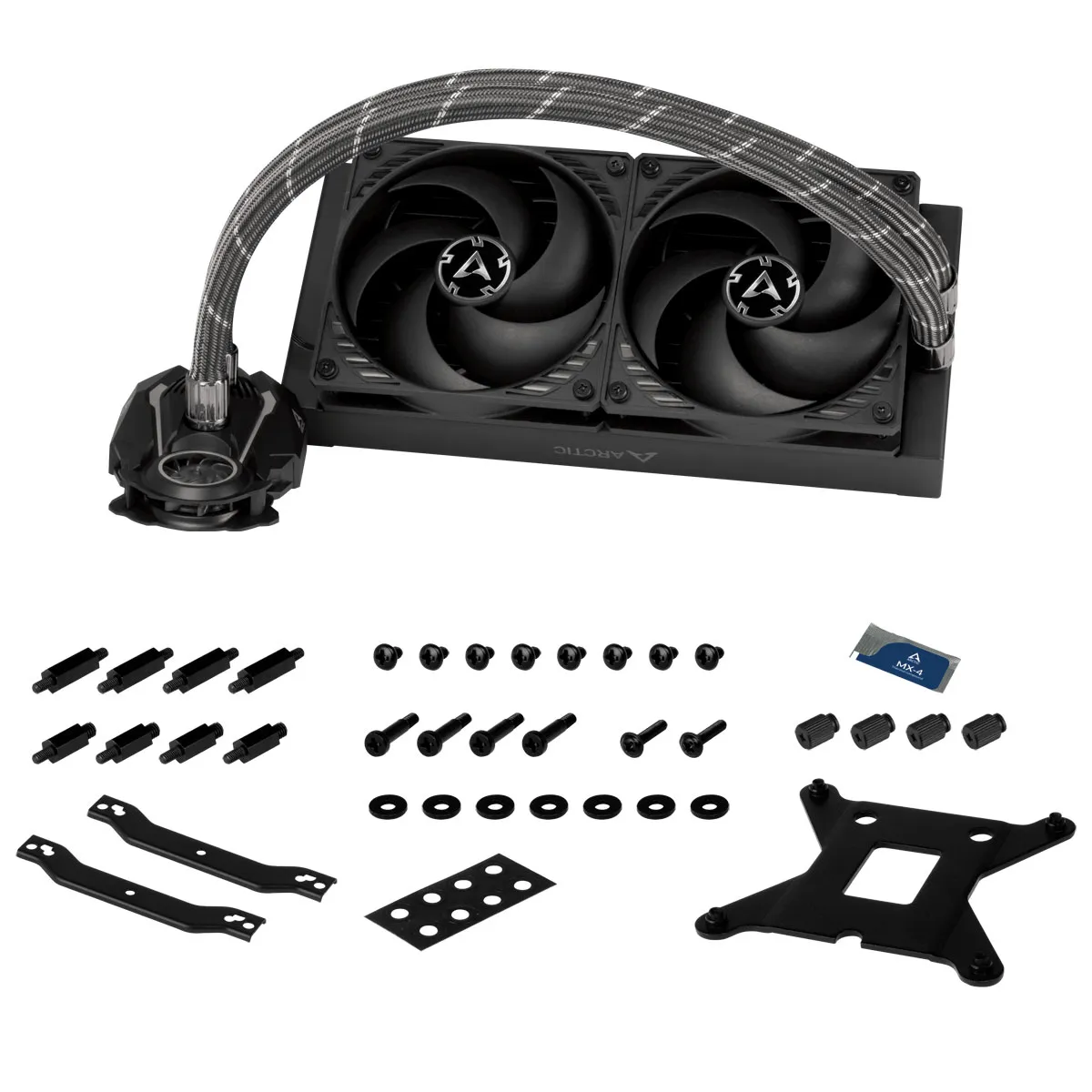

The ARCTIC Liquid Freezer II 240 is an all-in-one CPU liquid cooling system engineered for high thermal performance and low operational noise. It integrates a proprietary PWM-controlled pump with a 38 mm thick aluminum radiator, which provides an increased surface area for heat dissipation. The unit includes a dedicated 40 mm fan within the pump housing to supply active cooling to the motherboard's voltage regulator modules (VRMs). This design addresses a common thermal challenge in systems with high-core-count processors or significant overclocking.
Heat transfer from the processor is managed by a copper cold plate, connected to the radiator via 450 mm EPDM tubes. These tubes feature an integrated cable management system, concealing the fan cables within the sleeving for a clean internal layout. The two included 120 mm fans utilize Fluid Dynamic Bearings and are PWM-controlled to balance airflow and noise levels based on system load. Broad socket support ensures compatibility with a wide range of contemporary Intel and AMD platforms in a non-illuminated package.
Key Features:- Supports Intel LGA 1200 / 115X / 2066 / 2011-v3 and AMD AM5 / AM4 sockets
- Includes two 120 mm PWM-controlled fans with Fluid Dynamic Bearings
- Offers a fan speed range of 200 to 1800 RPM
- Features a 38 mm thick aluminum radiator for increased cooling surface area
- Equipped with an integrated 40 mm fan for motherboard VRM cooling
- Utilizes a PWM-controlled pump with an 800 to 2000 RPM operational range
- Provides 450 mm sleeved EPDM tubes with internal fan cable management
- Built with a copper cold plate for effective heat transfer
