| Technical details | |
| Number of QPI links | Single |
| Halogen free |  |
| Thermal Design Power (TDP) | 20 W |
| Product type | 13 |
| Status | Launched |
| Bracket height | Low Profile and Full Height |
| Launch date | 2014-05-20T00:00:00 |

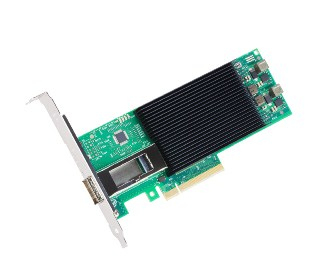

| Product name | Intel Ethernet Converged Network Adapter X520-QDA1 |
| Born on date | Q2'14 |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | SRV |
| Ports & interfaces | |
| Interface | Ethernet/Fiber |
| Internal |  |
| Connectivity technology | Wired |
| Host interface | PCI-E |
| Fiber ports quantity | 1 |
| Fiber optic connector | QSFP+ |
| Weight & dimensions | |
| Width | 68.6 mm |
| Depth | 169.2 mm |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Energy management | |
| Power consumption (typical) | 16.7 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Protocols | |
| Supported network protocols | Tx/Rx IP, SCTP, TCP, UDP |
| Networking | |
| Ethernet LAN | |
| Networking standards | IEEE 802.1as,IEEE 802.3 |
| Flow control support | |
| LAN controller | Intel 82599ES |
| Jumbo frames support | |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Certificates | |
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| RoHS compliance | |
| Antenna | |
| Quality of Service (QoS) support | |
| Other features | |
| Interface type | PCIe v3.0 (8.0 GT/s) |
| Cable type | QSFP+ Direct Attach Twin Axial Cabling up to 10m |
| Intel Trusted Execution Technology | |
| Embedded options available | |
| Message signal interrupt | |
| Low halogen options available | |
| Intel Virtualization Technology for Connectivity (VT-c) | |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
| Design | |
| LED indicators | Activity, Link |
| Product colour | Black, green |
| Product family | Intel 10 Gigabit server adapter |
| Product series | Intel Converged X520 |
| Performance | |
| Plug and Play | |
| Thermal power | 20 W |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | |
| PCI-SIG* SR-IOV Capable | |
| On-chip QoS and Traffic Management | |
| Intel Flexible Port Partitioning | |
| Speed & slot width | 8.0 GT/s, x 8 Lane |
| Intelligent Offloads | |
| iWARP/RDMA | |
| Fiber Channel over Ethernet | |
| Intel Ethernet Power Management | |
| Intel Data Direct I/O Technology | |
| Receive Side Scaling (RSS) | |
| Ethernet adapter ARK ID | 68672 |
| EAN | |
| Warranty | 1 year |
| Source: Icecat.biz | |
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
