This product is end of life or currently not available.
Processor | |
Processor frequency | 1199 MHz |
Graphics processor | Radeon RX 560 |
Maximum resolution | 5120 x 2880 pixels |
Parallel processing technology support | Not supported |
Maximum displays per videocard | 3 |
CUDA | ![]() |
CUDA cores | 1024 |
Graphics processor family | NVIDIA |
Memory | |
Graphics card memory type | GDDR5 |
Memory bus | 128 bit |
Memory bandwidth (max) | 6.8 GB/s |
Discrete graphics card memory | 4 GB |
Ports & interfaces | |
Interface type | PCI Express x16 |

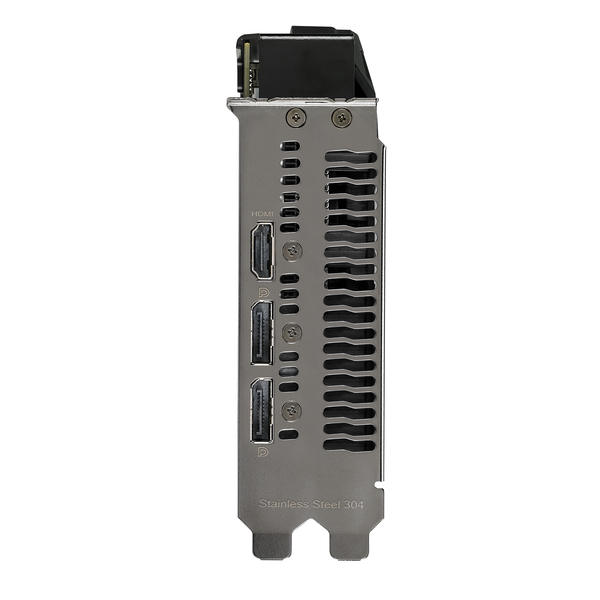

HDMI ports quantity | 1 |
HDMI version | 2.0b |
DisplayPorts quantity | 2 |
DisplayPort version | 1.4 |
Weight & dimensions | |
Weight | 660 g |
Height | 128 mm |
Width | 40 mm |
Depth | 40 mm |
Length | 242 mm |
Energy management | |
Minimum system power supply | 450 W |
Supplementary power connectors | 1x 8-pin |
Packaging data | |
Package weight | 1.13 kg |
Package depth | 220.5 mm |
Package height | 68 mm |
Package width | 368 mm |
Package type | Box |
Design | |
Number of slots | 2 |
Product colour | Black |
Number of fans | 2 fan(s) |
Cooling type | Active |
Performance | |
TV tuner integrated | ![]() |
OpenGL version | 4.5 |
Dual Link DVI | ![]() |
HDCP | ![]() |
EAN | 4711081730866 |
Warranty | 1 year |
The Sweet Spot Performance
ASUS Dual Radeon™ RX 560 comes equipped with Patented Wing-Blade Fans for max air flow with 105% more air pressure. The fans are IP5X dust-resistant for improved reliability and a longer lifespan. While exclusive Auto-Extreme Technology with Super Alloy Power II components facilitates superior stability, GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Wing-blade Fan Design
They're pretty fly
Our patented Wing-blade fan design adds drooped tips to each fan blade in order to reduce drag.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU Tweak II
Monitor, tweak, and tune
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
144-hour Validation Program
“Extensive” may be an understatement
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
