Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Weight & dimensions | |
| Weight | 1.29 kg |
| Package weight | 1.59 kg |
| Height | 160 mm |
| Width | 117 mm |
| Depth | 127 mm |
| Package depth | 173 mm |
| Package height | 162 mm |
| Package width | 219 mm |
| Radiator width | 9.2 cm |
| Radiator depth | 12.7 cm |
| Radiator height | 15.6 cm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Energy management | |
| Power consumption (typical) | 1.44 W |
| Rated current | 0.12 A |
| Maximum current | 0.12 A |
| Fan voltage | 12 V |
| Fan current | 0.12 A |
| Thermal Design Power (TDP) | 240 W |
| Rated voltage | 12 V |
| Fan power consumption | 1.44 W |
| LED voltage | 5 V |
| LED power consumption (fan) | 4.5 W |
| Packaging data | |
| Quantity | 1 |
| Packaging content | |
| Package type | Box |
| Mounting kit |  |
| Screws included | |
| CPU bracket(s) | |
| Other features | |
| Power | 1.44 W |
| Current | 0.12 A |
| Design | |
| Product colour | White |
| Number of fans | 1 fan(s) |
| Illumination colour | Multi |
| Base plate material | Copper |
| Fan connector | 4-pin |
| Radiator material | Aluminum |
| Number of heat pipes | 5 |
| Illumination LED | |
| Fins material | Aluminum |
| Number of fan blades | 9 |
| LED connector type | 3-pin |
| Performance | |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Suitable location | Processor |
| Maximum airflow | 68.99 cfm |
| Minimum air pressure | 1.2 mmH2O |
| Maximum air pressure | 2.19 mmH2O |
| Noise level (low speed) | 25.9 dB |
| Noise level (high speed) | 28 dB |
| Fan speed (max) | 1850 RPM |
| Fan speed (min) | 500 RPM |
| Rotational speed (max) | 1850 RPM |
| Rotational speed (min) | 500 RPM |
| Bearing type | Fluid Dynamic Bearing |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 28 dB |
| Pulse-width modulation (PWM) support | |
| Fan static pressure | 2.19 mmH2O |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Features | |
| Product type | CPU Cooler |
| EAN | 6933412728276 |

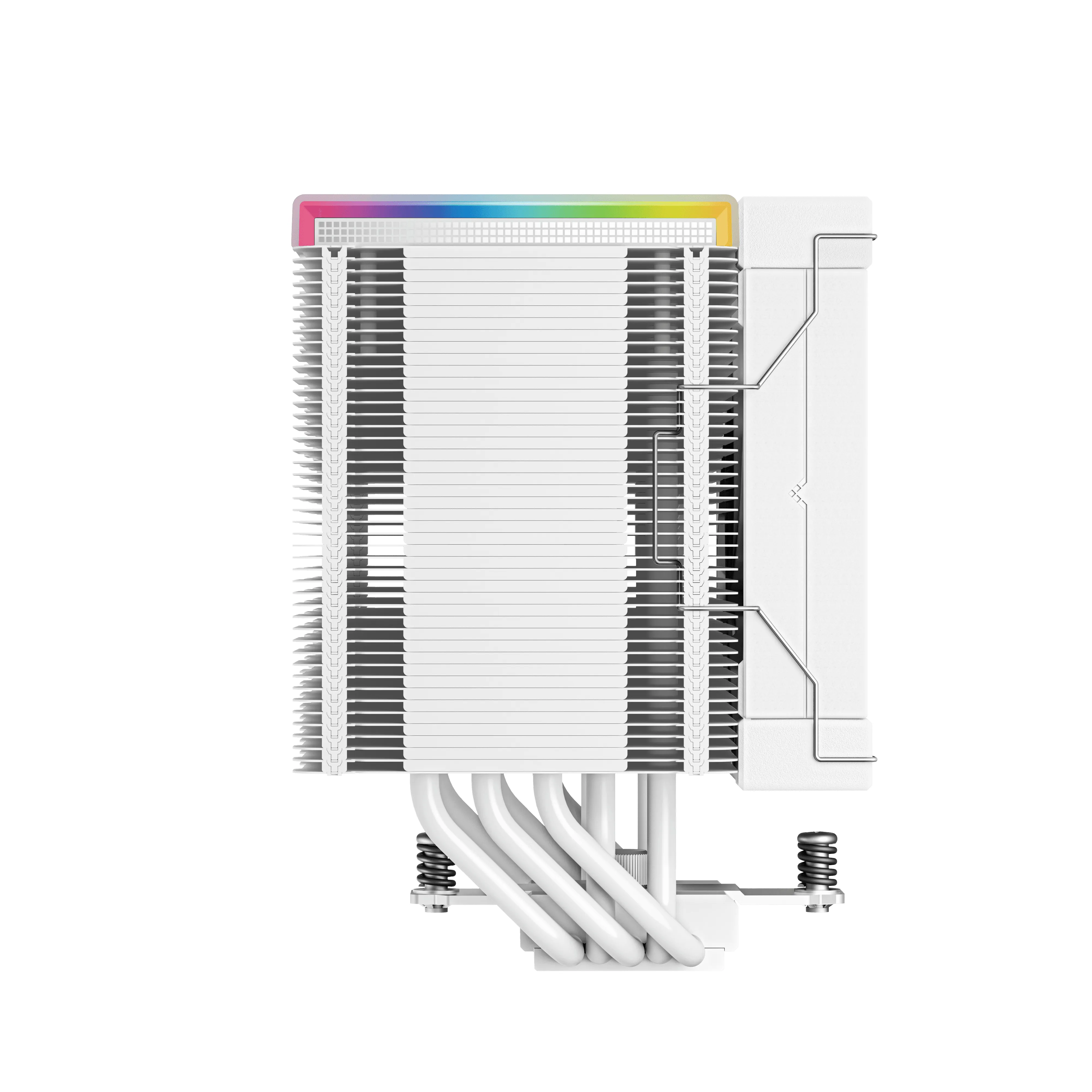

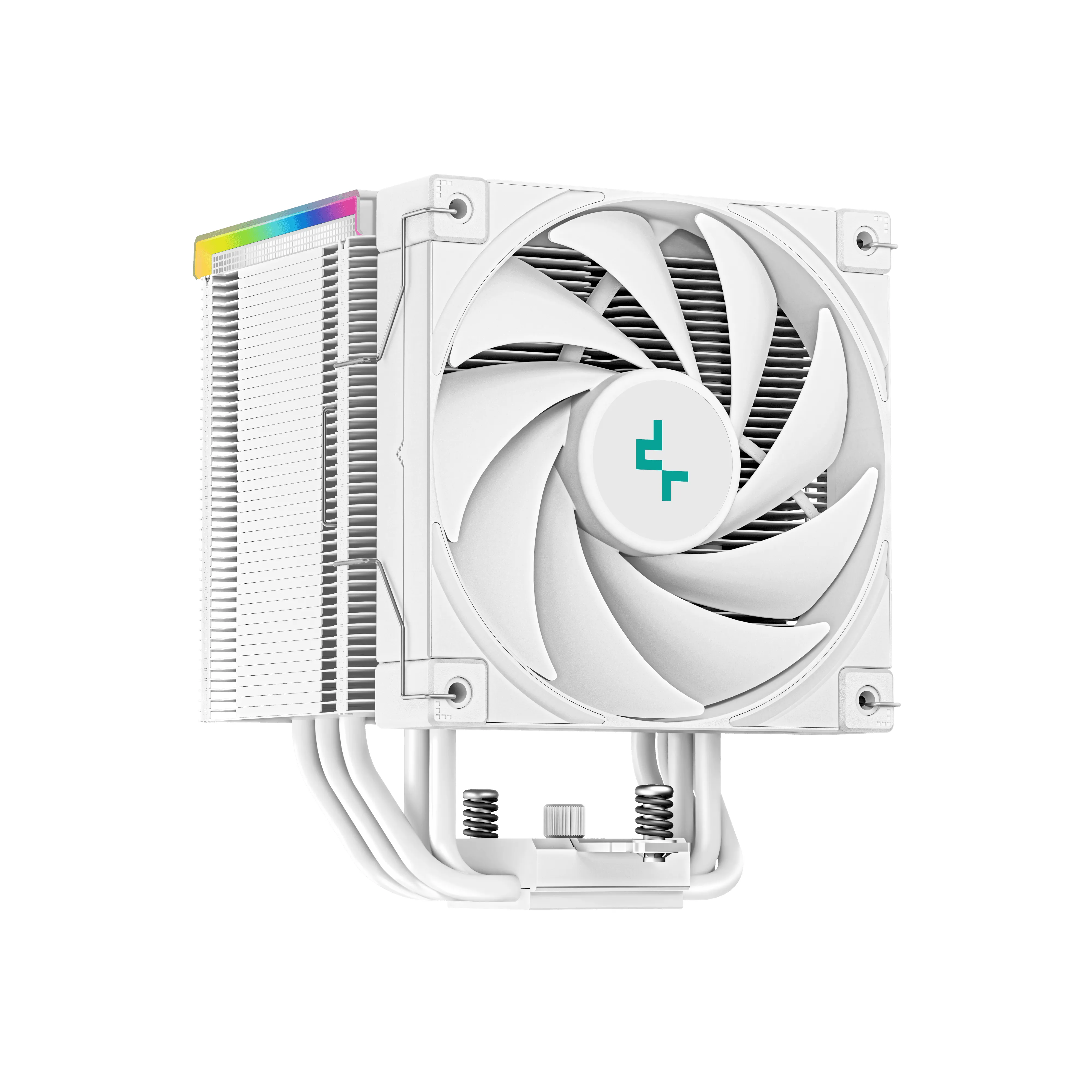

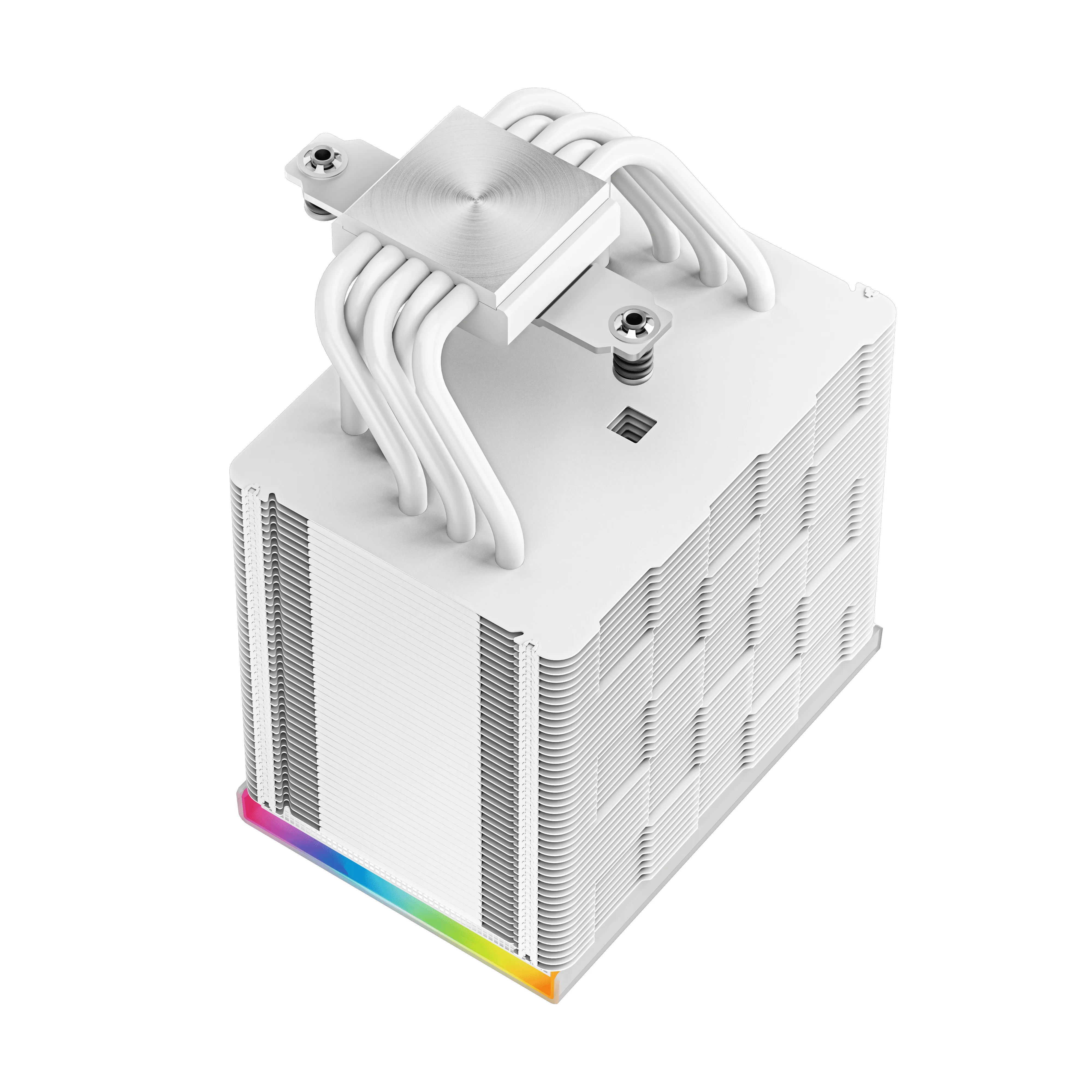

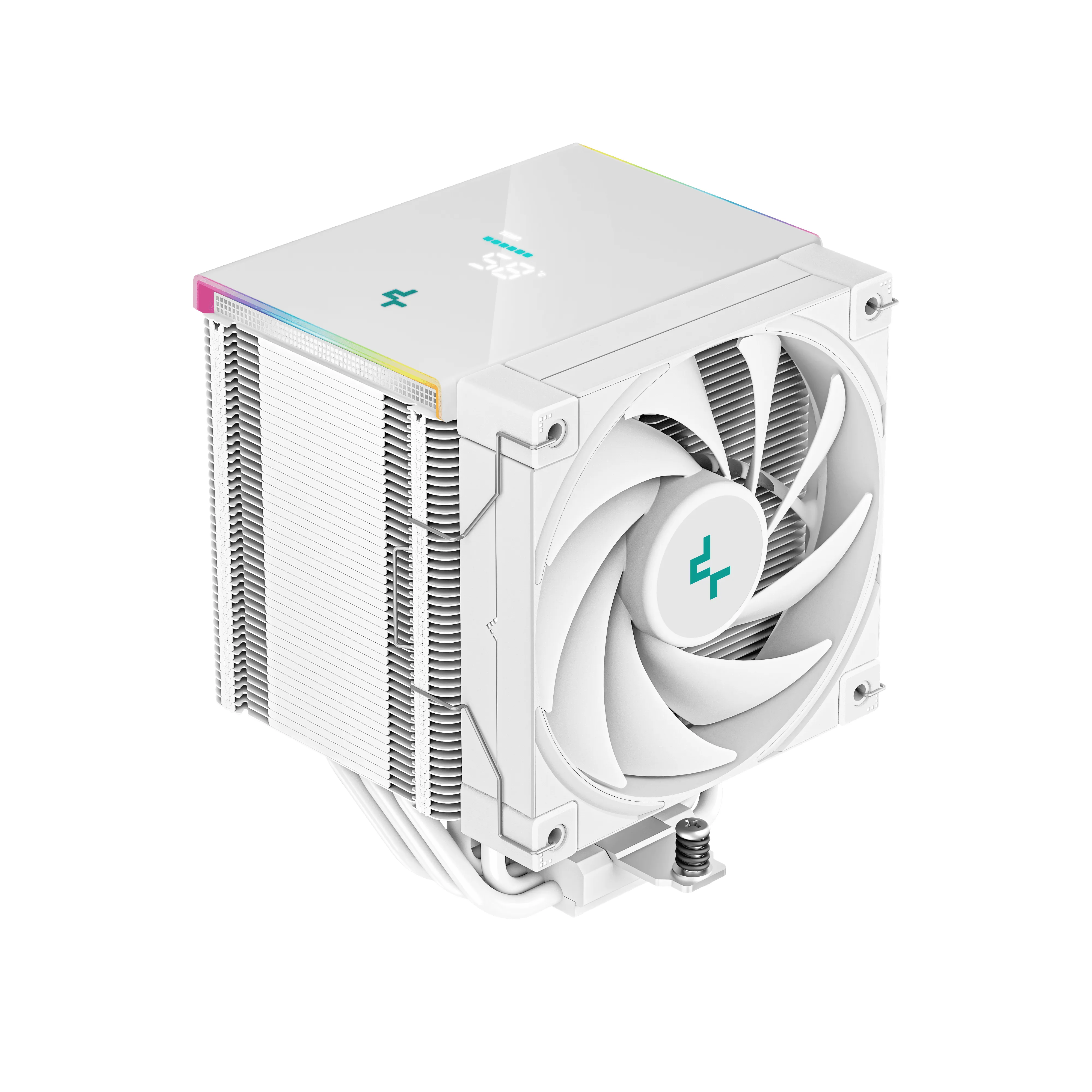

The DEEPCOOL AK500 DIGITAL WH is an air cooling solution designed to manage thermal loads for modern high-performance processors, rated for up to 240W TDP. This single-tower cooler employs a copper base plate coupled with five 6mm copper heat pipes, efficiently transferring thermal energy to the dense aluminum fin array. The heatsink is strategically offset to maintain clearance over memory modules on most motherboard platforms. Overall dimensions measure 160mm high, 117mm wide, and 127mm deep, requiring assessment against case chassis limitations.

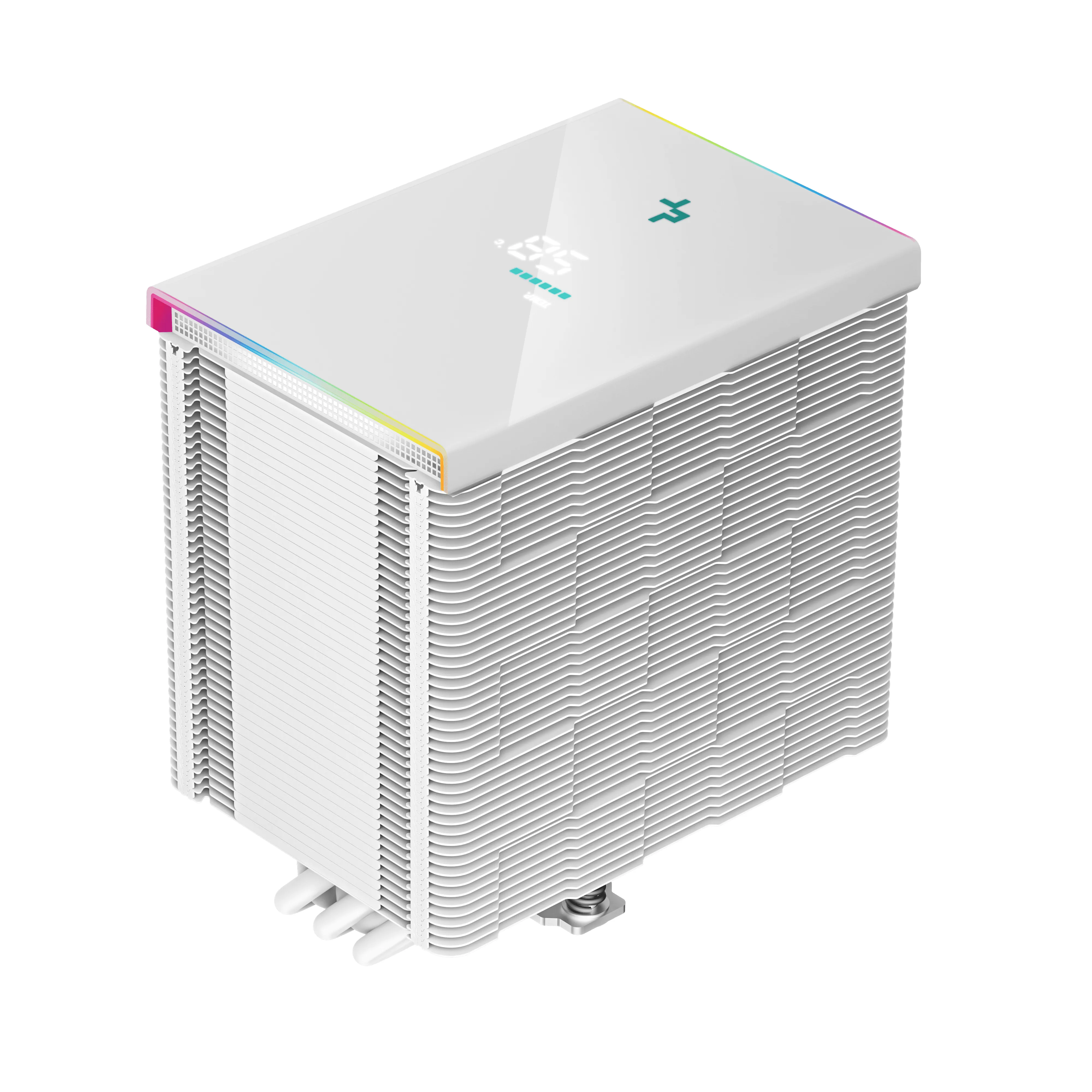

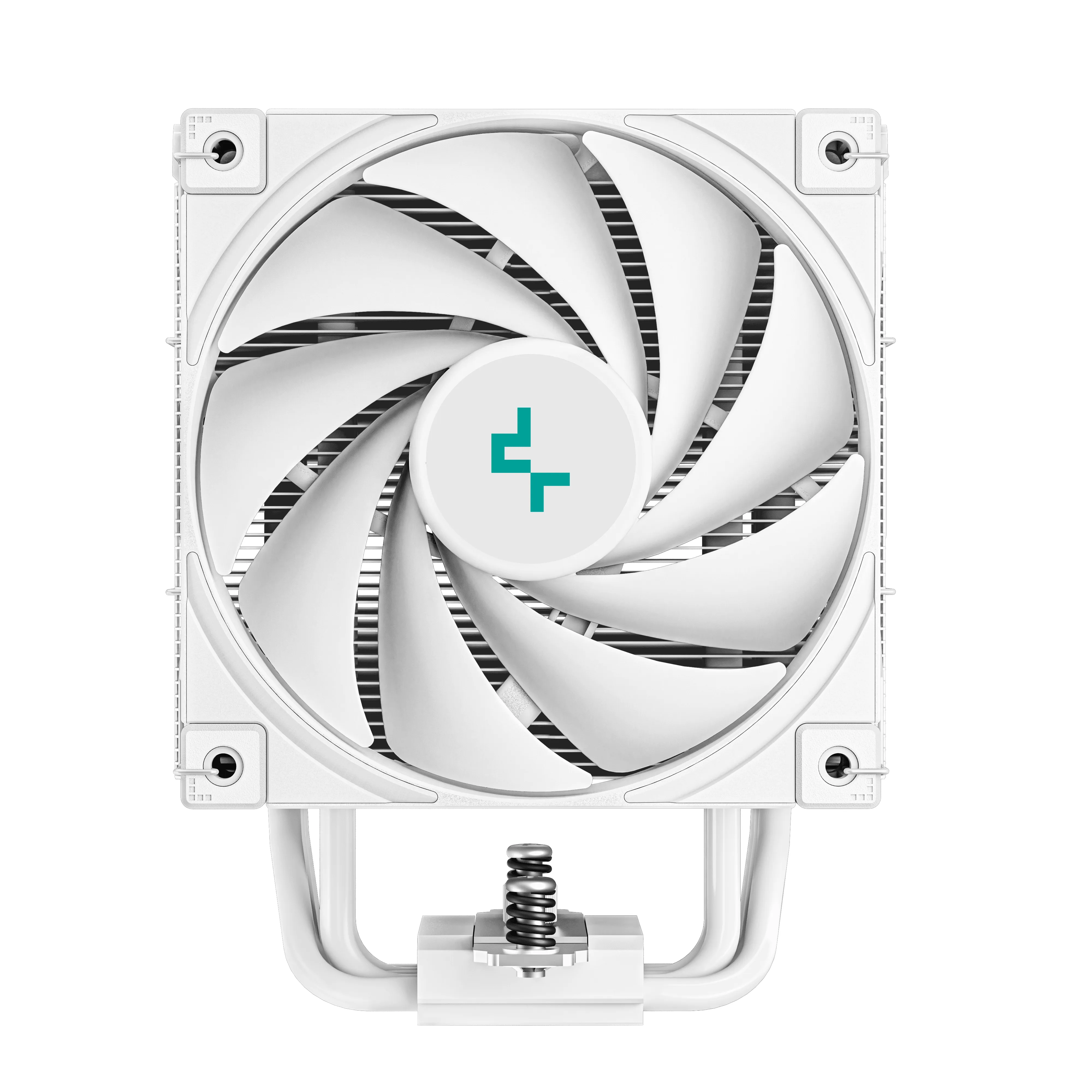

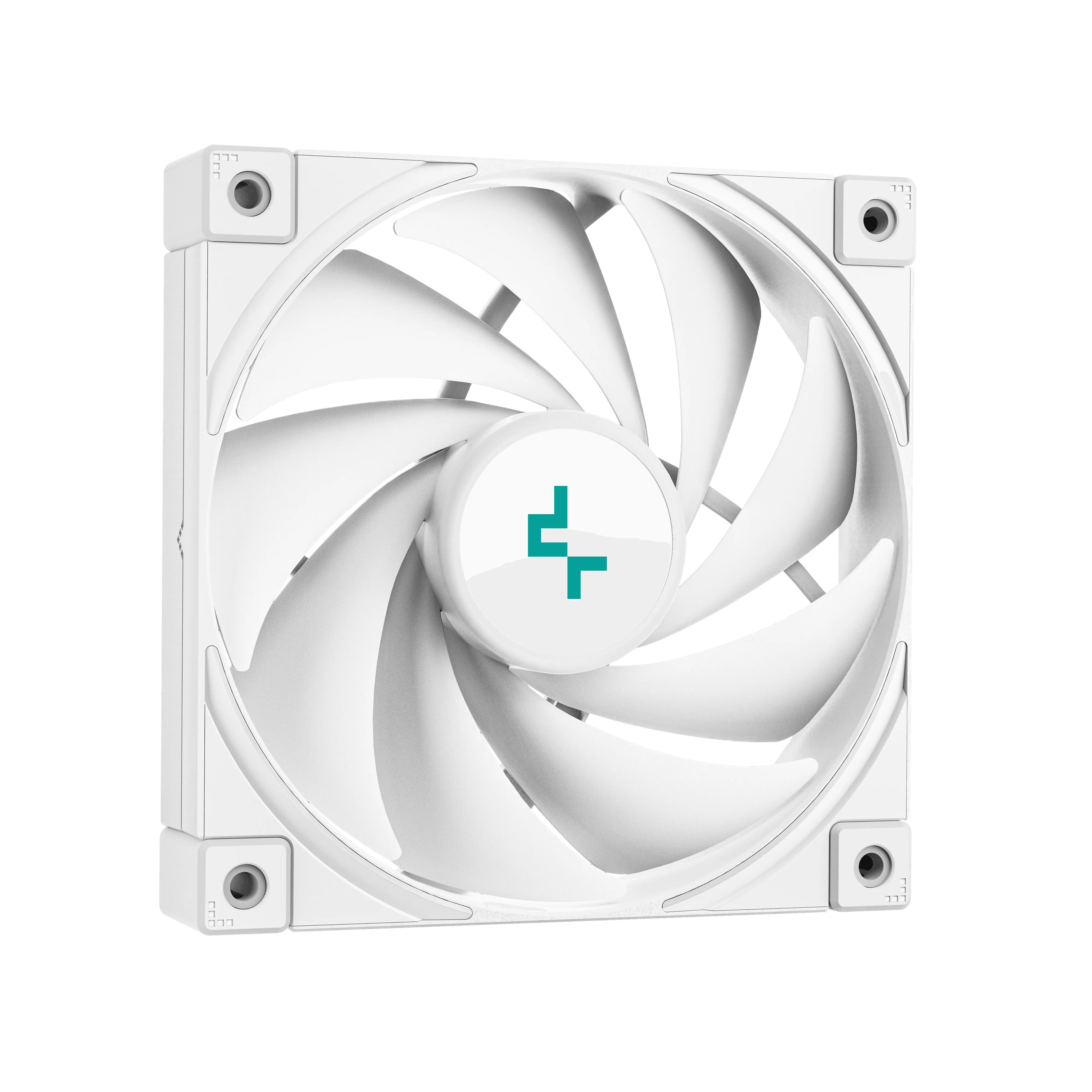

Cooling performance is delivered by a single 120mm fan utilizing a Fluid Dynamic Bearing (FDB) system, engineered for balanced airflow and quiet operation. The fan speed is dynamically controlled via a 4-pin PWM connection, offering a rotational range of 500 RPM to 1850 RPM. At peak speed, the system generates a measured maximum airflow of 68.99 CFM while maintaining a noise level of 28 dB. The unit includes a top-mounted digital display that relays real-time status metrics and integrates multi-color ARGB illumination.
Key Features:- 240W Thermal Design Power cooling capacity
- Five copper heat pipes with a 6mm diameter
- Maximum rotational speed of 1850 RPM
- Maximum static air pressure of 2.19 mmH2O
- White color finish with multi-color ARGB lighting
- Digital status display integrated into the top cover
- Supports Intel LGA 1700/1851 and AMD AM5/AM4 sockets
- Total cooler weight of 1291g

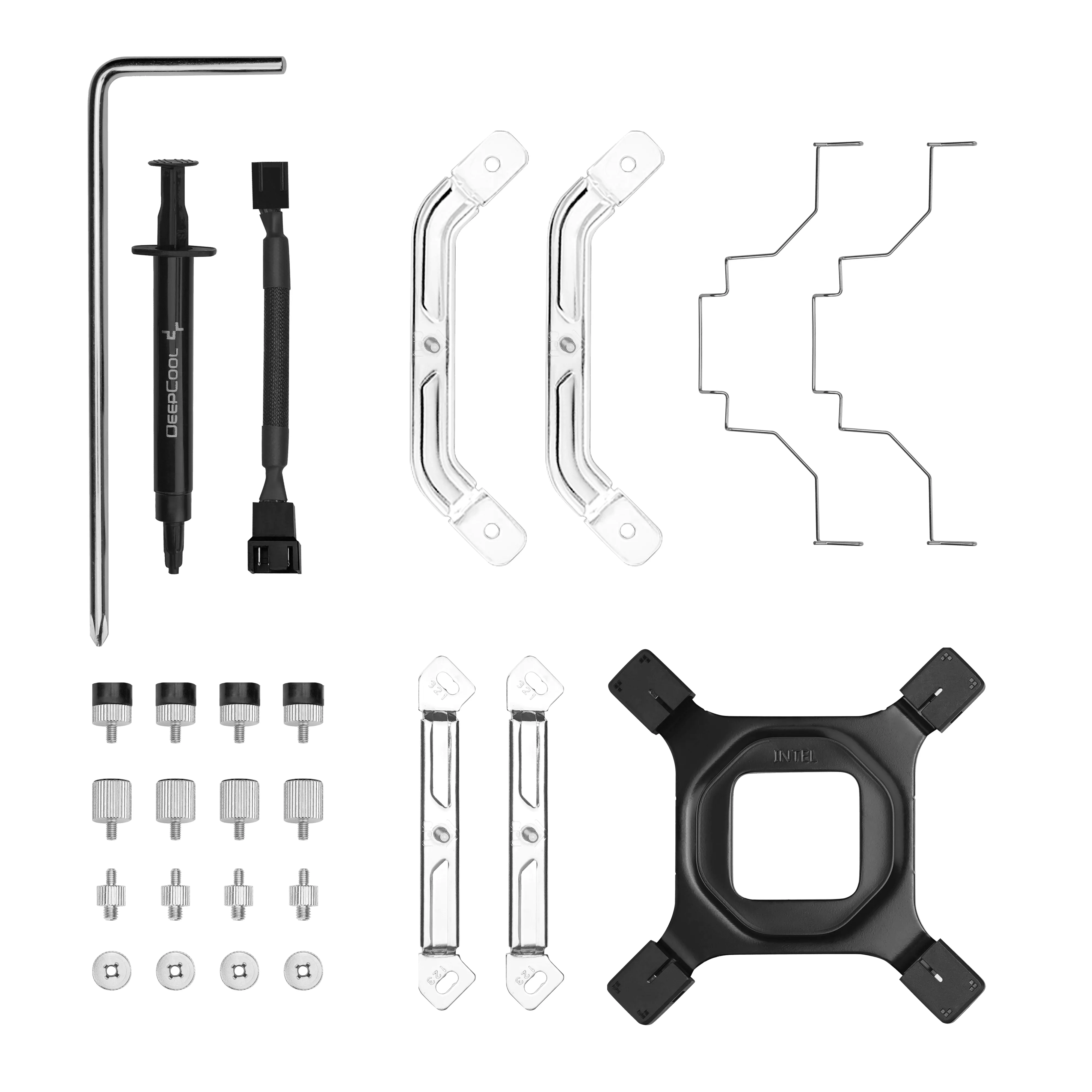

- Includes necessary mounting hardware and screws
